There are two main scenarios: machines factory‑configured for 220V, and original 380V three‑phase machines converted to 220V.
Never connect a 380V spindle directly to 220V mains, otherwise the motor will burn out.
Option 1: New Machine Ordered for 220V (Best Solution)
For small‑size engraving machines (6090 / 1212 / 1325) with 1.5‑2.2 kW water‑cooled spindles. Use a single‑phase‑input three‑phase‑output VFD (Variable‑Frequency Drive).
Spindle motor must be 3‑phase 220V type.
Wiring: Connect household live wire and neutral wire to VFD terminals R and T. Connect VFD U/V/W terminals to spindle motor.
Drivers, control system, water pump and computer run directly on standard 220V mains.
Circuit requirement: 4 mm² copper cable, independent circuit breaker and reliable protective earth. A 2.2 kW unit may draw 15‑18A, do not use ordinary 10A household sockets.
Option 2: Original 380V Three‑Phase Machine with Only 220V Single‑Phase Supply
⚠️ Do not drive a native 3‑phase 380V spindle with a regular single‑phase‑input three‑phase‑output VFD. Insufficient output voltage causes low torque, overheating and spindle damage.
Three practical solutions sorted by priority:
Solution 1: Replace Spindle + VFD (Most Stable for Home / Workshop Use)
Remove the original 380V spindle motor.
Install new 3‑phase 220V water‑cooled spindle (1.5‑2.2 kW).
Fit a single‑phase‑input three‑phase‑output VFD.
No modification needed for servo / stepper drivers and control cabinet. Most stepper systems already work on 220V.
Suitable for 1325 and smaller engraving machines within 3 kW total load.
Solution 2: Step‑up VFD: 220V Single‑Phase Input to 380V Three‑Phase Output
Converts household 220V single‑phase power into genuine 3‑phase 380V to power your original 380V spindle. ‑ Disadvantages: High cost for power ≥3 kW, high input current on 220V side. Not recommended for machines above 5.5 kW, ordinary household wiring cannot handle the load. ‑ Circuit requirement: 6 mm² copper cable, 32‑40A circuit breaker.
❌ Not Recommended: Capacitor Phase‑Shift Modification
Do not use capacitor phase‑shift for CNC spindle motors. It delivers poor torque, unstable speed and high risk of burning the spindle. Forbidden for CNC equipment.
Power Supply for Control Cabinet, Stepper & Servo Drives
Most stepper / servo drivers, control system, computer, water pump and cooling fan are designed for 220V power supply. Only the spindle motor differentiates between 3‑phase 220V and 3‑phase 380V. In most cases you only modify the spindle power loop, no other cabinet rewiring required.
Critical Wiring & Safety Notes
Use an independent power circuit. Do not share the circuit with air conditioners, welders or other high‑power equipment.
Copper cable reference: ‑ ≤2.2 kW → 4 mm² standard copper cable ‑ 2.2‑3.5 kW → 6 mm² standard copper cable
Protective earth connection is mandatory. Spindle leakage risk exists.
Install 220V voltage stabilizer if local mains voltage fluctuates heavily.
All wiring and VFD parameter configuration should be completed by a qualified electrician. Wrong parameters can destroy the spindle instantly.
Quick Reference Table
| Machine Configuration | 220V Single‑Phase Solution |
|---|---|
| 1.5‑2.2 kW 3‑phase 220V spindle | Single‑phase‑input three‑phase‑output VFD |
| Existing 3 kW 380V spindle | Replace with 2.2 kW 3‑phase 220V spindle + matching VFD / 220V‑to‑3‑phase‑380V step‑up VFD |
| 4.5 kW+ nesting machine / large engraver | 220V single‑phase is not advised. Three‑phase 380V industrial power supply is preferred. |
If you provide spindle nameplate photo (power & voltage rating), I can recommend exact VFD model and detailed wiring description.
Appendix: 220V Single‑Phase power Explanation
1 live wire (L) + 1 neutral wire (N) + 1 protective earth wire (PE)
Detailed explanation
Live wire L (Phase): 1 wire Live, 220 V to ground.
Neutral wire N: 1 wire Earthed at the transformer. Normally no voltage. Forms the working circuit together with the live wire.
Live wire + neutral wire: these two form the 220 V single‑phase working circuit.
Protective earth wire PE: 1 wire (for safety protection only) Yellow‑green insulated wire. Connected only to the equipment housing. Triggers circuit breaker in case of electric leakage. Carries no operating current.
👉 Household power socket: 3 wires total: live‑neutral‑earth
Comparison with three‑phase 380 V power (for your engraving machine reference)
Three‑phase 380 V: 3 live wires. A neutral wire is not mandatory for motor drive. Voltage between any two live wires is 380 V.

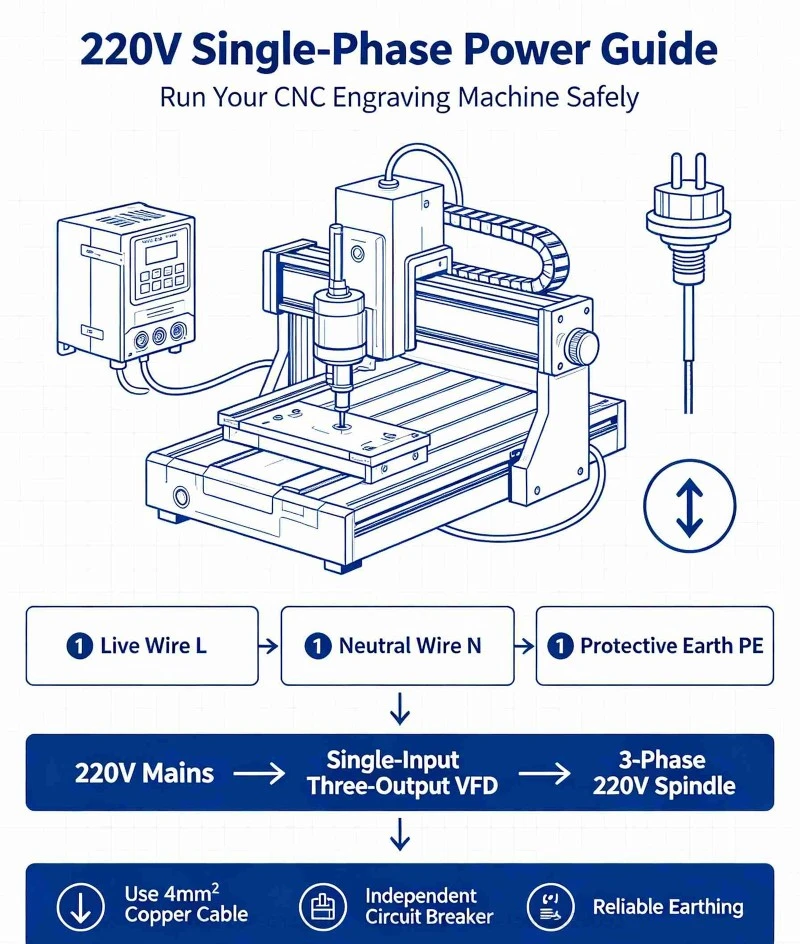

Wiring for single‑phase‑input three‑phase‑output VFD (for your engraving machine)
VFD input side (connect to household mains): ‑ Terminals R, T: connect to live wire and neutral wire (2‑wire 220 V single‑phase input) ‑ Earth wire connects separately to the VFD ground terminal.
VFD output side (connect to spindle motor): ‑ U, V, W: three‑phase 220 V output to the spindle motor.
Key point: Input is single‑phase 2‑wire (live + neutral); Output is three‑phase 3‑wire to run the spindle.
FAQ‑220V Single‑Phase Power for CNC Wood Engraver
Q1: Can I run my CNC wood engraving machine on 220V single‑phase power?
A: Yes, but solutions vary based on your original machine configuration. Never connect a 380V spindle directly to 220V mains, or the spindle will burn out.
Q2: What solution for new machines to work with 220V single‑phase?
A: Equip with a single‑phase‑input three‑phase‑output VFD, and use a 3‑phase 220V spindle. ‑ Input: 220V live + neutral to VFD R/T terminals ‑ Output: U/V/W to spindle motor ‑ Drivers, water pump and control system work on standard 220V. ‑ Use 4 mm² copper cable, independent circuit breaker and reliable earthing. Do not use ordinary 10A sockets for 2.2 kW models.
Q3: My original machine is 380V three‑phase, only 220V power available. What can I do?
A: Two feasible options:
Replace spindle and VFD: Install a 3‑phase 220V spindle together with single‑input three‑output VFD. Most stable for small‑size machines ≤3 kW. No changes needed for control cabinet.
Use step‑up VFD (220V single‑phase input to 3‑phase 380V output). Keep original 380V spindle.
Note: Not recommended for machines over 5.5 kW due to heavy input current; requires 6 mm² copper cable and 32‑40A breaker.
❌ Not allowed: Capacitor phase‑shift modification. It causes low torque, unstable speed and spindle damage.
Q4: Do I need to modify the whole control cabinet?
A: No. Servo/stepper drivers, control system, water pump and fan are normally 220V. Only the spindle power loop needs adjustment.
Q5: Safety requirements for 220V single‑phase installation
A: ‑ Independent power circuit, do not share with welders or other high‑power devices.
‑ Mandatory protective earth connection.
‑ Use voltage stabilizer if mains voltage fluctuates.
‑ All wiring and VFD parameter setting shall be done by qualified electrician.
Q6: What is 220V single‑phase power?
A: 1 live wire(L) + 1 neutral wire(N) + 1 protective earth wire(PE).
‑ Live + neutral form the working power loop.
‑ PE (yellow‑green wire) connects to machine housing for leakage protection, no working current passes through it.
Q7: Can large‑size 4.5 kW+ nesting machines work on 220V single‑phase?
A: Not recommended. Please use industrial 3‑phase 380V power supply.
