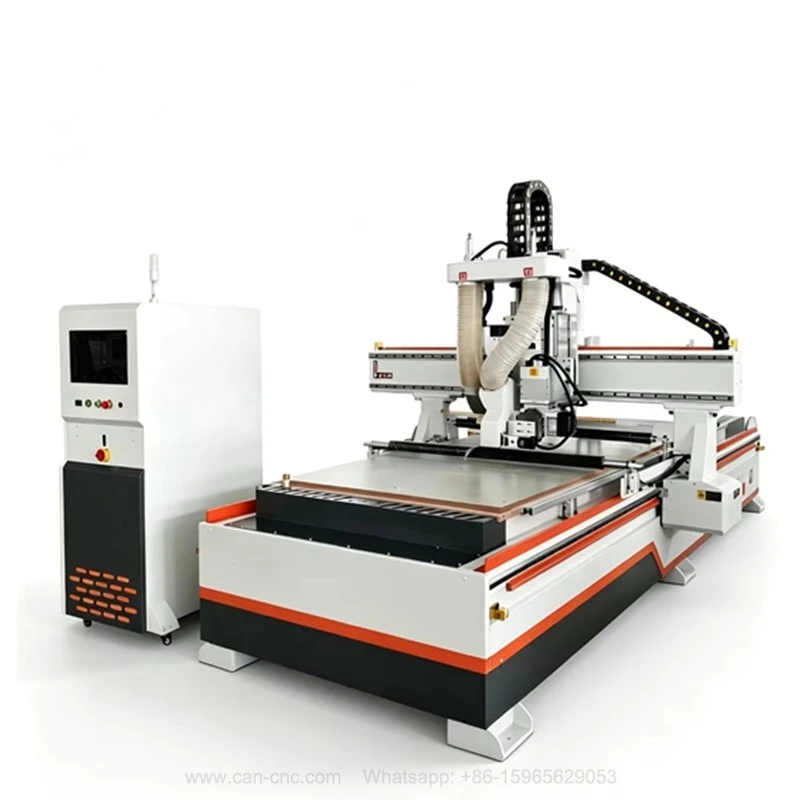

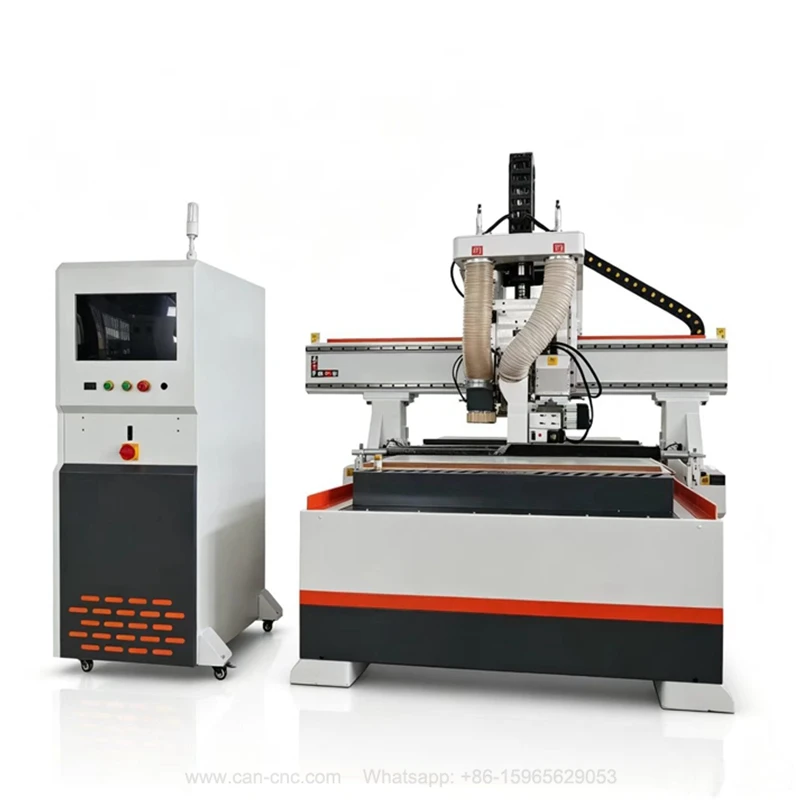

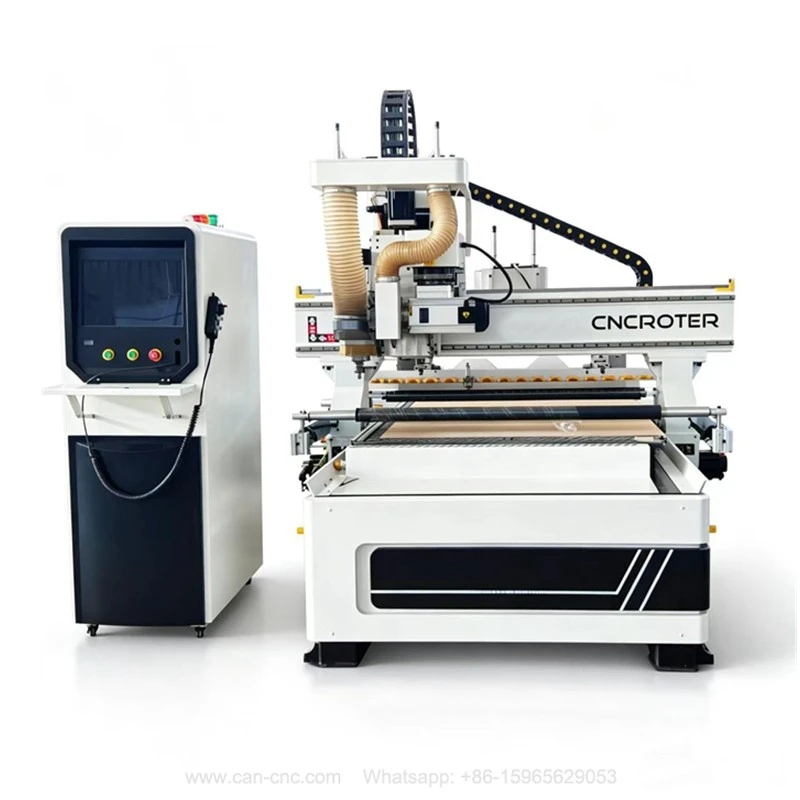

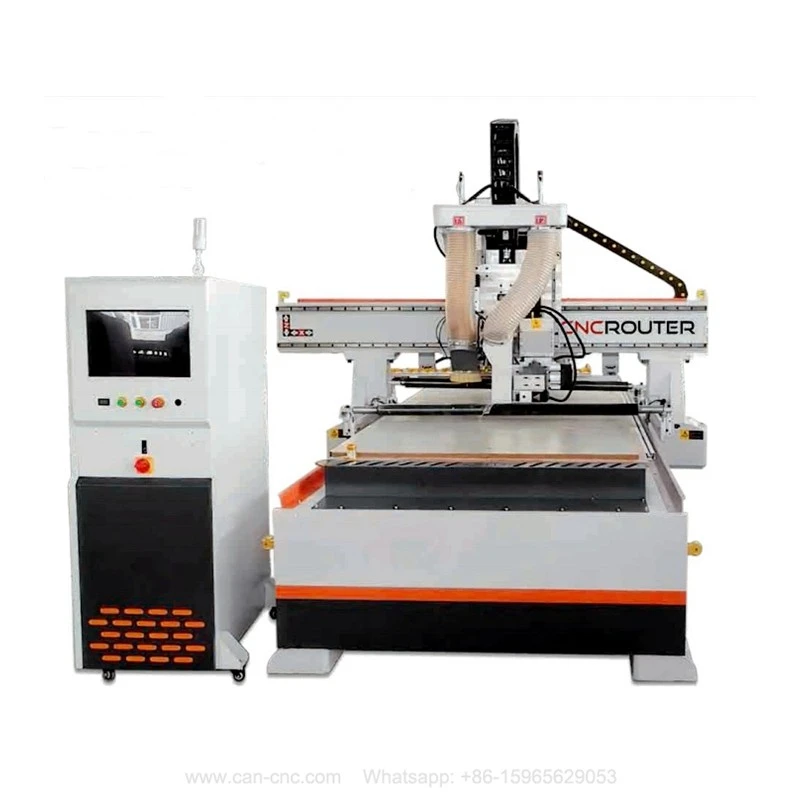

CNC Router With Saw Blades
APEXTECH Mother-Child Saw Blade CNC Machining Center Cutting Machine
Simple Description:
The CNC panel saw with mother and daughter saws combines pre-cut bottom seams on the daughter saw with overall cutting by the mother saw, solving the problems of chipping, peeling, and tearing on both sides when cutting particleboard, melamine board, and multi-layer decorative panels. It is the mainstream industrial equipment for mass production of whole-house custom wardrobes, cabinets, and wooden door frames.
Core Structure and Working Principle:
- Sub-saw (smaller saw): With a smaller diameter, it is installed in front of and below the main saw. It rotates in the opposite direction, first cutting 1-2mm into the bottom of the board, pre-cutting the veneer and wood fibers on the bottom surface to prevent the main saw from pulling and tearing the back of the board.
- Main saw (large saw): It follows the trajectory of the sub-saw, cutting along the same kerf, directly and completely cutting through the entire board. Its rotation direction is opposite to that of the sub-saw, counteracting the cutting torque and preventing the board from warping or slipping.
- The CNC system automatically and precisely controls the lifting and lowering of both sets of saw blades, as well as their coaxiality, eliminating step-like defects caused by kerf misalignment, requiring minimal manual fine-tuning.
Parameters:
| Model | APCAN 2813 CNC Router With Saw Blades |
| Y, X axis working range | 2800*1300mm, option for 3000*2100mm, 4000*2100mm |
| Z axis working range | 250mm(49 feet), option for 300mm, 400mm |
| Spindle type | 9kw aircooling spindle |
| Machine Dimensiton | X: 2200mm, Y: 4100mm, Z: 2300mm |
| Tool magazine | Liner type auto tool changer |
| Control system | LNC controller |
| Driving system | 1.5kw servo motor |
| Reducer | Japan SHIMPO reducer |
| Gear drive | 1.5M Rack drive |
| Machine structure | Heavy duty body with quenching treatment |
| Linear guide | 25/ 30 Linear guide |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Automatic tool sensor calibration |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Net Weight | 2500KG |
| Total power | 25KW |
| Working voltage | 380V 3PH 50HZ/ 60HZ; 220V 1PH/3PH 50HZ/60HZ |
Features Details of CNC Router With Saw Blades:
Efficient automation:
- Controlled by a numerical control system, it can achieve automated continuous processing;
- Reduce manual operations, and improve production efficiency;
- Can quickly and accurately complete cutting tasks according topreset programs, saving time and labor costs.
High Processing Precision:
The machine adopts high-precision linear square tracks, and the machine cross-beam adopts a 2+1 track design. The machine can run at aspeed of up to 85 meters per minute, and the whole machineruns smoothly, ensuring accurate cutting dimensions and noedge jumping during cutting of the board.
Excellent Performance:
The patented vacuum adsorption table adopts PP pipe line layout and multi-channel decen-tralized control area, divided into 6 adsorption intervals, eachinterval adopts 5.2 large adsorption holes, effectively ensuringuniform adsorption force and solving the problem of cutting board running to a greater extent.
Strong Flexibility:
The machine is equipped with a 9KW air-cooled automatic tool changing spindle, which comes with grease lubrication and does not require external lubrication;
High speed, high torque, fast processing speed, suitable forheavy-duty machining processes such as deep cutting andmilling. It can be processed for multi-layer boards, solid woodboards, acrylic boards and other sheet materials.
Stable Structure:
The machine tool body is con-structed from thick-walled steel pipes. Through finiteelement analysis and design, the stress is eliminated,providing a rigid and stable processing platform. TheY-axis adopts double-rail bilateral drive or stepperbidirectional drive, enabling heaw cutting.
Pure Servo Motor:
The machine is equipped with a 1500W pure servo motor, which does not require returning to the origin when starting up, has high torque, fast acceleration, long working time, and precise stability.
The speed response frequency is 3.1K higher, and the vibration suppression function has been greatly enhanced.
Taiwan's new generation system:
The new gen-eration system is a professional PC based CNC controller brand that is currently more complete and has greater development potential in the domestic woodworking machinery industry.
The system is easy to operate,responds quickly, and trouble shooting is simple, with low requirements for equipment operators.
Automatic tool alignment device:
The machine isequipped with an active fully automatic tool alignmentdevice, which can simultaneously align multiple toolsand automatically align multiple tools, saving workerstime in tool alignment.
Flexible cable and detachable drag chain box:
The flexible drag chain, combined with standard cables,effectively protects the service life of machine cables.Reinforced detachable drag chain box, resistant to coldand heat, with high compressive and load-bearingcapacity.
Digital automatic fuel pump (with memory function):
The whole body is equipped with an auto-matic central centralized lubrication system, which iseasy to lubricate and extends the service life and accu-racy of the machine.
Core Advantages:
- Zero chipping, no sanding required: Ordinary single-saw panel saws only produce a smooth surface, inevitably resulting in chipping on the bottom edge, necessitating manual edge trimming and sanding after cutting. The mother-and-daughter saw allows for direct edge sealing after cutting, eliminating subsequent processes and significantly reducing board scrap rates.
- One saw set works for all types of boards: Compatible with particleboard, OSB, eco-board, veneered plywood, MDF, and solid wood veneer, eliminating the need for frequent changes to cross-cutting/longitudinal cutting saw blades.
- High degree of CNC automation: Computerized layout optimizes material usage, increasing board utilization by 5%~10%; automatic positioning, automatic cutting, and automatic feeding reduce manual marking and positioning errors.
- Stronger cutting stability: The dual saws rotate in opposite directions to counteract cutting tension, reducing the likelihood of arching and chipping when cutting thin boards, and improving the straightness of long boards and strips.
01
Zero chipping, no sanding required
02
One saw set works for all types of board
03
High degree of CNC automation
04
Stronger cutting stability
optional functions of Automatic CNC Router Saw Blade Cutting:
Automatic labeling function:
The machine directly labels before cutting. reducing manual labeling
actions and eliminating the probability of manual labeling errors. It adopts a rotatable pneumatic labeling head, which can adjust the direction of labeling according to the size of the board.
Automatic feeding suction cup:
The machine can be equipped with an automatic feeding suction cupseparately, and automatic side push and backwardpush positioning devices can also be added! (A sepa-rate loading and unloading platform can be equipped later)
Automatic loading platform:
The machine can beoptionally equipped with an automatic loading plat-form, which can realize the automatic processing flowof the machine without the need for manual loading! Itcan effectively increase the degree of automation andsave labor costs!
Pressure roller device:
The machine can be op-tionally equipped with a pressure roller device. If theboard has large deformation and uneven surface, apressure roller device can be selected to assist invacuum suction and fixation of the board!
Machine feeding device:
fully automatic flat hori-zontal feeding with auxiliary aluminum bar blockingfunction! Spindle automatic partition integrated dustremoval and secondary dust removal device for push- ing materials!
Machine cutting and conveying platform:
Themachine can be optionally equipped with a fully auto-matic cutting platform, which significantly improves theproduction efficiency of sheet cutting through intelli-gent, high-precision, and flexible design.
Applicable Industry Scenarios
✅ Whole-house custom cabinet factory (mass production of wardrobes, kitchen cabinets, shoe cabinets, and wine cabinets).
✅ Wooden door, door frame, and wall panel manufacturer.
✅ Small and medium-sized panel furniture processing factory and OEM/ODM workshop.
If the boards have a decorative finish, veneer, high-gloss film, are prone to chipping or peeling, and require CNC automated batch cutting or non-standard customized production, they are basically within the scope of application of CNC panel saws; among them, whole-house customized wardrobe and cabinet factories are the most core and common application scenarios.
#1. Custom-made panel furniture for the whole house (most commonly used)
- Wardrobe, cabinet, shoe cabinet, TV cabinet, and wine cabinet body cutting:
For particleboard, eco-board, multi-layer solid wood board, and OSB, the double-blade saw cuts both sides without chipping. Edge sealing is done immediately after cutting, eliminating the need for manual sanding and trimming, significantly reducing board scrap rates. Suitable for small and medium-sized furniture processing plants and custom furniture factories for bulk cutting.
- Cabinet door panels, cabinet partitions, drawer panels, top and bottom panels cutting:
Large panel optimized layout cutting, automatic horizontal and vertical cutting, irregular shape cutting, with tool changing spindle can simultaneously drill holes, mill hinge holes, and grooving with straightener.
- Custom-made tatami rooms, walk-in closets, entryway cabinets, and balcony cabinets:
We offer a wide range of non-standard materials for the entire house, with one-click order splitting and layout via software, and fully automated machine processing to accommodate personalized non-standard orders.
#2. Wooden door and wall panel industry
- Solid wood composite door frame panels and door frame materials are cut to size:
Long strips of door frame panels are cut longitudinally and then horizontally. A double saw is used to avoid peeling of the veneer, resulting in neat cuts and flawless subsequent edge banding and wrapping processes.
- Interior wooden door blank cutting, wood-plastic door/carbon crystal door panel cutting:
Multi-layer veneer door panels are most susceptible to tearing at the bottom when cut with a single saw. A master-slave saw cuts the panels intact, making it suitable for mass production in door factories.
- Cutting of wood veneer for walls, integrated wall panels, and grille panels:
Long strip wall panels are cut longitudinally along the grain, which makes the long boards less prone to warping and chipping, and results in better straightness.
#3. Cabinet matching board processing
- Wardrobe veneer back panels, thin back panels grooving + cutting:
Thin panels are easily chipped when cut with a single saw; a master-slave saw pre-cuts the bottom seam, ensuring strong processing stability for thin materials.
- Bookcases, filing cabinets, office furniture panel components:
Standardized panel cutting for mass production of office furniture ensures uniform precision and high consistency in batch production.
- Aluminum alloy frame door panels, PET high-gloss door panel substrate cutting:
High-gloss panels with decorative surfaces cannot be scratched or chipped; a master-slave saw is the preferred cutting solution for these panels.
# 4. Soft furnishings and home decoration matching processing
- Processing of bay window baseboards, cabinet baseboards, and display cabinet/stand panels:
Cutting of non-standard panels for store display cabinets, shelves, and counters; flexible processing of small batches and various styles.
- Decoration company's own cutting workshop:
The decoration company has its own processing plant, where all cabinet panels required on the construction site are machine-cut, eliminating the need for outsourcing and saving on outsourcing costs.
#5. Packaging, tooling, and other sheet metal processing scenarios
-
Medium-density fiberboard (MDF) and fiberboard craft and carving substrate cutting:
Substrate cutting is sparse and chip-free, resulting in a higher yield rate for subsequent carving and painting processes.
-
Wooden packing crates and equipment boxes cutting:
Batch cutting of multi-layer plywood and packing boards reduces burrs and facilitates nailing.
-
RV and RV interior cabinet panel processing:
RV interiors often feature irregular shapes and small panels, requiring high-quality surface finishes; suitable for cutting with a master saw.
FAQ
01.What are the differences between a mother-and-child saw and a regular single-spindle saw?
02.Do the mother-and-child saw heads have to rotate 90° to make both longitudinal and transverse cuts? Is it possible to make them without rotating?
① Rotating head: One mother-and-child saw assembly performs 0° longitudinal cutting and 90° transverse cutting, handling all cutting tasks with one machine. Suitable for factories with diverse orders and multiple cabinet sizes.(and we recommend this kind)
② Non-rotating model: Equipped with two independent mother-and-child saws, one for fixed longitudinal cutting and one for fixed transverse cutting. Primarily used for large-volume square cutting of wooden door frames; however, this model has a higher equipment cost.
03.Which types of boards are unsuitable for use with a panel saw?
04.Can a panel saw perform milling, drilling, and hinge slotting?
05.What does the standard configuration include? What are the optional extras?
06.For a small workshop producing 20-30 boards a day, which machine model should be chosen?
A basic model with a straight-line cutter changer and a rotary saw is sufficient. It doesn't require a disc cutter magazine or automatic loading and unloading, offering the best cost-performance ratio.
why choose us?
Choosing our mother-and-child saw is not just choosing a piece of equipment, but choosing a production solution with higher quality, higher efficiency, lower cost, and more stable production capacity. Say goodbye to pain points such as chipped edges and rework, wasted labor, unstable dimensions, and insufficient production capacity, helping factories upgrade product quality, expand order volume, and achieve high profitability.
