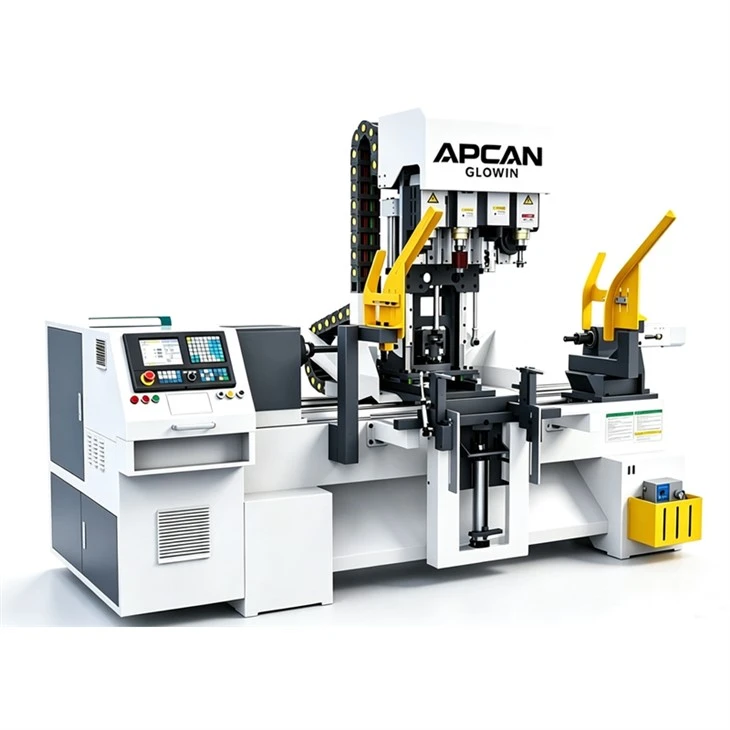

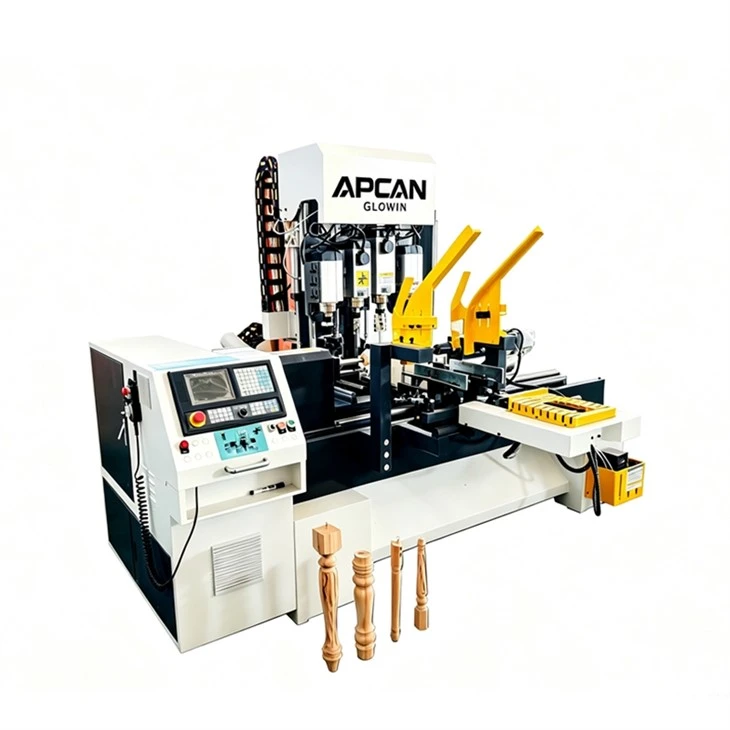

Wood CNC Lathe Milling Machine

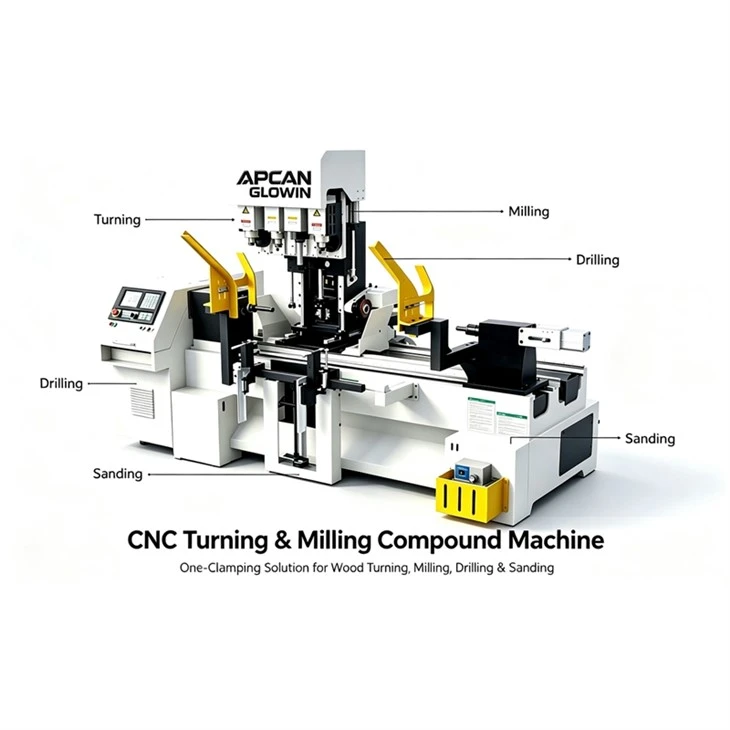

Wood processing manufacturers are constantly seeking automated equipment to streamline production, reduce secondary clamping errors and cut labor costs. Our CNC Turning & Milling Compound Machine is a revolutionary multi-process CNC wood lathe, combining turning, milling, drilling and sanding functions in a single machine. Only one-time workpiece clamping completes all machining procedures, greatly boosting production efficiency and workpiece precision.

1. Core Advantages of CNC Turning & Milling Compound Machine

✅ One-Clamping Multi-Process Machining Traditional wood lathes require repeated disassembly and clamping for turning, slotting, hole drilling and surface sanding. Multiple positioning leads to dimensional deviation. This compound machine realizes turning, milling, side drilling, profiling and sanding without re-clamping. It effectively eliminates positioning errors and guarantees consistent product quality in mass production.

✅ High Rigid Machine Body & Stable Long-Term Operation The whole machine adopts thickened cast iron bed structure, anti-deformation, strong shock resistance. Precision linear guide rails and high-power servo drive system ensure stable high-speed operation. Even long-time continuous industrial production maintains stable machining accuracy.

✅ Intelligent CNC Control System, Easy Operation Equipped with professional dedicated CNC operating panel. Operators can import CAD/CAM drawing programs, quickly edit processing parameters. Preset common processing templates for chair legs, table legs, stair balusters, wooden spindles. Workers can master operation after short training, lowering technical threshold.

✅ Flexible Multi-Functional Configuration Modular multi-spindle processing unit supports customized configuration. Meet diversified processing demands: circular turning, special-shaped profiling, tenon milling, horizontal & vertical drilling, surface polishing. One machine replaces multiple traditional woodworking machines, greatly saving workshop space and equipment investment.

Ask Factory Ex-factory Price & Custom Solution

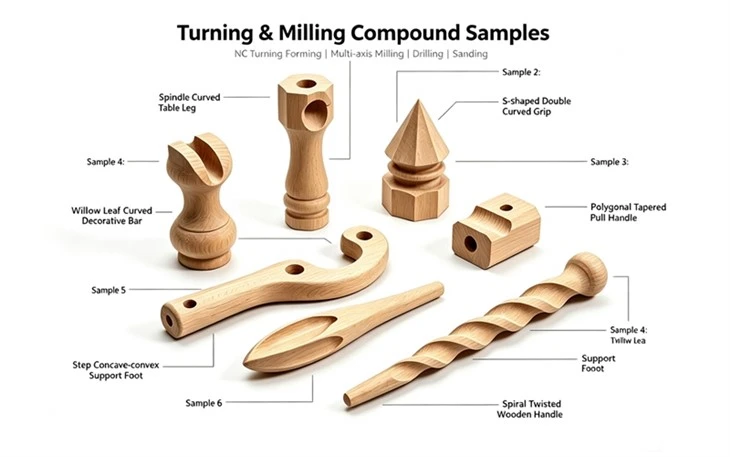

2. Wide Application Scope

Our CNC turning milling compound wood lathe is widely used in solid wood furniture processing factories, wooden craft workshops, stair handrail manufacturers:

Furniture components: chair legs, dining table legs, cabinet legs, sofa legs.

Construction wood parts: stair balusters, railing posts.

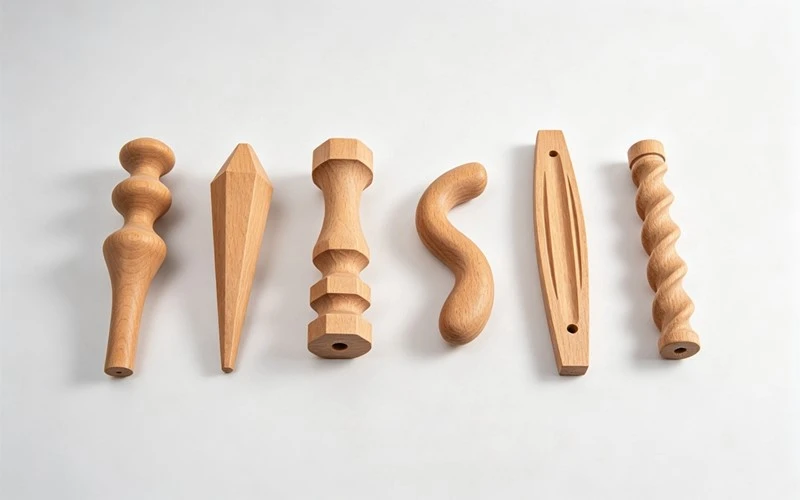

Wooden crafts: wooden spindles, decoration columns, wooden handles.

Other special-shaped rotary solid wood workpieces.

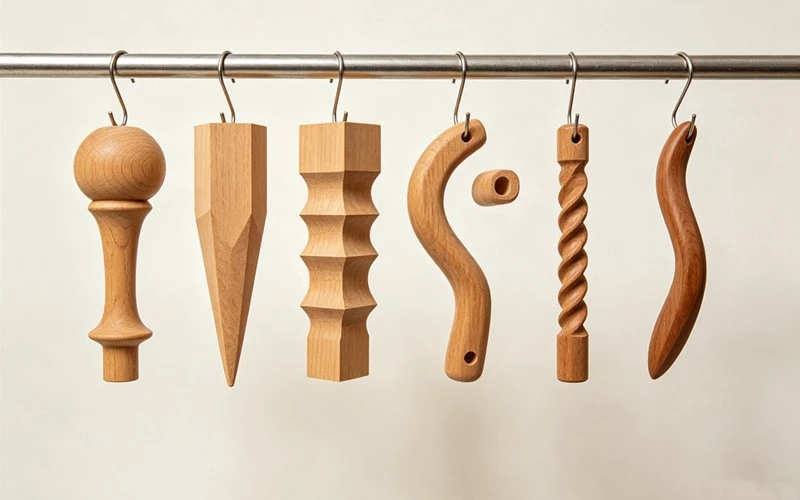

Wooden crafts- decoration columns

Wooden crafts- decoration columns

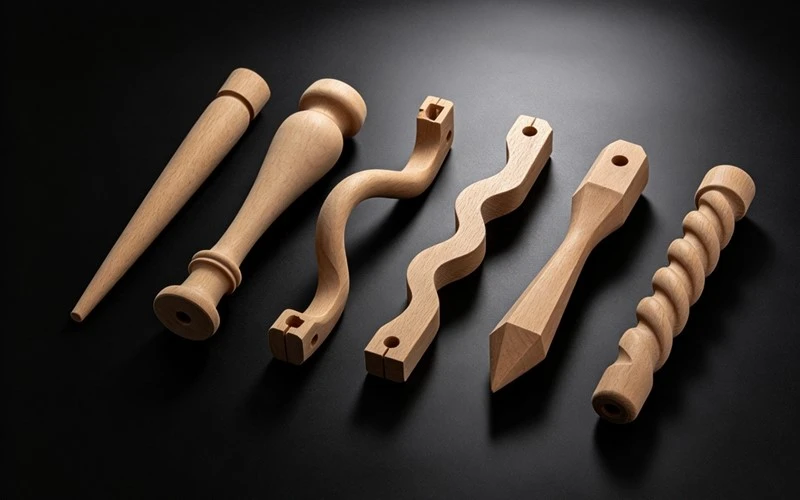

Wooden crafts- wooden handles

Other special- shaped rotary solid wood workpieces

Construction wood parts

Construction wood Ppts

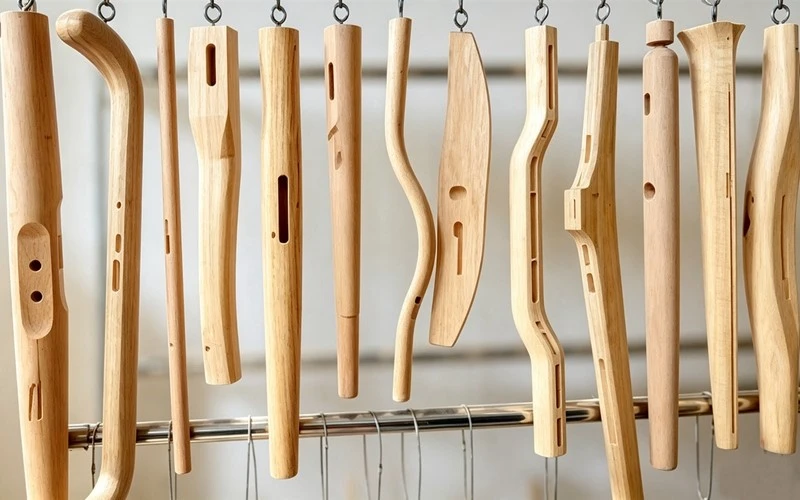

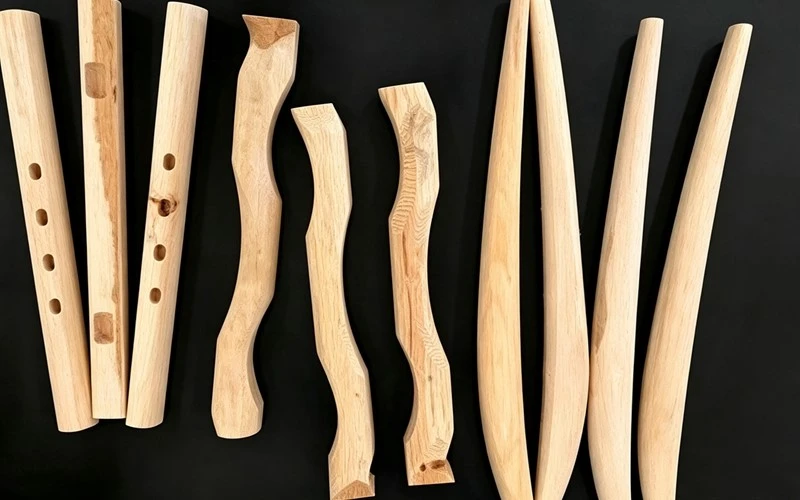

Wood furniture components

Wood furniture components

Ask Factory Ex-factory Price & Custom Solution

4. Technical Specifications:

Ask Factory Ex-factory Price & Custom Solution

5. Display of Multi-Function CNC Wood Lathe For Wood Furniture

01

Double Turning Tools Stations

The machine is fitted with two turning tool stations. Different cutters can be pre-installed for quick switching to satisfy multi-tool turning requirements. Tool changes can be completed without halting production.

02

Machine Frame Bed

This CNC wood lathe features a heavy-duty double-row four-track bed constructed from 30mm thick gray cast iron. The robust cast structure effectively withstands the machine's overall weight and delivers exceptional stability during the processing of large and complex wood workpieces.

03

Headstock

Constructed from high-strength gray cast iron, the headstock is fitted with a four-bearing drive spindle to deliver ultra-stable rotation and powerful machining performance. The cast tailstock adopts a Morse No.5 taper and a standard-stroke cylinder, enabling fast and reliable clamping of wooden workpieces. After positioning the material, the tailstock locking device firmly secures the tailstock, allowing the headstock and tailstock to stably clamp workpieces for precise machining.

04

Air Cylinder

High-performance air cylinders serve as the power unit for automatic clamping and loading & unloading. The tailstock cylinder drives the Morse taper centre to fast clamp wooden workpieces. Cooperating with the four-link loading and unloading system, cylinders enable automatic material feeding and discharging. Stable pneumatic clamping avoids workpiece vibration during high-speed rotation, ensuring consistent machining precision while lowering manual labor.

05

1.5KW Servo Motors

The three linear axes are driven by 1.5KW servo motors. Featuring strong low-speed torque and outstanding dynamic response, they deliver precise positioning and stable feeding during heavy-duty solid wood machining. Equipped with closed-loop feedback control, the servos effectively prevent step loss and ensure smooth three-axis linkage. Fast acceleration and deceleration shorten idle travel time, improving overall productivity while maintaining consistent machining accuracy for mass production.

06

4-Axis Milling And Turning System

This machine utilizes our self-developed 4 axis multi-functional CNC system. Having undergone long-term market verification, the system boasts excellent user-friendliness for new operators. It supports compatibility with multiple CAD/CAM software and accepts file formats including DXF, NC, TXT and DBF.

07

Automatic feeding system

Fitted with a standard four-link pneumatic automatic loading and unloading system, it delivers outstanding operational stability and high load-bearing capacity.



08

Planner Spindle

The machine is equipped with a 7.5KW air-cooled spindle dedicated for planing, reaching a maximum speed of 18,000 rpm. It comes with a standard 15 cm planer, with customized sizes available to meet diverse processing needs.

Two 6KW and one 4.5KW high-speed air-cooled frequency conversion spindles are configured for milling, carving and drilling tasks. These spindles support the installation of milling cutters, carving tools, drill bits and various other accessories. The two outer spindles feature manual angle adjustment, allowing tilted machining such as bevel carving, step surface processing and side hole drilling for higher machining flexibility.

9

Taiwan Hiwin 30 slide rails

The machine adopts original Taiwan HIWIN 30 linear guide rails for all linear axes. Featuring high rigidity and heavy load capacity, they deliver stable linear guidance for moving assemblies during turning, milling and drilling. Low rolling friction ensures smooth high-speed movement and excellent repeat positioning accuracy. Equipped with multi-layer dust-proof seals, the rails effectively resist wood dust erosion, maintaining long-term precision and extending service life under continuous mass production.



10

Cable Drag Chain

High-strength enclosed cable drag chains accommodate power cables, signal wires and pneumatic hoses for reciprocating moving axes. It restricts cable movement within a fixed track to avoid twisting, pulling and tangling. The enclosed structure effectively blocks wood dust and shavings, preventing cable abrasion and circuit failures. With standardized bending radius protection, cables suffer less fatigue damage for longer service life. Modular openable links simplify wiring inspection and maintenance, supporting stable long-term continuous production.

Ask Factory Ex-factory Price & Custom Solution

Besides the above functions, we also can provide the excellent functions below:

• Dust Protection System

The whole machine is equipped with a comprehensive dust-proof structure to adapt to high-dust woodworking environments. Protective covers and sealed housings block wood shavings and dust from entering linear guides, spindles and transmission components. The reserved dust removal interface can be connected to an external dust collector to quickly clean processing debris. It effectively reduces component wear, avoids dust-caused jams and electrical failures, and ensures long-term stable continuous operation.

• Safety Protection System

This CNC wood lathe is designed with complete safety protection mechanisms. Equipped with an emergency stop button for immediate shutdown in case of abnormal conditions. The protective door features power-off protection, which automatically suspends machine operation once opened. Standard insulated and dustproof electrical cabinet ensures safe circuit operation. The overall safety design complies with industrial operating standards, effectively protecting operators and equipment during long-hour working.

Remote Diagnosis & Support

The 4 Axis CNC system supports network remote connection. Our technical team can perform remote diagnosis, parameter adjustment, program debugging and fault troubleshooting online. It greatly reduces downtime and avoids costly overseas on-site waiting cycles. Customers can obtain fast and professional technical support anytime, improving after-sales efficiency and machine utilization.

Ask Factory Ex-factory Price & Custom Solution

6. Why Choose Our CNC Turning Milling Compound Machine?

🔹 All core electrical components adopt well-known brand parts, low failure rate, long service life.

🔹 Independent R&D woodworking special control system, optimized algorithm for timber processing.

🔹 Support customized working stroke, spindle combination according to customer workpiece size.

🔹 Complete after-sales service: overseas installation guidance, technical training, spare parts supply.

🔹 Strict factory inspection before delivery, each machine undergoes continuous running test.

7. Technical Features Summary

Integrated turning, milling, drilling, sanding composite processing.

One-time clamping, no repeated positioning.

Cast iron lathe bed, excellent stability.

Multi-group independent processing spindles, simultaneous multi-task processing.

User-friendly CNC system, convenient program editing.

Adapt to oak, beech, pine, rubber wood and most kinds of solid wood.

Ask Factory Ex-factory Price & Custom Solution
