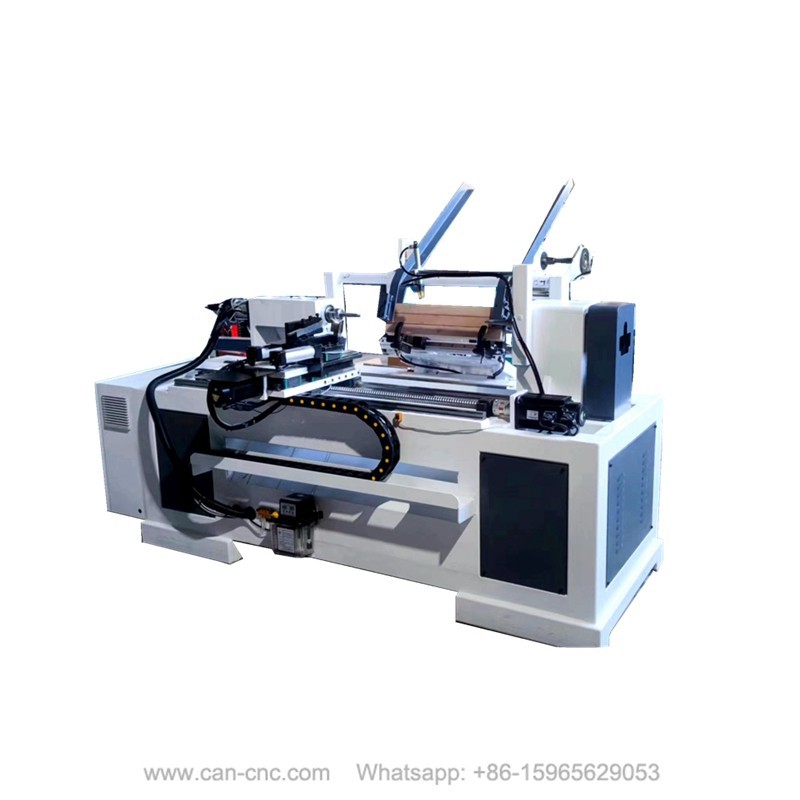

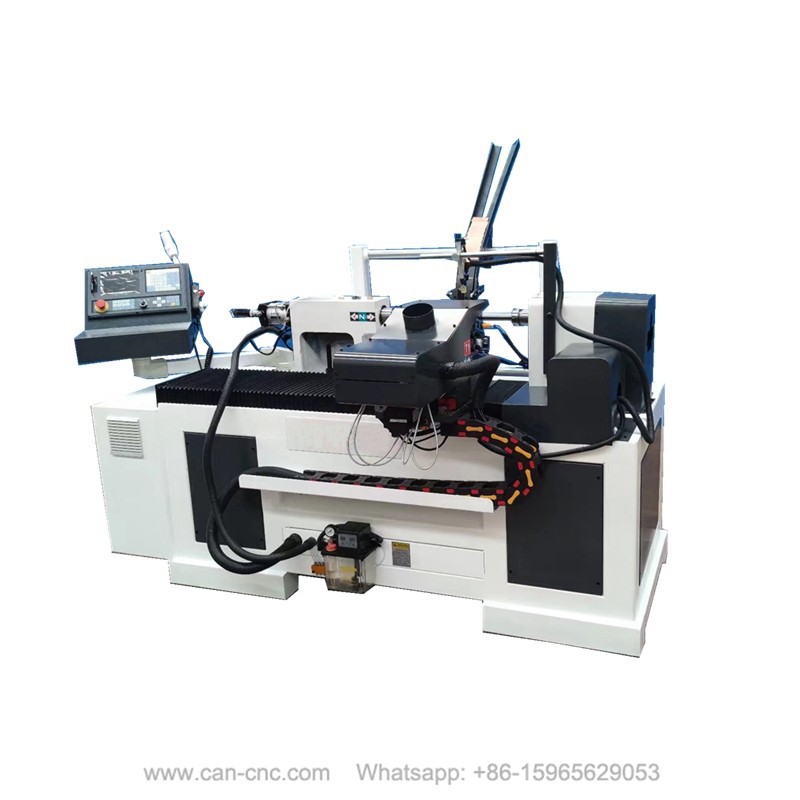

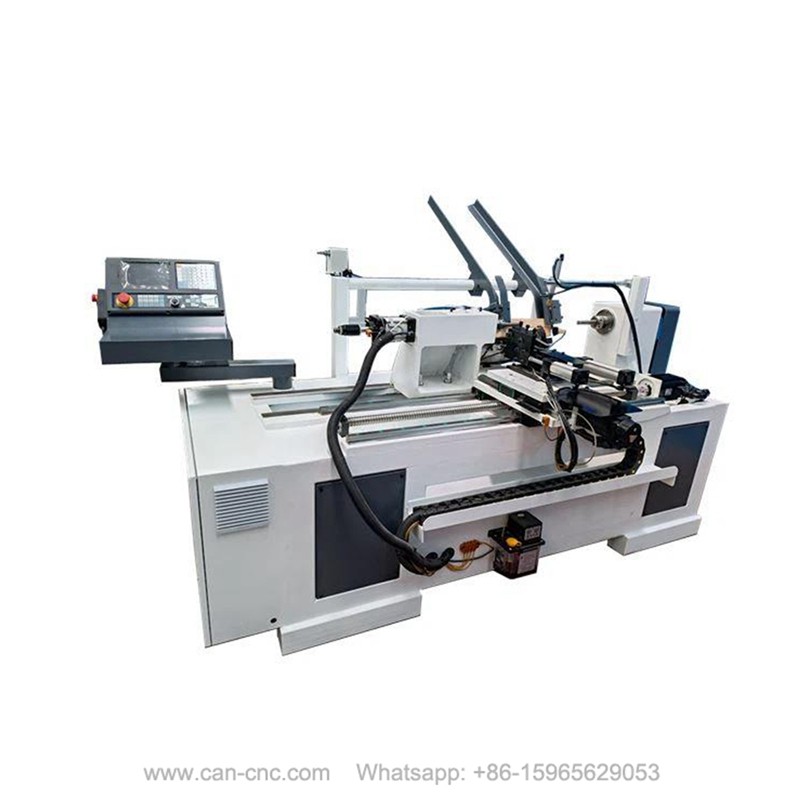

Beginning Wood Lathe For Chair Legs
video
Beginning Wood Lathe For Chair Legs

Beginning Wood Lathe For Chair Legs

This kind beginning wood lathe for chair legs processing speed very fast, there are 3 turning tools of different shapes at this position:
#Turning Tool 1: V-shaped turning tool is a finishing turning tool. After rough processing of wood, further finishing is performed to make the processed wood shape smoother.
#Turning Tool 2: U-shaped turning tool, rough processing of wood can achieve rapid turning of wood and improve the working efficiency of the machine.
#Turning Tool 3: Conventional turning tool, which can not only turn the shape of wood, but also cut the wood at the end.
Send Inquiry

Product Introduction

Simple Introduction:

This beginning wood lathe for chair legs is an important piece of equipment that helps in creating precision-

crafted chair legs, table legs and handrails for staircases.

The use of a wood lathe in the production of these wood legs and handrails is a way to achieve the perfect

shape, as well as ensure that they are of the right size and shape.

The lathe is a machine tool that is used for the shaping and cutting of wood into various shapes and sizes.

It is a mechanical device that rotates a piece of wood on a spindle, while a cutting tool shapes the wood as

it spins on the lathe. The beginning wood lathe for chair legs is specially designed to produce high-quality

wood legs and handrails made from different types of wood such as maple, oak, ash, and pine.

beginning wood lathe for chair legs 3

Parameters:

Machine Model

Beginning Wood Lathe For Chair Legs

Processing Size

1000mm Length x 200mm Diameter

Max Diameter 200mm

Controller System

Panel Controller

Motor Drive

Servo system

Square and Slider

Imported Taiwan Hiwin Square and Hiwin Slider

Main Motor Power

5.5KW

Machine Weight

1800KG

Frame

Whole Iron Casting

Frequency Inverter

Frequency inverter

Ballscrew

Imported TBI25 Ballscrew

Machine Size

3100x1300x1700mm

Package Size

3300x1550x1900mm

Suitable Material

All kinds of wood can be cut, processed and carved, such as oak, beech, birch, teak, pineapple, red oak, sapele, rosewood, etc.

Guarantee

2 years for free, lifetime warranty

beginning wood lathe for chair legs 7

beginning wood lathe for chair legs details 5

beginning wood lathe for chair legs details 3

beginning wood lathe for chair legs details 2

beginning wood lathe for chair legs details 7

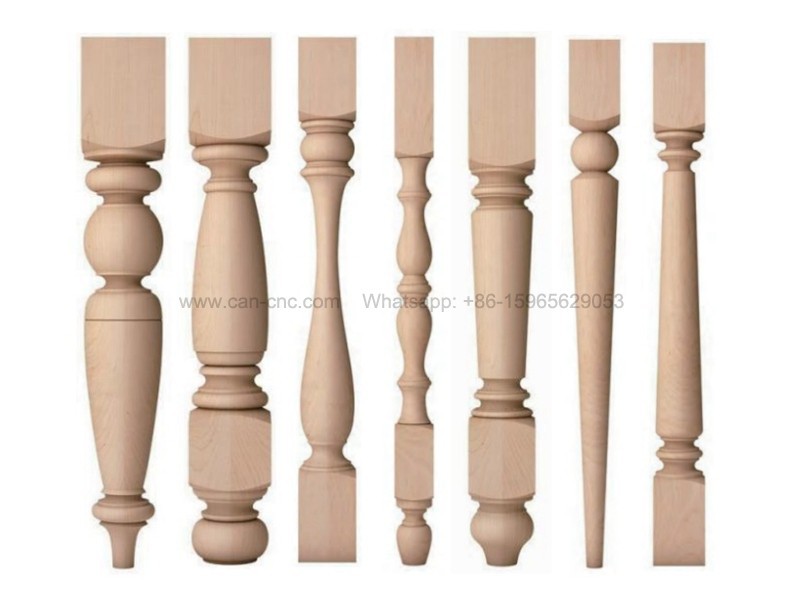

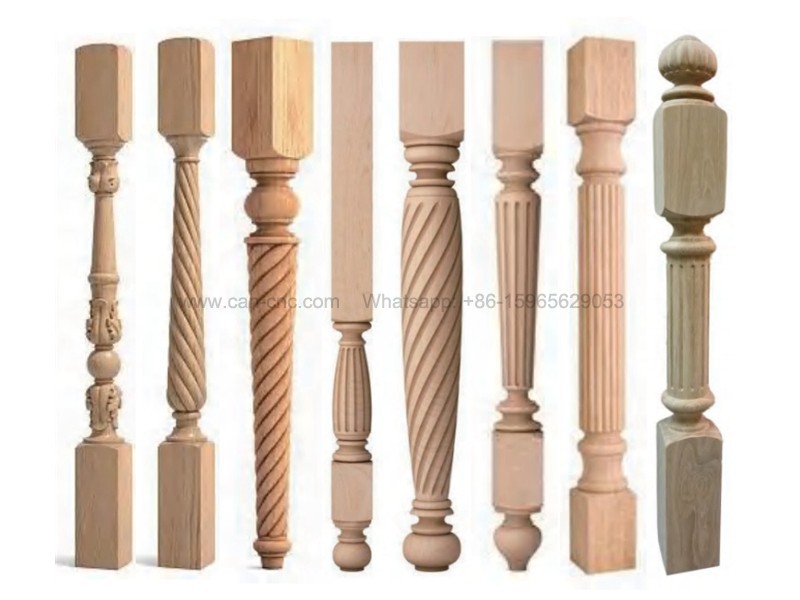

Samples:

Various cylindrical workpieces, various stair columns, stair railings, stair columns, dining table legs, coffee

table legs, sofa table legs, bar stool legs, roman columns, washstands, wooden tables, baseball bats, car

wooden furniture, children's bed posts, chair arm posts, chair stretchers, sofas and bun feet, bed rails, lamp

posts, baseball bats, table and chair backrests, European stair posts, cylindrical, conical, curved, spherical

and other complex shapes of carousel or wood semi-finished products.

beginning wood lathe for chair legs samples 2

Package for delivery:

Professional Packing and Shipping packing with plastic films and plywood box, or as your requirement.

1). Machine has been adjusted and test 48 hours before delivery.

2). English software, User manual and detailed installation & training video in USB.

3). Some extra spare parts (Pipe, limit switches etc.)

beginning wood lathe for chair legs delivery
