Professional Wood Lathe For Stair Handrail
video
Professional Wood Lathe For Stair Handrail

Professional Wood Lathe For Stair Handrail

The professional wood lathe for stair handrail is a device that can create items such as stairway posts,designs on wood,and more. A CNC wood lathe is operated by a panel which is controlled by the user. CNC Turning Lathe machine is designed for cylindrical or conoid workpieces, for example pillar, banister, chair legs,etc.
#Cheap price.
#Single axis, double blades,4 pieces blade cutters.
#Intelligent Control System: Easy To Operate, Easy To Learn, Automatic Image Recognition, 12-Inch Color Large Screen, U Disk Transmission, No Need To Connect To A Computer.
#Using well-known domestic brand aicooling spindle with high quality, low noise, strong cutting ability, to ensure the long time using working.
Send Inquiry

Product Introduction

Introduction:

The professional wood lathe for stair handrail is designed to shape and cut wood into different sizes

and shapes. Iit can process various staircase column, roman column, general column, tables or chairs

legs, washstand, wooden table legs, baseball bat, car wooden furniture, children' s bed column, etc.

There Are 2 Turning Blades Of Different Shapes At This Position:

Turning Blade 1: Rough turning blade, rough processing of wood can achieve rapid turning of wood and

improve the working efficiency of the machine.

Turning Blade 2: Fine turning blade is a finishing turning tool. After rough processing of wood, further

finishing is performed to make the processed wood shape smoother.

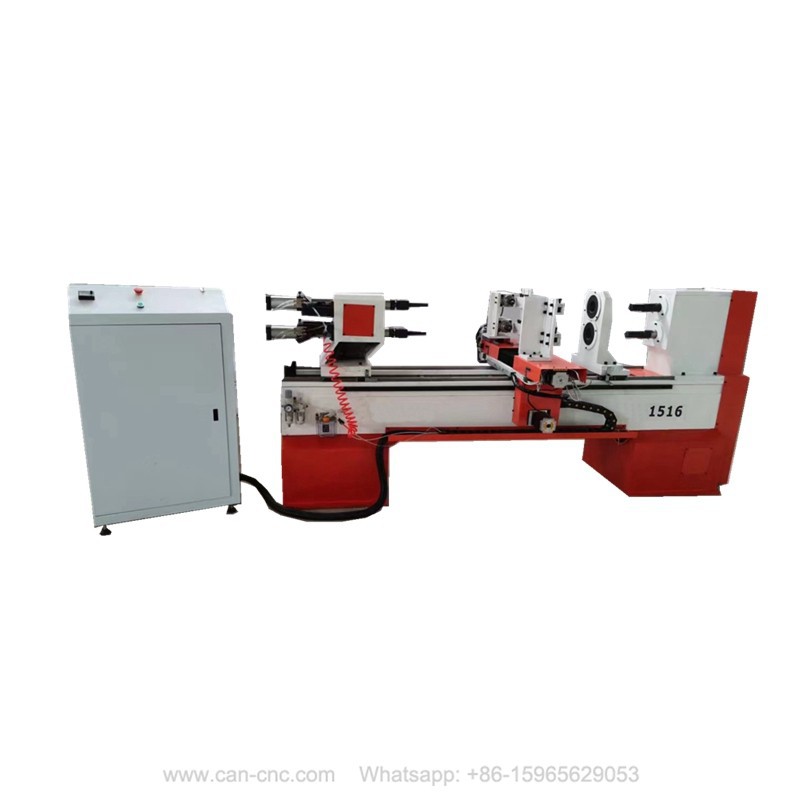

professional wood lathe for stair handrail 1

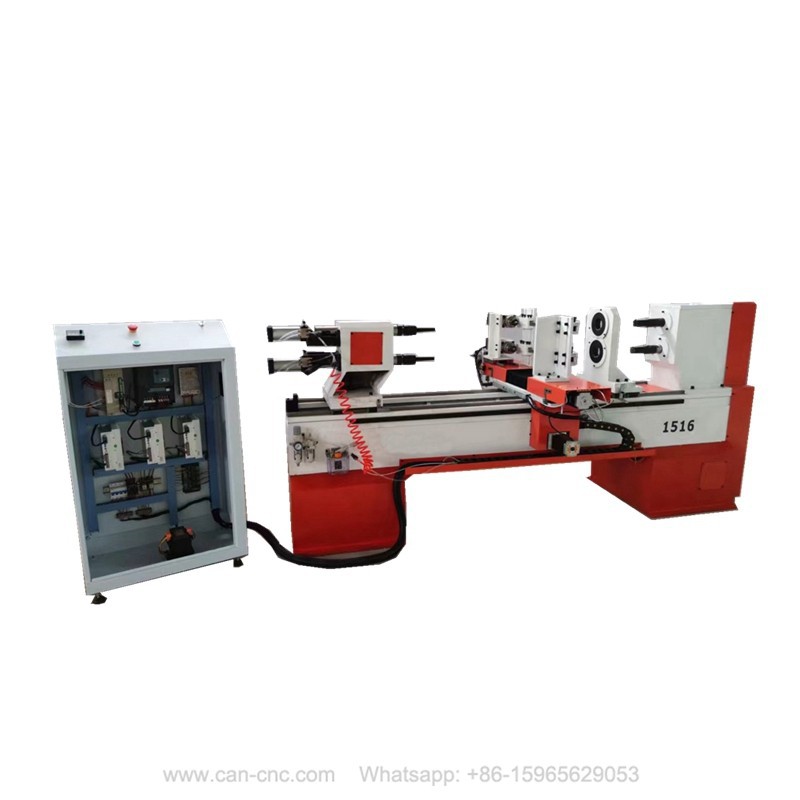

professional wood lathe for stair handrail 5

Specification:

Lathe Model 1516 Professional Wood Lathe For Stair Handrail
Max Processing Size 160mm diameter x1500mm length
Driving system Stepper motor and drivers
Quantity of Blades 2
Max Feed Speed 35mm/s
Spindle Speed 0-3500rpm
Accuracy 0.001mm
Control System Panel controller system
Machine Dimension 3300x1500x1600mm
Weight 1600kgs

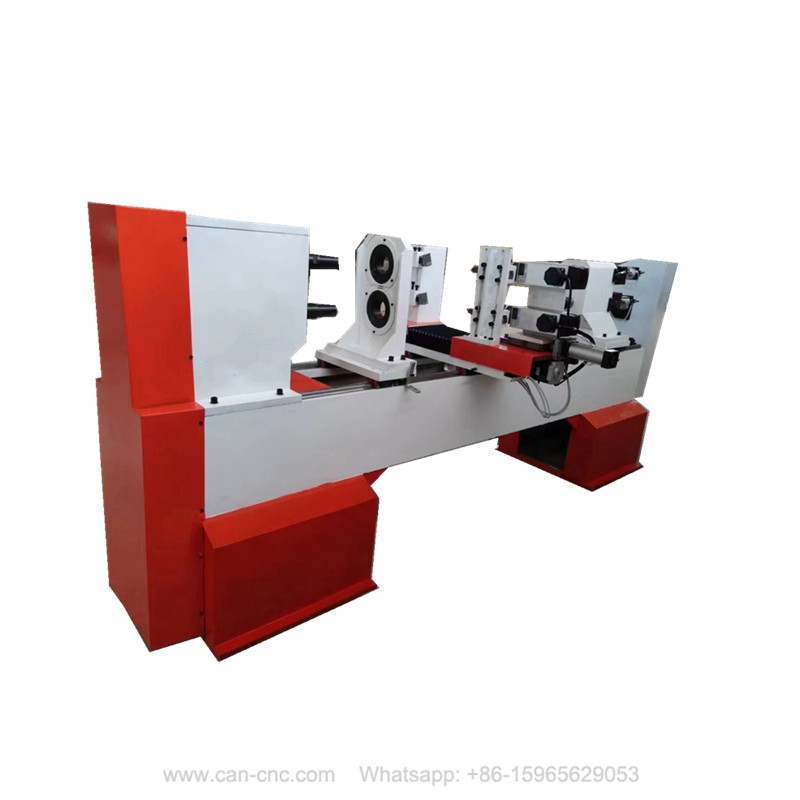

professional wood lathe for stair handrail details 4

Professional Wood Lathe For Stair Handrail Samples Application:

Staircases, stairway balusters, stairway newel posts; dining table legs; end table Legs; sofa table legs;bar stool

legs; chair legs; chair arm posts; chair stretchers; bed rails, lamp posts, baseball bats.

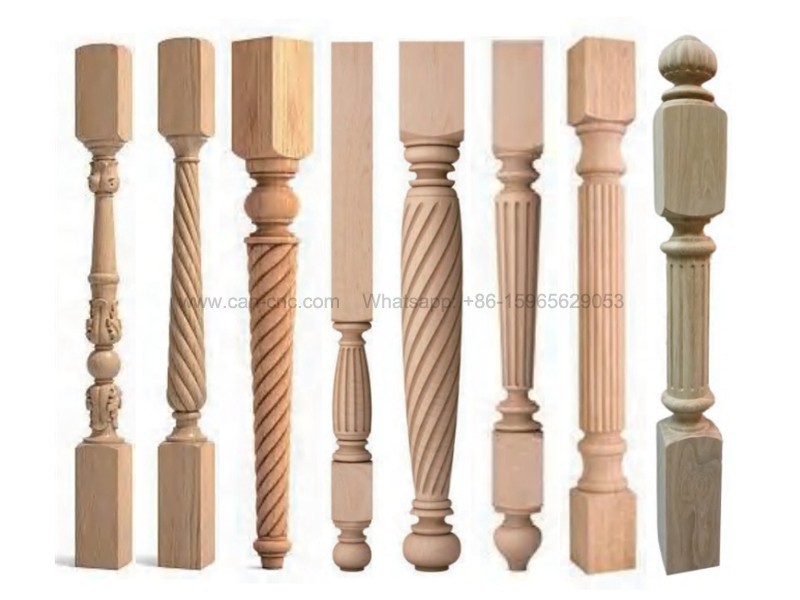

professional wood lathe for stair handrail samples 1

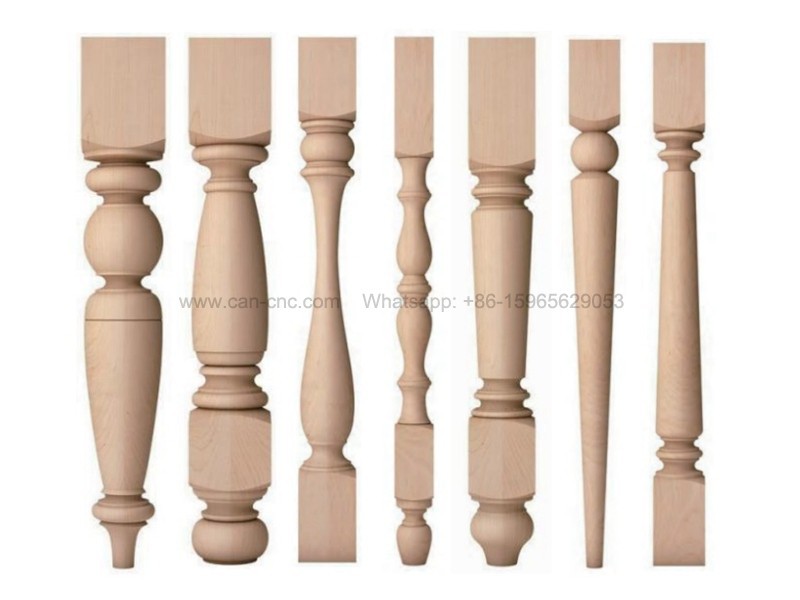

professional wood lathe for stair handrail samples 4

Packaging And Delivery:

The whole machine will be completely wrapped with plastic wrap to avoid rusting during transportation, and

then fixed on a sturdy iron steel pipe pallet with a wooden box for sea shipping.

Inner packaging:

· Cover the entire lathe with professional stretch film.

· Stretch film wrapping with foam protection at every corner.

Outer packaging:

· Standard export wooden boxes and plywood boxes.

· Save container loading space as much as possible.

Transportation:

· We support sea, air, ground and express.

Packaging Details:

Outer packing: Standard sea export plywood box.

Inner packing: moisture-proof stretch film and plastic film.

PS: We can also pack according to your requirements.

professional wood lathe for stair handrail delivery
