Woodturning Cnc For Short Wooden Elements

This kind woodturning cnc for short wooden elements is the most polular lathe in our customers.

Is is designed for make all kinds of short wood elements, it can make the wood handles, wood knobs and

wooden balls etc.

The max speed can achieve 6 seconds a wood pieces, so it is 10 pieces within 1 minute, and it is 600 pieces

with 1 hour, so it is very fast speed.

Specifications:

The round chuck can clamp the round wood, and push the wood going front and back. The round chuck can

be with different diameters based on your samples sizes, the round chuck can be installed and removed easily.

Besides, there are two turning blades for turn the samples shapes, one rough blade+one fine blade; also equipped

with one drill for drilling the inside holes when the wood samples need the drilling function.

Hydraulic cylider.

Auto loading & material dispensing – Equipped with a hopper and an automatic feeding and dispensing

device, the wood lathe automatically feeds and distributes materials according to program instructions.

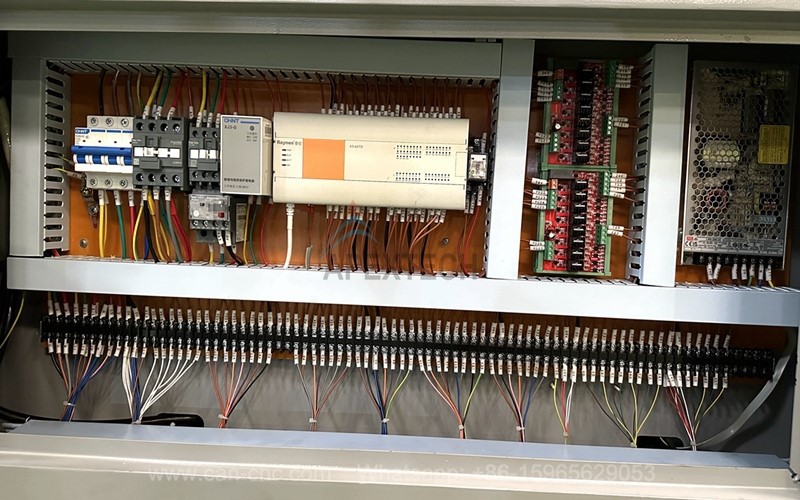

Controller system with english lanaguage.

Servo drives.

Samples Application:

This kind woodturning cnc for short wooden elements is perfect for short wooden elements fabrication such

as beads, furniture handle attachments, wooden toys, small cups & jars, awl wood handles, bottle stoppers,

gourds, musical instrument accessories, conducting baton handles, balls, walking sticks, chess, waist drum

beads, Kendama, buddha head, incense burner, sofa foot, whip handle, scroll, spinning top, and more.

Package and Delivery:

Whole machine will be totally wrapped with cling plastic to avoid rusting during shipping, then fastened on

the stronger

iron steel tube pallet with wooden box for sea shipment.

Inside Packing:

· Use professional Stretch Film to cover the whole lathe.

· Stretch film package with foam protection in each corner.

Outside Packing:

· Standard export wooden cases and plywood cases.

· Save space as much as possible for container loading.

Transport:

· We support shipping, air, land and express.

Packaging Details:

Outside package: standard marine export plywood case.

Inner package: stretch film and plastic film for humidity.

PS: We can also make package according to your requests.
