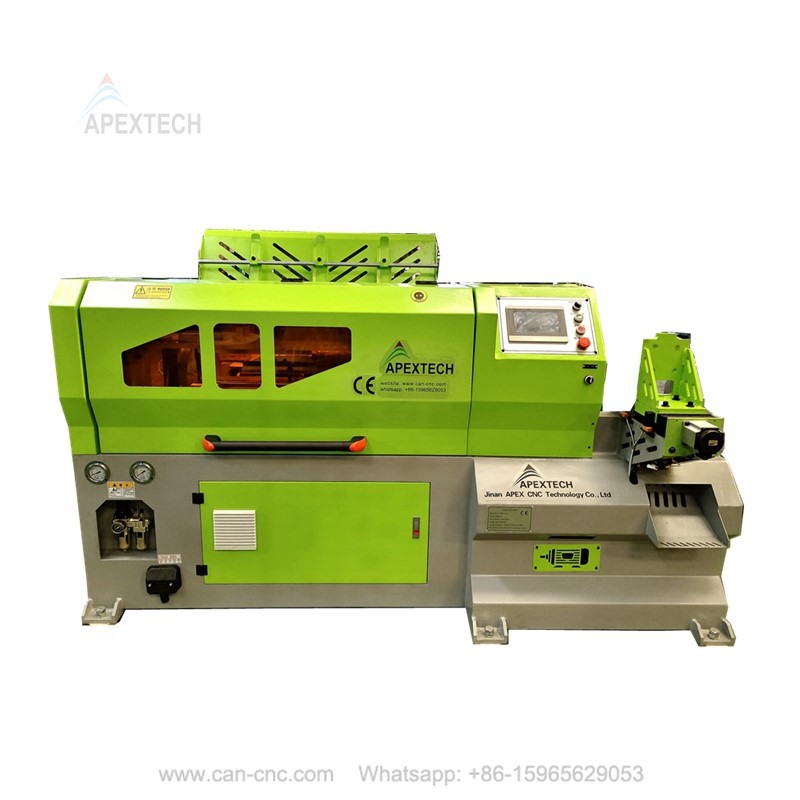

This kind woodturning cnc for furniture handles is the most polular lathe in our customers.
Is is designed for make all kinds of short furniture handles, it can not only make the wood handles, but also
can make wood knobs and wooden balls etc.
The max speed can achieve 6 seconds a wood pieces, so it is 10 pieces within 1 minute, and it is 600 pieces
with 1 hour, so it is very fast speed.
Specifications:
|
Machine Model |
Woodturning Cnc For Furniture Handles |
|
Place of Origin |
China |
|
Equipment Processing Size |
Max Diameter: 70mm x 700mm Length |
|
Spindle Motor Power |
4kw |
|
Controller System |
Panel Controller with English version |
|
Control electrical components |
Zhengtai Brand |
|
Spindle control inverter |
High-power spindle inverter with 5.5KW |
|
Movement execution block |
Tool holder: Precision Linear Guide Screws and Servo knife station |
|
Movement control system |
Servo model |
|
Motion control unit |
Hydraulic tailstock cutter |
|
Machine power |
7.5kw |
|
Working Voltage |
380V, 3 phases |
|
Machine Size |
2600x1300x1500mm |
|
Package Size |
3200x1550x1900mm |
|
Whole machine weight |
1200kgs |
|
Guarantee |
2 years for free, lifetime warranty |
The Product Features Of Woodturning Cnc For Furniture Handles:
# 1. Adopt large-section imported linear guides, maintenance-free and self-lubricating for life.
# 2. Professional electric spindle in the industry, the high speed of the spindle can reach 18000RPM.
# 3. Simple operation: touch-type human-machine interface, intuitive operation.
# 4. High configuration: The main core control components adopt international first-line brand components,
with stable performance and long service life.
# 5. High precision: the movement adopts high-precision linear guide rail, with high-precision helical gear
transmission, high precision.
# 6. High degree of intelligence: All movements are automatically lubricated with grease to ensure the smooth
operation of the machine.
# 7. Specially reinforced structure design, good at both of engraving and cutting job, balanced and stable
performance.
The round chuck can clamp the round wood, and push the wood going front and back. The round chuck can
be with different diameters based on your samples sizes, the round chuck can be installed and removed easily.
Besides, there are two turning blades for turn the samples shapes, one rough blade+one fine blade; also equipped
with one drill for drilling the inside holes when the wood samples need the drilling function.
Controller system with LCD screen.
Servo motor and drives.
Electric parts with wires.
Package and Delivery:
Professional Packing and Shipping packing with plastic films and plywood box, or as your requirement.
Delivery Shipped in 20-25 working days after payment:
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB.
3) Some extra spare parts (Pipe, limit switches etc.)

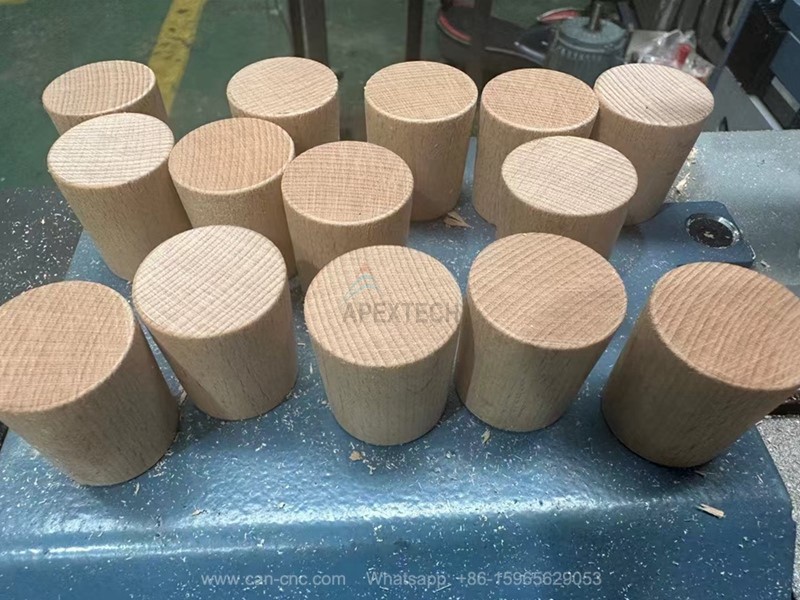

Samples Applications:
It is suitable to all kinds cabinets knobs and wooden umbrella handles with many different sizes.
