Jinan APEX CNC Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of High Cost Performance 7-in-1 Wood Lathe With Carving, Planing & Polishing Functions in China. With abundant experience, we warmly welcome you to buy advanced High Cost Performance 7-in-1 Wood Lathe With Carving, Planing & Polishing Functions for sale here from our factory. Good service and quality products are available.

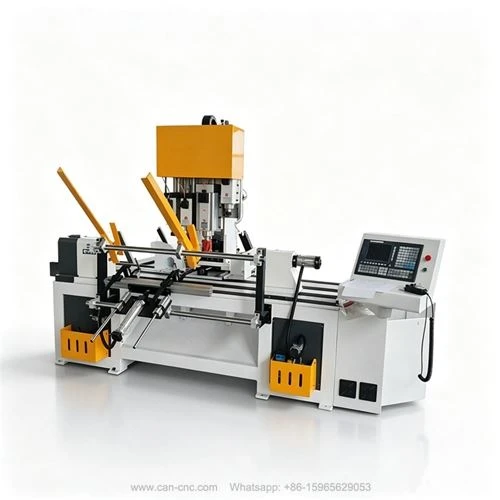

APEXTECH-1220-7-in-1 CNC wood lathe is our latest cost-effective industrial heavy-duty model. It boasts superior overall hardware configurations versus peer products and adopts a refined design for multi-step integrated machining. Fitted with seven dedicated machining tool sets, it supports a full range of processes including turning, drilling, grooving, milling, surface finishing, chamfering, flat engraving and 3D carving. All these operations can be finished in a single workpiece clamping cycle to eliminate repeated repositioning errors. Verified by field application tests, the APEXTECH-1220-7-in-1 delivers precise results for more than 96% of common machining demands, such as stair balusters, table and chair legs, and assorted furniture structural parts. Whether producing standard furniture fittings or complex artistic custom shapes, this CNC lathe faithfully reproduces every design detail from CAD drawings, standing as a reliable all-in-one workhorse for modern woodworking workshops.
Main features of Budget Friendly 7-in-1 Multi-function CNC Wood Turning Machine

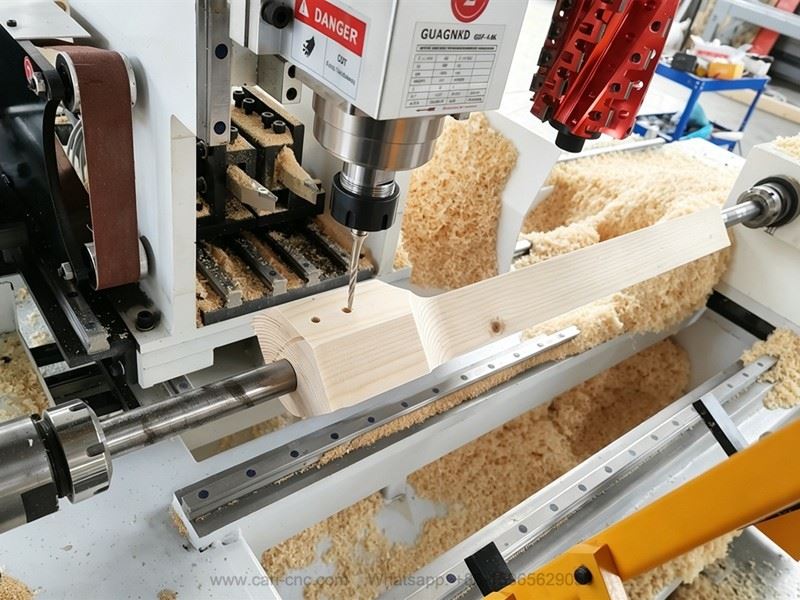

Standout Operational Advantage: One-Time Clamping, No Secondary Re-Facing
This core design delivers three tangible production gains:
Higher machining precision: fixed single clamping eliminates coaxial errors caused by repeated unloading and re-alignment; fine carved textures and hole locations stay accurate.
Improved working efficiency: remove redundant handling and resetting steps to shorten single-piece machining cycles significantly.
Lower reject rate: fewer manual positioning operations reduce human mistakes and material waste.
Parameters
|
Machine Model |
1220 Budget Friendly 7-In-1 Multi-Function CNC Wood Turning Lathe |
|
Place of Origin |
China |
| Processing Max Diameter |
200mm |
| Processing Max Length |
1200mm |
| Spindles | Three 6KW-18000rpm electric spindles |
| One 7.5kw-12000rpm electric spindle | |
| Power Supply |
AC380V, 3 phase |
| Feeding Mechanism | Automatic feeding (loading range: width * thickness ≤ 100 * 100 mm, length 80 ~ 1200 mm) |
| Controller system | 4-axis milling and turning system |
| X, Y, Z, A-axis feed modes |
X/Y/Z axis driven by Newcore servo drive, A-axis driven by Alpha spindle servo drive. |
| Guide | Precision linear guide |
| Lead screw | Taiwan TBI ball screw |
| Frequency converters | China Yi Diantong brand |
| Maximum X, Y, and Z axis traverse speed | 15 m/min |
| Maximum machining speed |
10 m/min |
|
Whole machine weight |
1600kgs |
| Machine size | 3020mm*2220mm*2050mm |
| Delivery Port | Qingdao, Shenzhen, Guangzhou etc. |
| Lead Time | 20 working days |
Configurations in details

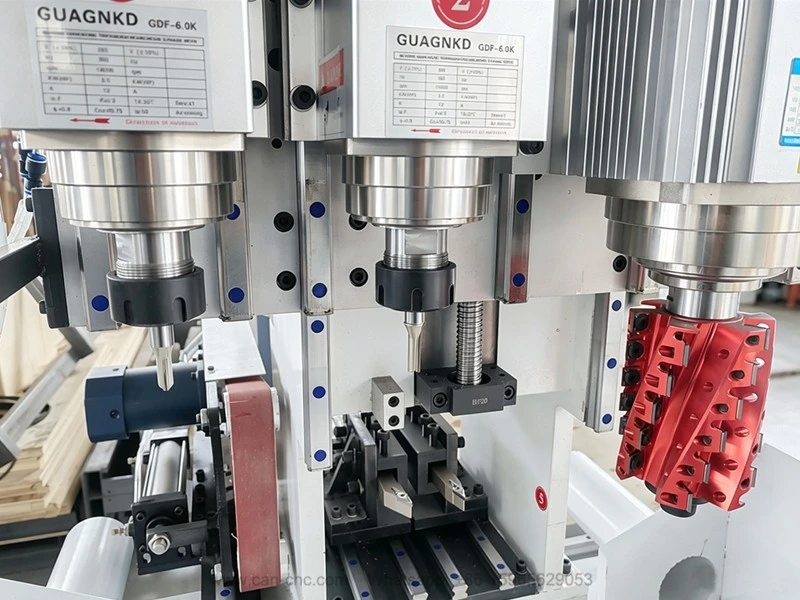

4 Spindles+2 Blades+1 Polishing
All-in-one turning, carving & polishing for wooden decorative columns. Equipped with total four spindles, which can be milling, engraving, planning, drilling function, also double blades for turning function with fast speed, and one polishing function for smooth wood.
Polishing Function
Driven by stable servo spindle rotation, matched with interchangeable abrasive belts, wool and sponge wheels, it efficiently removes tool marks, burrs and shallow scratches on stair balusters, table legs, decorative columns and craft pieces. Cutting extra handling errors and saving separate polishing equipment investment for workshops.
Material Auto Feeding Rack
It automatically transports raw timber toward the headstock and pneumatic tailstock for precise centering and clamping, removing heavy manual lifting and repeated manual alignment workpieces. It also boosts continuous batch production efficiency and lowers operational safety risks.
Servo Motors
Dual servo motors deliver stable torque and precise positioning for turning, milling and carving processes, supporting multi-station synchronous machining to boost production efficiency.
Automatic Lubrication Pump
Automatic lubrication pump works on preset cycles to oil guide rails & lead screws automatically. Visible oil tank simplifies refilling maintenance, effectively cutting component wear and keeping machining accuracy stable.
Cable Drag Chain
Heavy-duty cable drag chain neatly arranges power & signal wires, protects cables from friction and wood debris damage during repeated axis travel, ensuring stable long-time continuous machining.
Automatic Tool Setting
It can realize one-click automatic tool setting and update offset compensation data without manual calculation or trial cutting. It eliminates human measurement errors, ensures uniform dimension consistency for mass-produced stair balusters, carved table legs and decorative columns, cuts tool calibration downtime sharply and lowers scrap rates.
Stable Machine Bed
Equipped with double-row four-track structure and 30mm thick wall. Pre-released internal stress effectively avoids long-term deformation. Outstanding vibration damping performance absorbs cutting shocks during turning, milling and 3D carving, eliminating shaky tool marks on finished workpieces. The high-rigid base steadily keeping stable dimensional accuracy for batch processing.
4 Axis Controller Sysyem
It combines a visual display screen, categorized function keys and emergency stop unit. Operators can switch manual jog, handwheel fine-tuning and automatic machining modes freely, complete program editing, parameter adjustment, tool compensation & one-click auto tool setting on the panel. It supports mainstream CAD/CAM file import, simplifies multi-process turning, carving and polishing workflow.
Applications
This all-in-one wood lathe integrates turning, milling, engraving and drilling. It efficiently manufactures chair legs, stair balusters, roman columns and wooden handles. Single clamping completes full processing without secondary repositioning, ideal for furniture factories and decorative woodwork producers.
Core Machining Capabilities & Corresponding Applications
1. Turning for Basic Rotary Shaping
Processing range: cylinders, cones, arc outlines and vase-shaped rotary components Main application scenarios
Home furniture: solid chair legs, bed posts, cabinet decorative pillars;
Construction decor: stair balusters, indoor partition Roman columns;
Daily accessories: tool wood handles, lamp support columns, rolling pins. Supported by thick cast iron machine bed and stable servo spindle, the machine absorbs cutting vibration effectively. The outer diameter and curve of mass-produced rotary workpieces keep highly consistent, avoiding uneven surface tool marks from unstable rotation.
2. Milling for Groove & Pattern Customization
Processing range: straight slots, irregular grooves, spiral textures Main application scenarios
Structural machining: mortise slots on table leg sides for assembly;
Decorative upgrading: spiral twisted lines on handrails, asymmetrical recessed patterns on pillar surfaces to enrich visual layers. The multi-station tool turret switches turning cutters and milling cutters rapidly without workpiece disassembly, ideal for producing stylish customized stair balusters and designer furniture legs.
3. Engraving & Drilling for Detail Finishing
Processing range: relief carving, radial patterns, lateral through holes and countersink mounting holes Main application scenarios
Art decoration: embossed floral patterns on pillar surfaces and delicate carvings on furniture legs;
Pre-installation processing: direct drilling of assembly holes, eliminating extra drilling procedures after part forming. Craftsmen no longer need to transfer semi-finished pieces to dedicated engraving or drilling equipment, removing secondary positioning deviation on fine carved patterns and hole positions.
Typical Industry Application Fields
1. Furniture Manufacturing Industry
Full-process production of dining chair legs, bed columns and wardrobe decorative pillars is achievable on one machine. Factories save budgets on purchasing scattered standalone machines, shorten workshop layout space and cut workpiece transit time. It fits both standardized bulk furniture orders and small-batch personalized custom projects.
2. Stair & Architectural Decoration Sector
Batch fabricate stair railing balusters and large villa Roman columns. Spiral milling and relief engraving can be completed in one clamping, stably handling large-volume engineering orders with uniform finished quality.
3. Daily Wooden Handicraft Production
Produce kitchen tool handles, small cylindrical ornaments and hobby craft pieces flexibly. Operators switch NC programs quickly to adapt frequent style adjustments for small custom batches.
One-time clamping, no secondary re-facing
Machine delivery package
The whole machine will be completely wrapped with plastic wrap to avoid rusting during transportation, and then fixed on a sturdy iron steel pipe pallet with a wooden box for sea shipping.
Inner packaging:
· Cover the entire lathe with professional stretch film.
· Stretch film wrapping with foam protection at every corner.
Outer packaging:
· Standard export wooden boxes and plywood boxes.
· Save container loading space as much as possible.
Transportation:
· We support sea, air, ground and express.
PS: We can also pack according to your requirements.
FAQ
Q1: What products can this 4-axis 7-in-1 wood lathe produce?

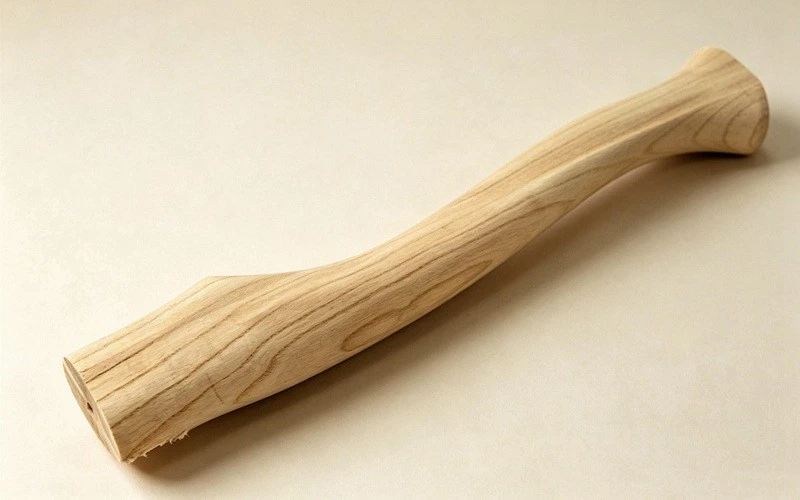

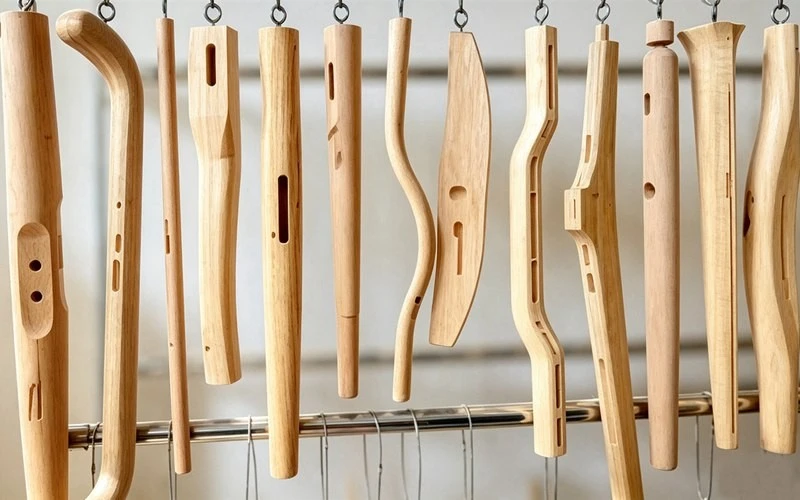

A: This 4-axis CNC wood turning & carving lathe covers diversified rotary and side-processed wooden goods.
Furniture components: carved table legs, bed posts, cabinet supporting feet and sofa armrest pillars;
Decoration & stair parts: stair balusters, indoor partition columns, Roman column bases, balcony guardrail posts;
Handicrafts & small goods: wooden vases, candle holders, pen blanks, craft ornaments;
Outdoor garden pieces: anti-corrosive fence posts, pergola support columns and landscape wooden stakes. With indexing spindle design, it finishes side grooving, drilling and relief carving in one clamping without repeated workpiece reloading.
Q2: Does the system support mainstream CAD/CAM design software?
A: Yes. Our self-developed CK series CNC control system boasts wide software compatibility. It works perfectly with mainstream CAD/CAM programs commonly used in woodworking industry, and supports DXF, NC, TXT, DBF regular file formats. You can import pre-made design files directly for batch machining, friendly for novice operators and professional designers alike.
Q3: What about after-sales warranty and overseas installation guidance?
A: We provide complete after-sale service terms:
Standard warranty: 1-year free warranty for the whole machine (excluding easily worn consumables like blades); damaged core parts from manufacturing defects can get free replacement;
Overseas guidance: We offer remote online installation, parameter debugging and operation training via video call all year round. For large bulk orders, on-site overseas installation & training service is negotiable;
Lifelong technical support: Our team keeps providing fault diagnosis, software upgrade and daily maintenance advice permanently after warranty expires.
Q4: Can I add automatic loading rack as an upgrade?
A: Absolutely available. The automatic loading rack is equipped in our this model wood lathe. The pneumatic feeding structure can automatically deliver long wood blanks to the spindle clamping position, greatly cutting manual loading workload and lifting continuous batch production efficiency. We also support other customized upgrades including extra polishing unit, enclosed dust cover and multi-station tool turret as required.
The multi-functional CNC wood lathe integrating turning, milling, engraving and drilling solves multiple pain points of segmented wooden part production. Whether you run a custom craft studio, medium furniture workshop or large decoration component factory, it streamlines workflows, controls operating costs and expands design possibilities for chair legs, stair balusters, Roman columns and wood handle lines.
