Jinan APEX CNC Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of wood turning workshop in China. With abundant experience, we warmly welcome you to buy advanced wood turning workshop for sale here from our factory. Good service and quality products are available.
This kind automatic turning machine for wood has the functions of turning shape, twisting, milling groove, hollowing, engraving, etc.
The automatic woodworking lathe uses the CNC system to control the turning tool to process the surface of the rotating workpiece, without changing the turning tool, without frequent debugging, according to the design drawings automatically process wood, and automatic woodworking lathes are widely used in furniture manufacturing, architectural decoration, handicraft production and other fields.
Product Parameters
|
Machine Model |
1530-1S-4axis turning machine for wood |
|
Material size |
300*1500 mm (length: 2000mm, 2500mm, 3000mm are optional) |
|
Max Diameter |
Single Axis Work: Diameter can be 300mm |
|
Controller System |
LCD control with screen show |
|
Driving system |
- Three phase current of 380V, 50HZ. - Stepper motor: 450B 2 sets. - Stepper driver: YKAO2811MA 2 sets. - Servo motor is optional. - 5.5kw 220v/3ph/220v/1ph for option. |
|
Guide rail |
Taiwan HIWIN/PMI linear square guide |
|
Tailstock |
Precisely and easily movable, with quick clamping with pneumatic |
|
Spindle |
3.5KW Air cooed Spindle, 1-18000RPM |
|
Frequency Inverter |
Best inverter 5.5 kw (Fuling brand is optional) |
|
Ball screw |
Imported TBI25 Ball screw |
|
Application Range |
Stair handrails, railings, stair supporting feet, table and coffee table legs, sofa legs, bar tables, table and chair legs, bed railings, lamp posts, baseball bats and other parts. It can also be used for processing wood Handicrafts such as bowls, wooden wine glasses, and Panlongzhu. |
|
Suitable Material |
All kinds of wood can be cut, processed and carved, such as oak, beech, birch, teak, pineapple, red oak, sapele, rosewood, etc. |
wood turning lathe Features

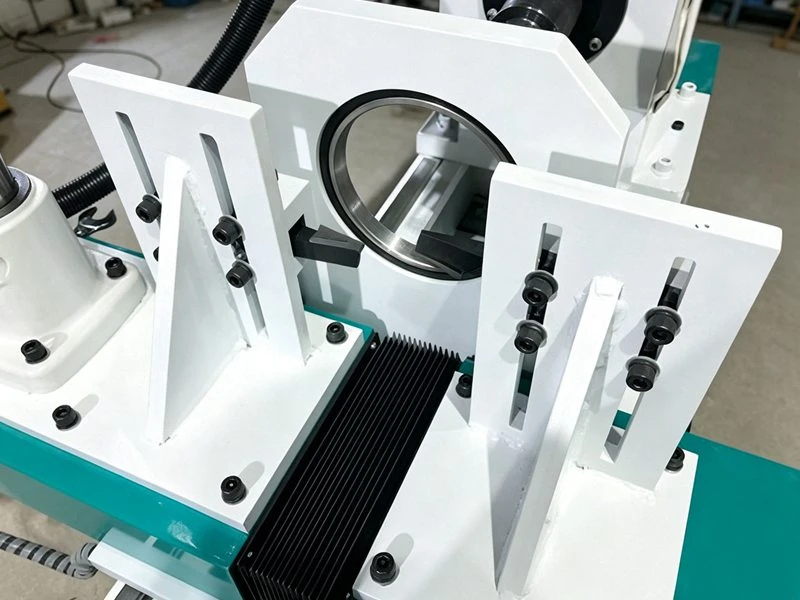

Single cutter holder+ double blades
Two cutters one is rough cutter another is fine cutter to make fast.

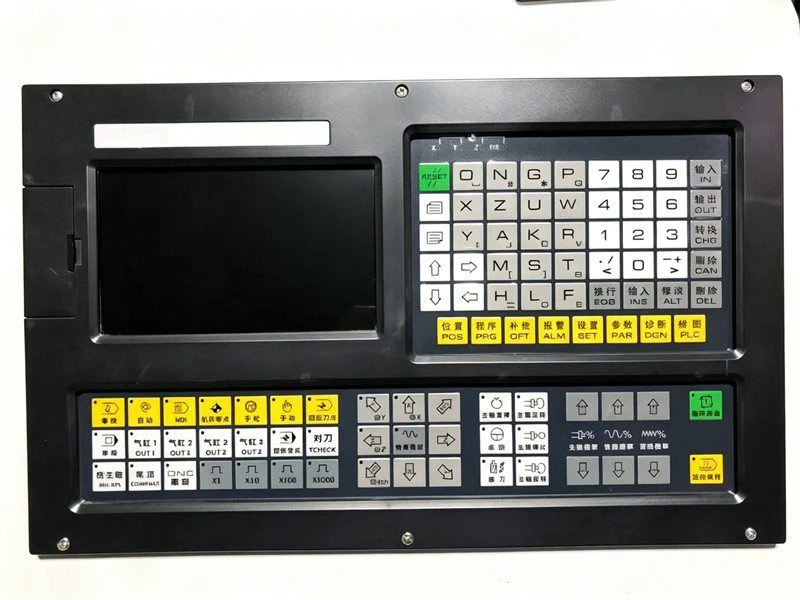

Panel controller system
It can be connected by USB, operated with LCD screen, with English suggestion and simple setting method, and very convenient operation.

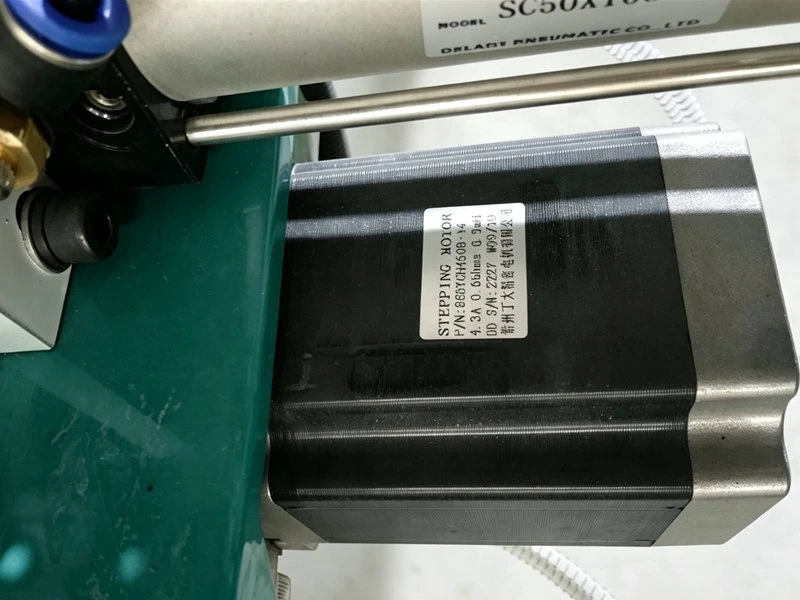

Stepper Motor
Power X-axis cross feed and Z-axis longitudinal travel of the tool rest, execute preprogrammed paths for tapered, twisted and contoured wooden workpieces.

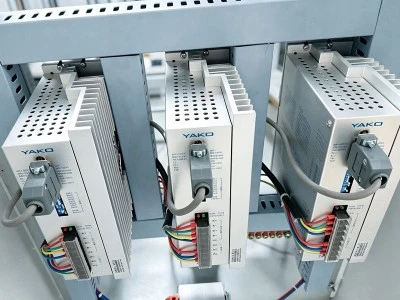

Stepper Drive
Runs programmed feed motions for repeated patterned turning in mid-range batch workshops.
Fuling Frequency Inverter
By changing the power supply frequency and adjusting the load, it can reduce the power consumption and reduce the processing cost.

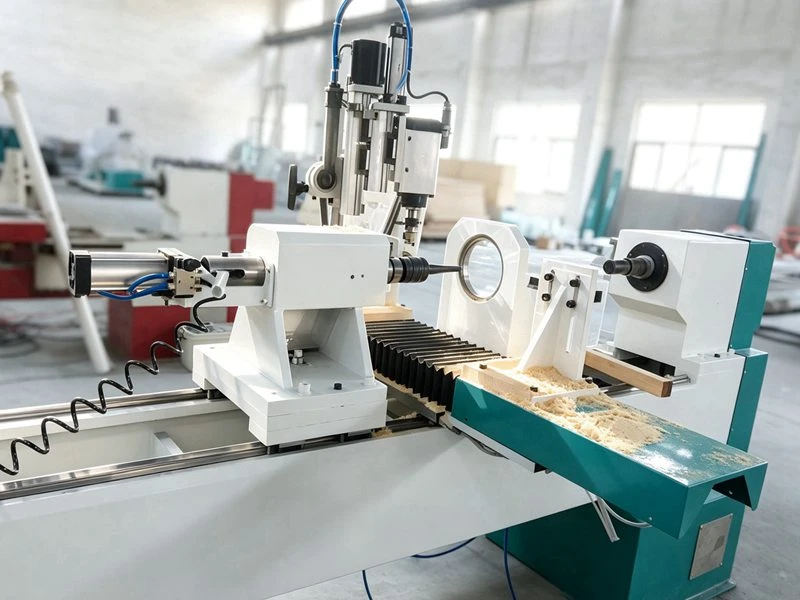

Single spindle
The top four-axis independent engraving spindle is with independent control, can be face milling, round engraving, flat engraving, slot milling.

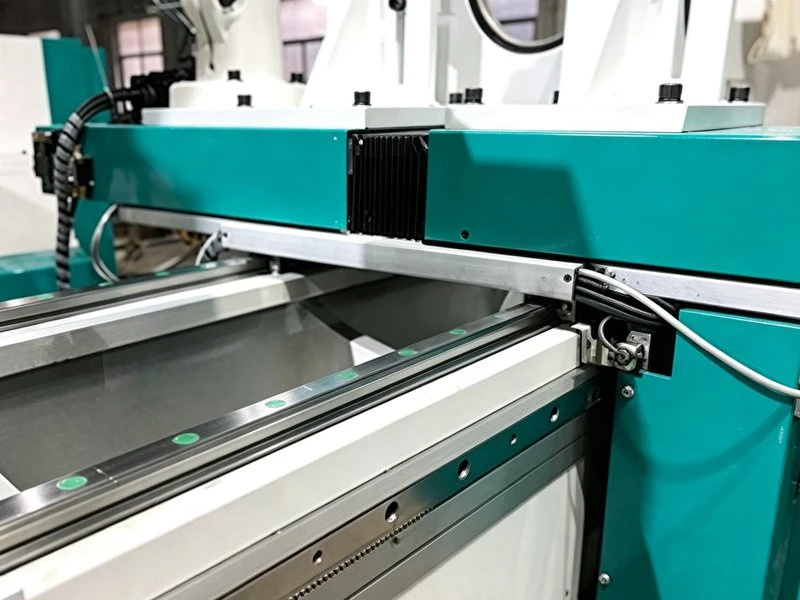

Square Liner Rail
Guides X/Z tool carriage travel for consistent cutting paths on long stair posts and curved furniture legs.

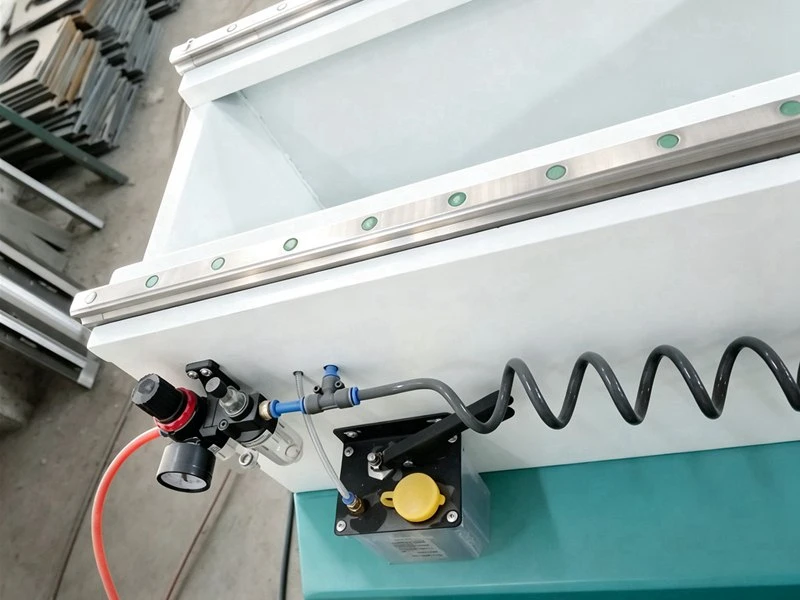

Manual oil lubrication
A manual grease/oil feeding structure designed for frequently moving mechanical parts.
Material Adaptability
Works for soft timbers (paulownia, pine), medium hardwoods (beech, rubberwood), premium dense hardwoods (walnut, oak, cherry). Adjust spindle speed and feed rate on the controller for different wood densities.
APEXTECH CNC wood lathe is mainly for staircases, stairway balusters, stairway newel posts; dining table legs; end table legs; sofa table legs; bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails; lamp posts; baseball bats, handles and so on.
Typical Operation Case (Stair Baluster Mass Production)
Import prewritten baluster machining code into the controller system;
Mount timber blank on the headstock chuck, activate pneumatic tailstock to secure the opposite end;
Stepper drive actuates motors to move the tool holder along square rails;
Automated rough cutting + fine finishing completes dozens of uniform balusters continuously.
Product Qualification
Packaging Details
- Standard plywood case, its compressive strength and bearing quality is better.
- The board area is bit, the soil structure is good, it is better in leak proofness and waterproof.
- When importing, the plywood case is with fumigation-free, the procedure is simple.
FAQ:
Q1: How long is your delivery time?
A: Generally, it is a week if the goods are in stock. Or it needs 15 working days if the goods are not in stock, it is according to quantity.
Q2: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. After shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q3: I don't know how to use after I receive Or I have problem during use, how to do?
A:1) We have detailed user manual with pictures and CD, you can learn step by step. And our user manual updates every month for your easy learning if there is any update on machine.
2) If have any problem during use, you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide door service if you need.
