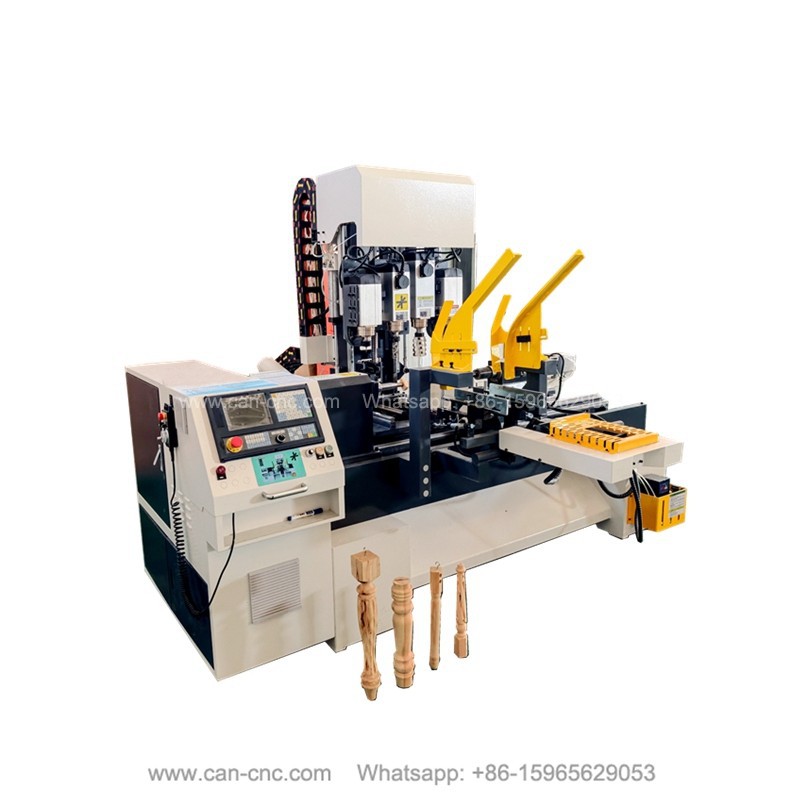

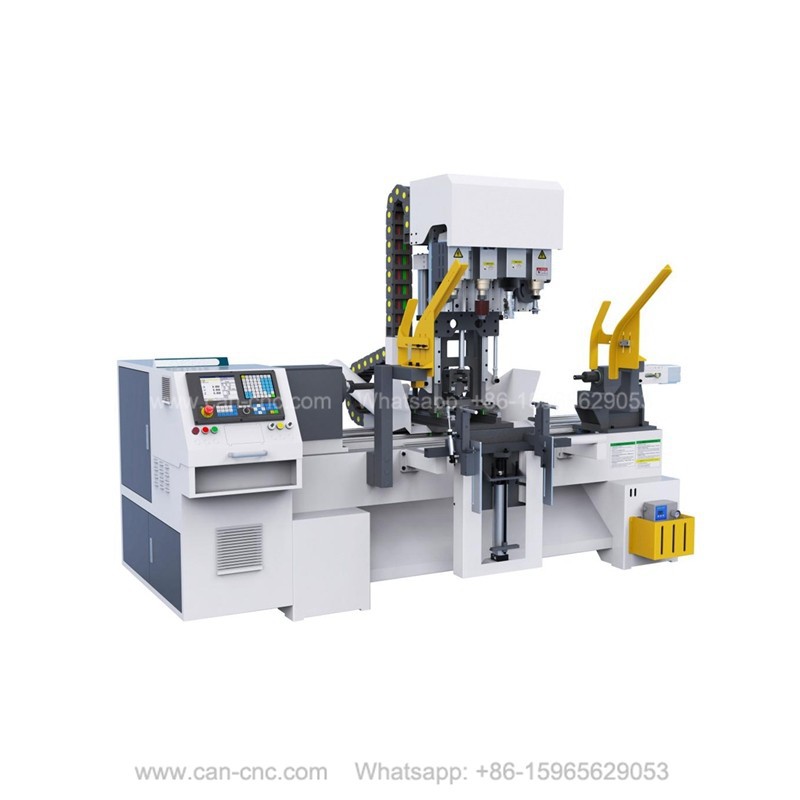

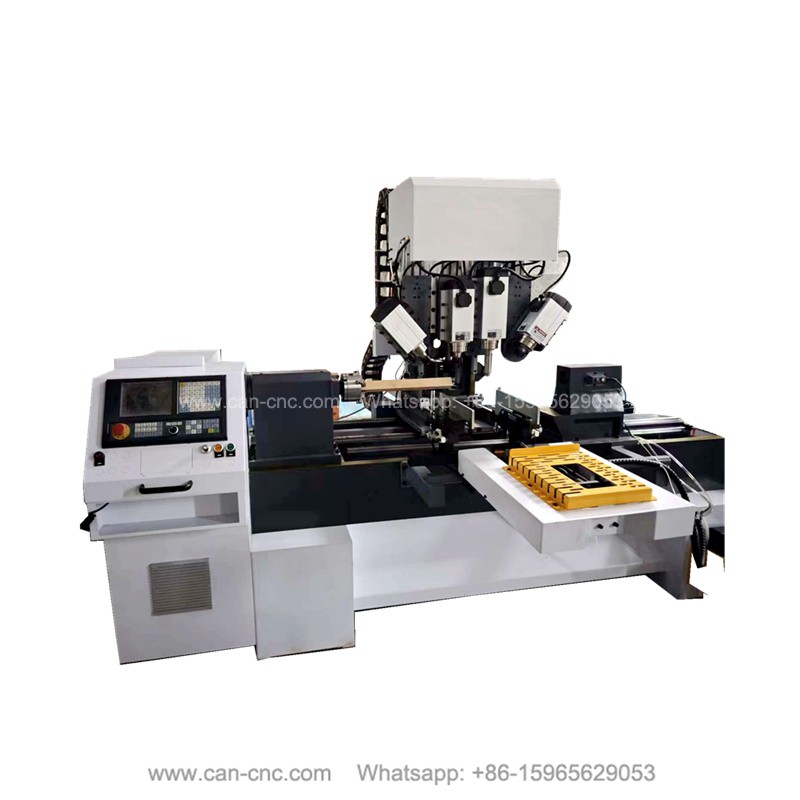

1. Brief Introduction:
A wooden planer drilling turning lathe machine is an important and essential machine in woodworking
processing industries. This multi-functional wood lathe includes the functions of turning, planing, drilling,
twisting and polishing, which bring the new ideas and thoughts to craftsmen, in order to create smooth,
precise, and marvelous shaped woodworks. And It enomously improves productivity while saving space
and invesment cost on the wood lathe.
2. Specifications:
|
Machine Model |
1220 Wooden Planer Drilling Turning Lathe Machine |
| Processing Max Diameter |
200mm |
| Processing Max Length |
1200mm |
| Spindles | Two 4.5KW-18000rpm adjustable angle electric spindles |
| One 6KW-18000rpm electric spindle | |
| One 7.5kw-12000rpm electric spindle | |
| Power Supply |
AC380V, 3 phase |
| X, Y, Z, A-axis feed modes | X/Y/Z axis driven by Newcore servo drive, A-axis driven by Alpha spindle servo drive. |
| Suitable Drawing software |
Solid cam/UG, nc. file |
|
Net Weight/ Gross Weight |
2000kgs/2100kgs |
| Machine Size | 3020mm*2220mm*2050mm |
| Package, Total Size (L*W*H) | Plywood cases, 3800*2250*2200mm,18.8CBM |
|
Whole machine weight |
2000kgs |
3. Features in details:
1.) Machine Bed: High-rigidity, one-piece cast machine bed, a heavy-duty, integrally cast structure featuring
a dual-rail design, engineered to provide both high structural rigidity and ample clearance for automatic
workpiece unloading.
2.) High-Power Servo Motor.
3.) Lubrication System: Features a high-pressure electronic oil pump (automated operation, delivering a precise,
metered volume of high-pressure oil per cycle) combined with an oil distributor (ensuring the uniform allocation
of lubricant to every lubrication point).
4.) Fully automated processing with integrated multi-step operations.
4. The process of operation:
1st: Drawing the designs by Solid cam/UG software, then input the nc. file that the wood lathe can read it.
2nd: Choose the suitable rough wood material that you need process, then begin to operate the wooden
planer drilling turning lathe machine by performing the planing, turning, drilling, milling and polishing, then
you can get your satisfied woodwork.
5. Factory Pictures:

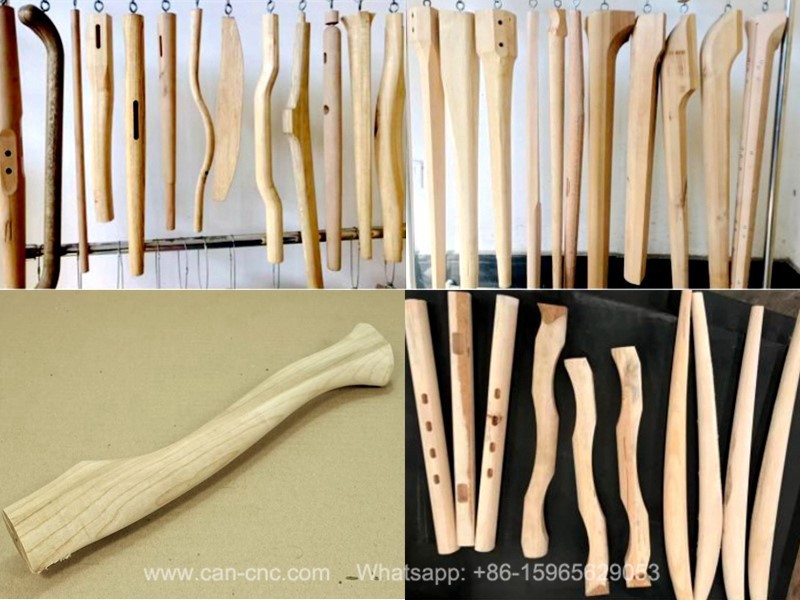

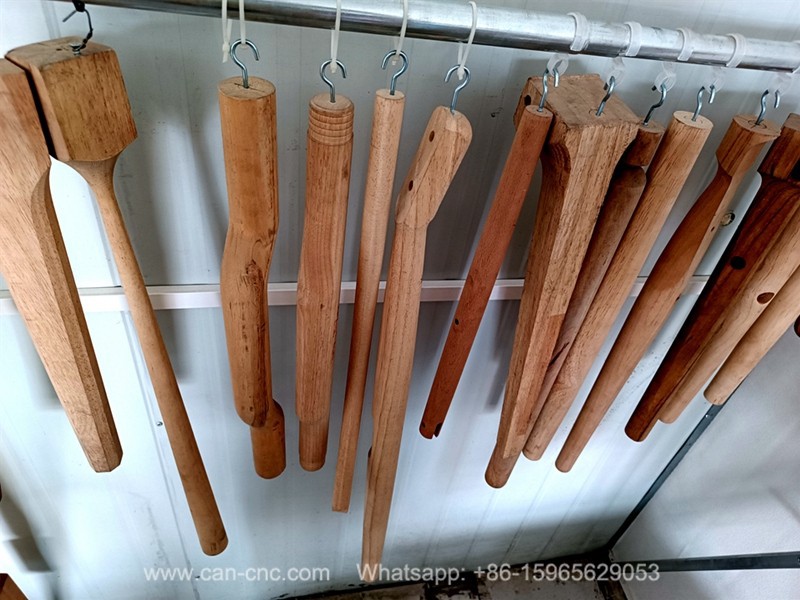

6. Applications:
The wooden planer drilling turning lathe machine is widely used in the furniture industry, cabinetry industry,
decorative wood elements industry, and the other kind wood crafts industry.
7. Good Reviews from Customers:
8. FAQ:
Q1. Do you have user manual of higher precision wood cnc lathe milling machine?
Yes, we have user manual with English, also with the Videos teaching.
Q2. How's your capacity in your workshop?
We can make more than 100 sets Machines within 1 month in our workshop.
Q3. Are your factory or trading company?
We're factory, and can do exporting ourselves and trading others if you want LCL.
Q4. This is the first time I use this kind of machine, is it easy operate?
There are English manual or guide video that show how to use machine. If there is still have any question,
we can talk from phone or Whatsapp.
Q5. Can you recommend a wood parts cnc milling machine to me?
Yes, in order to give you a suitable router machine, please tell me the max working area,
materials for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable CNC wood lathe will be recommended.
