Basic Wood Lathe For Table Legs

The basic wood lathe for table legs is designed to shape and cut wood into different sizes and shapes. It is useful for various woodworking tasks, including turning, hollowing, milling, and drilling function.
#This cnc wood turning machine equipment is equipped with 2 spindles, which can processing two same woodwork pieces at the same time, so largely improving the working efficiency.
#Cheap price.
#Free training.
#When the basic wood lathe for table legs processing two woodworks, the max diamter of each piece is 160mm, when this cnc lathe machine just process only one woodwork, the max diamter of the wood piece can be up to 300mm.

Send Inquiry

Introduction:

This basic wood lathe for table legs is a device that can create items such as stairway posts,designs

on wood,and more. A CNC wood lathe is operated by a panel which is controlled by the user.

CNC Turning Lathe machine is designed for cylindrical or conoid workpieces, for example pillar,

banister, chair legs,etc.

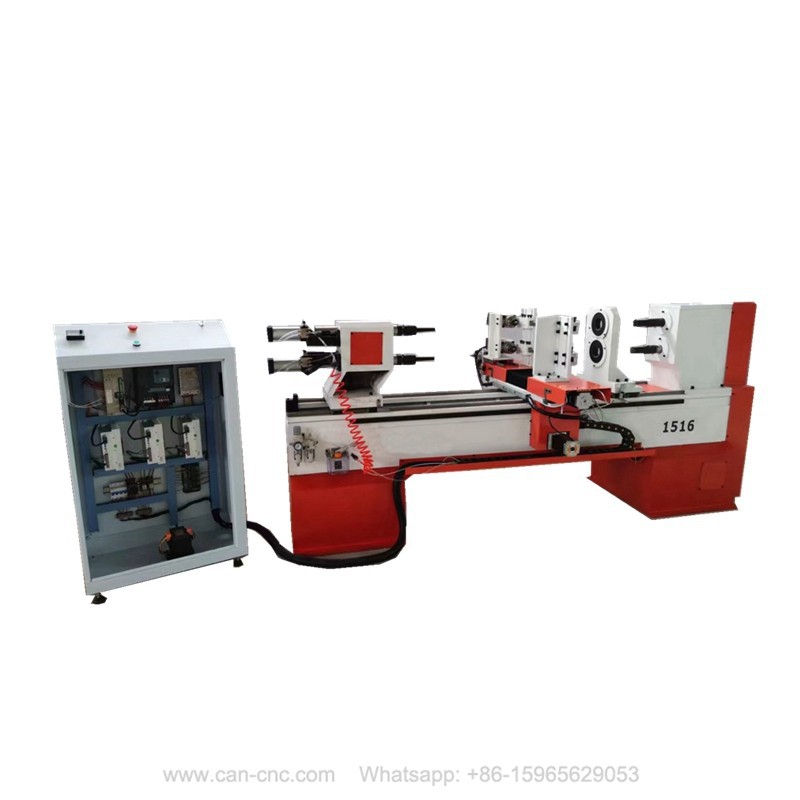

basic wood lathe for table legs 1

Specifications:

Machine Model	1516-2S Basic Wood Lathe For Table Legs
Processing Size	1500mm Length x 160mm Diameter
Max Diameter	Double Axis Work: Diameter can be 160mm
Controller System	Panel Controller
Drive	Yako 2d811 big drive
Square and Slider	Imported Taiwan Hiwin Square and Hiwin Slider
Main Motor Power	5.5KW
Frame	Whole Iron Casting
Frequency Inverter	Best frequency inverter/ Fuling frequency inverter
Guarantee	2 years for free, lifetime warranty

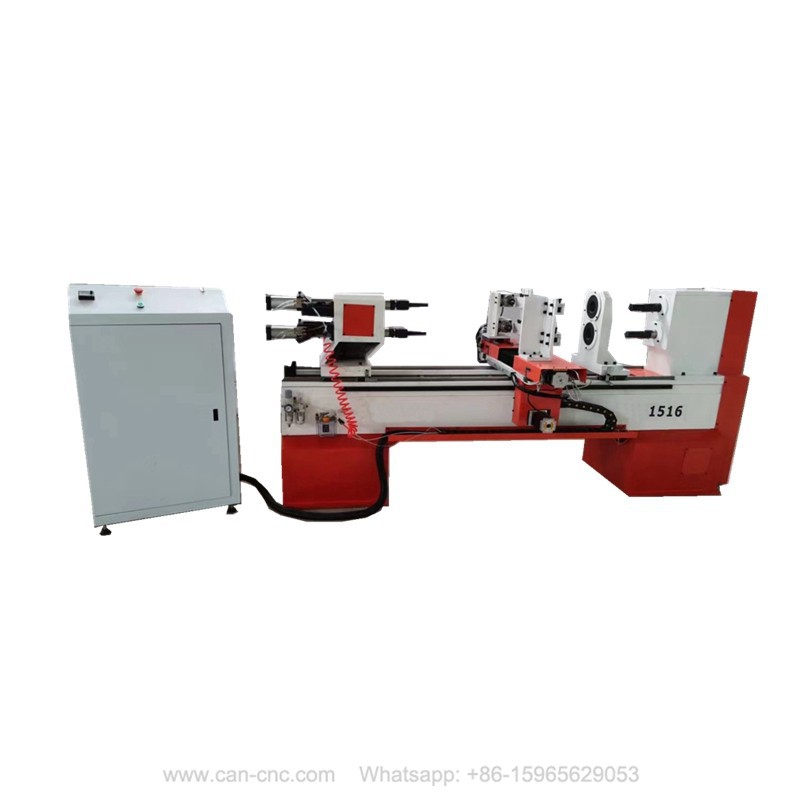

basic wood lathe for table legs details 4

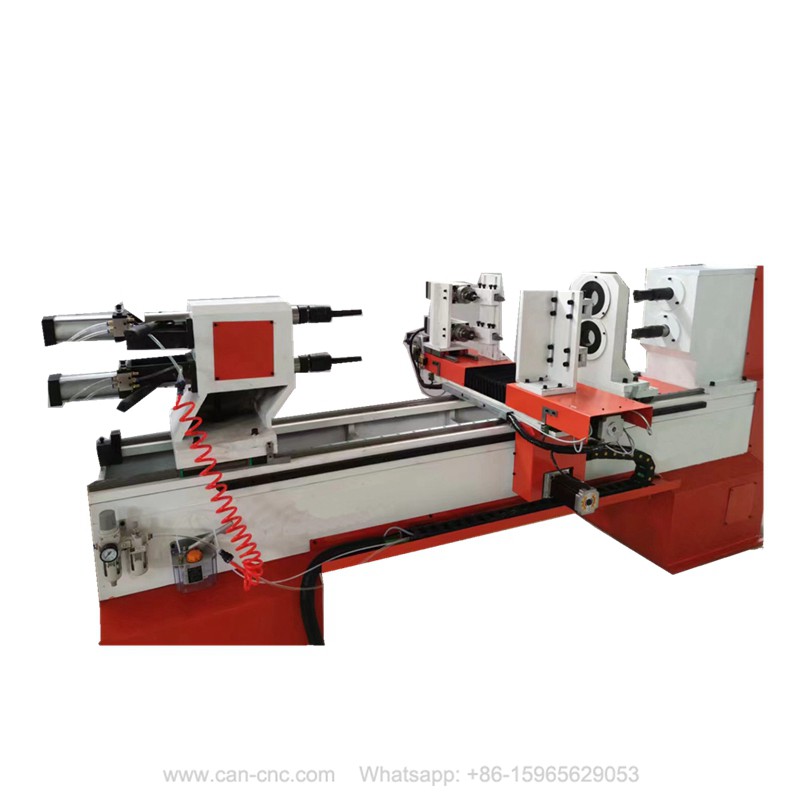

basic wood lathe for table legs details 5

basic wood lathe for table legs details 6

basic wood lathe for table legs details 7

Basic Wood Lathe For Table Legs Application:

For the production of solid wood furniture, solid wood staircase, wood columns, wood decorative, wood crafts,

such as rotating working pieces machining. Applies to furniture, wooden crafts manufacturing factory, staircases,

decorative etc. The final products include various cylindrical working pieces, bowl shape, tubular shape and

vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs,

washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.

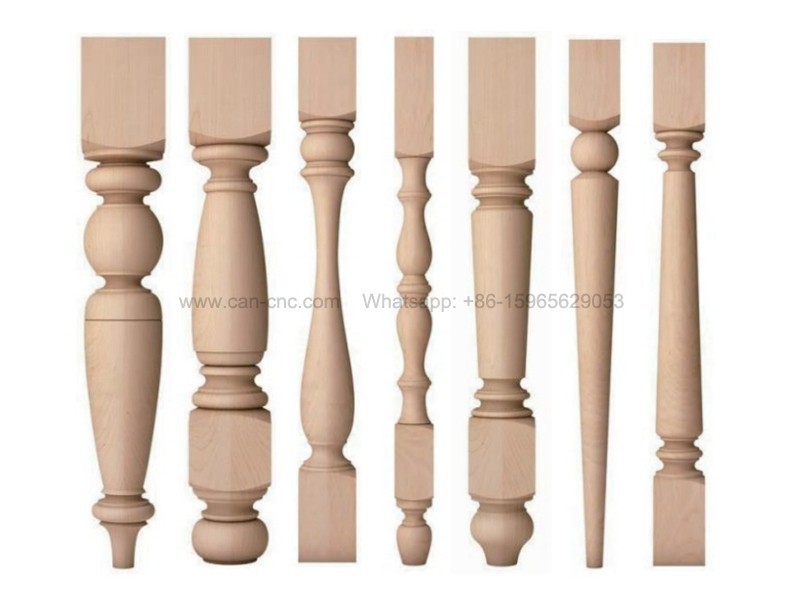

basic wood lathe for table legs samples 3

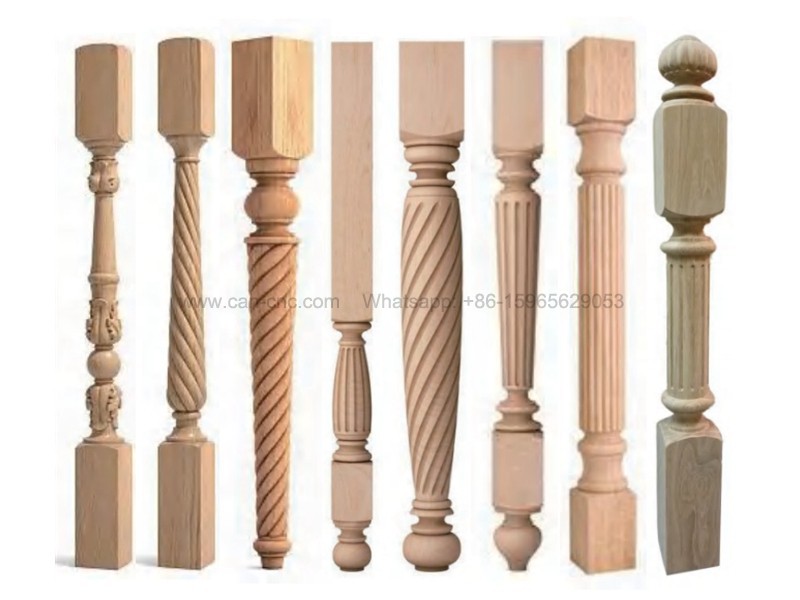

basic wood lathe for table legs samples 2
