Jinan APEX CNC Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of wood turning centre in China. With abundant experience, we warmly welcome you to buy advanced wood turning centre for sale here from our factory. Good service and quality products are available.
Production Introduction:

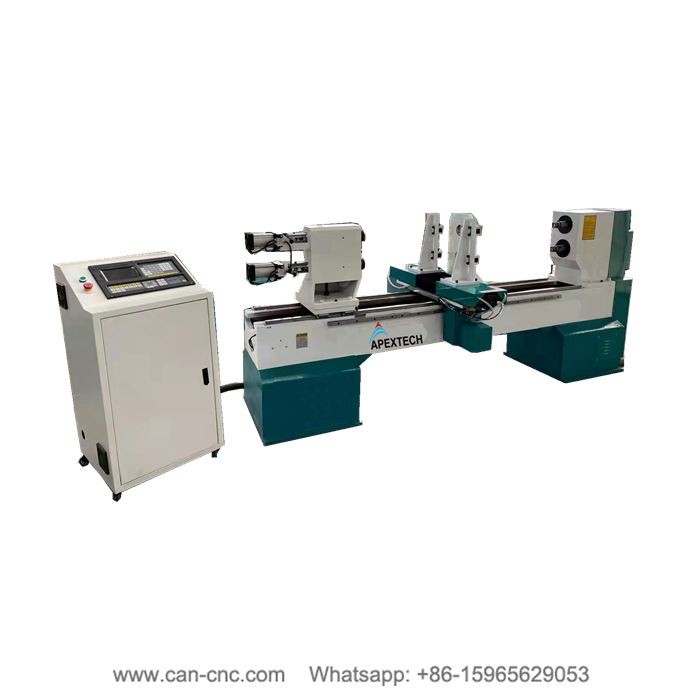

This kind of wood turning centre lathe has exquisite craftsmanship, with one-piece molding,
simple and easy to operate. Special used for wood turning and wooden cylinder engraving, for
table legs, stair railing (banisters), etc. The rotating speed can be adjusted by inverter also you
can see speed on control cabinet panel. And One time tool setting to finish the whole work piece.
Turning, broaching and engraving can be done with one machine by high speed.
The equipment adopts the thimble clamping method to fix the workpiece, and the processing
method of vertical milling and routing, the equipment can only process the strip workpiece

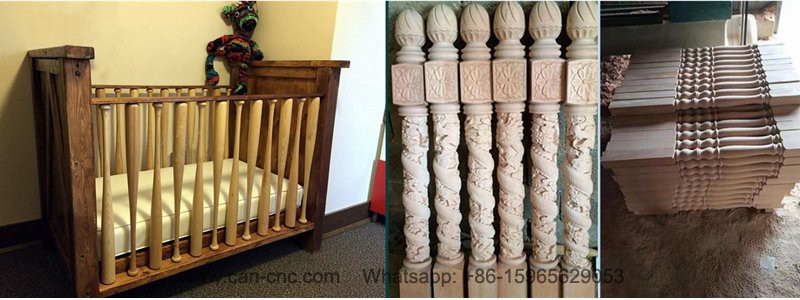

whose center points at both ends of the workpiece are on the same parallel line (the workpiece
as shown in the figure below), and can process the workpiece. Processes such as vertical milling,
alternate drilling of two router spindles, grooving, and forming knife forming are carried out.
Product Specification:
Machine Model | 1516-2 Axis Wood Turning Centre Machine |
Processing Size | 1500mm Length x 160mm Diameter |
Max Diameter | Single Axis Work: Diameter can be 300mm Double Axis Work: Diameter can be 160mm |
Controller System | LR Panel Controller / DSP Remote Controller |
Drive | Yako 2d811 big drive |
Suitable Material | All kinds of wood can be cut, processed and carved, such as oak, beech, birch, teak, pineapple, red oak, sapele, rosewood, etc. |
Guarantee | 18 months for free, lifetime warranty |
Main Structural Features of the Equipment:
1. The machine bed, slide plate and base are all made of low-stress steel structural parts,
and fully aging treatment is carried out to ensure the accuracy and stability of the machine
tool. The head box and tail box are cast structures.
2. Transmission mode: X axis: servo motor + gear + rack Y axis: servo motor + synchronous
pulley + synchronous belt + lead screw Routers up and down: servo motor + coupling + lead screw.
3. The main shaft has its own lubrication-free system, and the main shaft is equipped with
independent fan cooling, temperature control, alarm and automatic protection devices.
Details Pictures:
Yako 2d811 big drive is with higher stability and Anti-interference ability.
Heavy Duty Frame: ensure the machine work stability.
Double-power Chuck: The tail spindle motor drive drives the two chucks to rotate at the same
time, providing powerful power.
Two bow covers: The two bow covers tighten the wood at the same time to prevent the wood
from shaking.
25mm Hiwin square rail with long lifespan.
Higher quality Parts provided.
Package, Deliver, Shipping:
1.Machine packaged in fumigation-free wooden case.
2. Inner package: Stretchy film and plastic film for humidity and dustproof. We can package
according to your requests.
FAQ:
Q1. How to get the most suitable wood turning lathe with best price?
Please tell us the materials you want to process. How to work on it? turning? carving? slotting?
or other? What’s the max size of the materials? (Length? Width? Diameter?)
Q2. Do you have user manual of wood turning lathe?
Yes, we have user manual with English, also with the Videos teaching.
Q3. If we don’t know how to use the cnc wood lathe, can you help us?
Yes, we will, if you come to APEXTECH, we will offer free training until you can use the machine
freely. If you are busy, we will arrange the special engineer to your workshop with door-to-door
service, but you need to bear some fee, like tickets, hotel and meal.
