As technology has advanced, the demands of the sofa legs making becomes higher by the manufacturers.
So how we can become making sofa legs more efficient and precise, that's due to the sofa leg cnc making
machine, we also call it wood turning lathe.
The wood turnign lathe is able to produce sofa legs with incredible accuracy and consistency, to make sure
each piece is same and the highest quality.
Specifications:
|
Machine Model |
1030 Sofa Leg Cnc Making Machine |
| Max Processing Length | 300mm |
| Max Turning Length |
75mm(Square wood) |
| Main Function |
Blade turning and formating function(Include 1 set customerized blade) |
| Material Loading |
Automatic Feeding function |
| Air Pressure |
0.6-0.8Mpa |
| Power Supply |
AC380V, 3 phase, 50hz |
| Max feed rate | 2000mm/min |
| Min setting unit |
0.01cm |
| Transmission type |
Ballscrew for XZ axis, gear for Y axis |
| Guide |
Square rail |
| Main Servo Motor power | 4kw |
| Controller system | Panel controller system with LCD screen |
|
Whole machine weight |
800kgs |
|
Guarantee |
1 year for free, lifetime warranty |

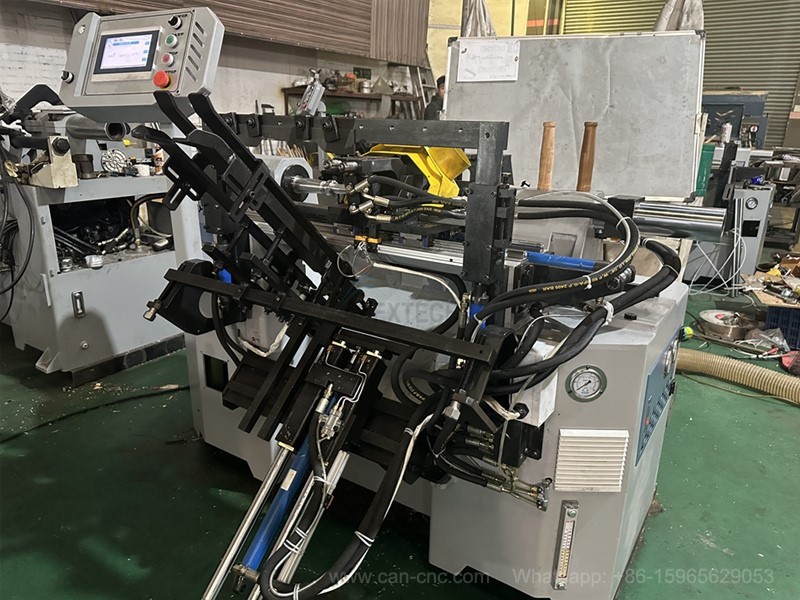

This is the auto feeding function: it can load the square wood with fast speed, saving time and improving the
processing time, therefore saving the labor cost and achieve the larges intereset for the boss.
The machine also can be installed the dust collector system, so that the sofa leg cnc making machine can keep
clean during the machine processing.
The sofa leg cnc making machine is equipped with turning blades, 1st blade turning and 2nd turning are also
working almost at the same time, so the processing wood speed is very fast.
It also has the formating big blade to process the sofa legs at last. This lathe can make 1 piece wood leg just
for 10 seconds, so it can finished 6 wood legs at one minute.
Sofa leg cnc making machine samples:
It is suitable to make all kinds of sofa legs, table legs with differernt designs.
Package and Delivery:
Export equipment is uniformly packed in standard wooden boxes. Goods from coastal countries are transported
by sea to designated ports in destination countries, and goods from landlocked countries are transported by
train or car to destination cities.
Good Reviews from Customers:
Our Factory:
Our Certificate:
FAQ:
Q1. How To Get The Most Suitable Wood Turning Lathe With Best Price?
Please tell us the materials you want to process. How to work on it? turning? carving? slotting? or other?
What's the max size of the materials? (Length? Width? Diameter?)
Q2. Do You Have User Manual Of Wood Turning Lathe?
Yes, we have user manual with English, also with the Videos teaching.
Q3. If We Don't Know How To Use The Cnc Wood Lathe, Can You Help Us?
Yes, we will, if you come to APEXTECH, we will offer free training until you can use the machine freely.
If you are busy, we will arrange the special engineer to your workshop with door-to-door service, but you
need to bear some fee, like tickets, hotel and meal.
