Hobby Woodworking Craft Making Turning Lathe
video
Hobby Woodworking Craft Making Turning Lathe

Hobby Woodworking Craft Making Turning Lathe

Model: 1020-3 Axis hobby woodworking craft making turning lathe
#Processing Range: 1000mm x200mm
#Max Turning Length: 1000mm,1500mm, also can be 2000mm, 3000mm etc.
#Max Turning Diameter: 200mm
#Operation Controller: Intelligent Controller
#Main Function: Only Turning.
#Working Voltage: 220V/380V, 3 phase.
#Training for free.
#Suitable Application: It is suitable for processing all kinds of woodworking craft, stair column, curved round, vase, table and chair legs. European-style furniture Roman pillars, wooden hangers and face plates, cylindrical and curved, spherical and other complex shapes of rotary wood products or semi-timber products.
Send Inquiry

Product Introduction

Introduction:

This kind of hobby woodworking craft making turning lathe can realize fully automated operation, one-time

finished products, greatly improve work efficiency.

The hobby woodworking craft making turning lathe is mainly used for processing columns, rolling pins and

other handicrafts with cheap cost and little space.

It is with the main following characteristic:

1). Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating

stress relief, so the lathe body is stabilized and will not be deformed forever.

2). Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.

3).Adopting advanced Intelligent system with USB connection, operated with the handle, convenient operation.

4). Adopt helical square guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack.

hobby woodworking craft making turning lathe details 2

Parameters:

Machine Model

1020-3 Axis Hobby Woodworking Craft Making Turning Lathe

Place of Origin

China

Processing Size

1000mm Length x 200mm Diameter

Max Diameter

Single Axis Work: Diameter can be 200mm

Controller System

Panel Controller

Drive

Yako stepper

Square and Slider

Imported Taiwan Hiwin Square and Hiwin Slider

Machine Weight

1400KG

Frame

Whole Iron Casting

Ballscrew

Imported TBI25 Ballscrew

Machine Size

3100x1300x1700mm

Package Size

3300x1550x1900mm

Guarantee

2 years for free, lifetime warranty



hobby woodworking craft making turning lathe details 1

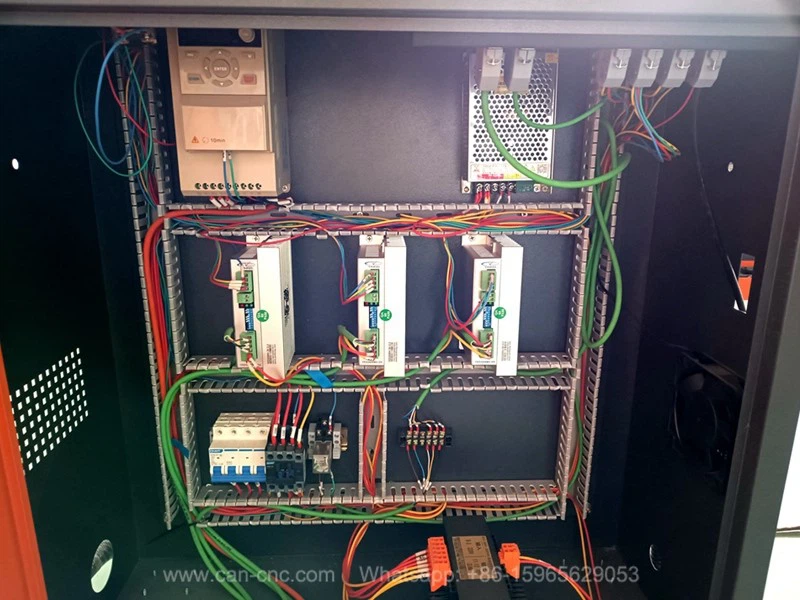

hobby woodworking craft making turning lathe details 5

hobby woodworking craft making turning lathe details 8

hobby woodworking craft making turning lathe details 6

Samples:

The hobby woodworking craft making turning lathe is mainly used for processing various stair columns,

Roman columns, table and chair legs, washbasins, wooden vases, wooden column tables, sticks, wooden

furniture, children's bed posts, etc. It can also process boards, goblets, bottle caps, cup lids, cup lids, handles,

rolling pins, flutes, flutes, suonas, cello accessories, etc.
The lathe machine is especially suitable for mass production of small and medium-sized woodworking enterprises,

and the shape can be flexibly set at any time, and the processing style can be quickly changed.

hobby woodworking craft making turning lathe samples

wooden rolling pin making hobby woodworking craft making turning lathe 2

hobby woodworking craft making turning lathe samples 1
