The wooden umbrella handle turning lathe is a machine tool that is used for the shaping and cutting of wood
into various shapes and sizes. It is a mechanical device that rotates a piece of wood on a spindle, while a cutting
tool shapes the wood as it spins on the lathe. The woodworking lathe is specially designed to produce high-quality
umbrella handles made from different types of wood such as maple, oak, ash, and pine.
The Product Features:
# 1. Adopt large-section imported linear guides, maintenance-free and self-lubricating for life.
# 2. Professional electric spindle in the industry, the high speed of the spindle can reach 18000RPM.
# 3. Simple operation: touch-type human-machine interface, intuitive operation.
# 4. High configuration: The main core control components adopt international first-line brand components,
with stable performance and long service life.
# 5. High precision: the movement adopts high-precision linear guide rail, with high-precision helical gear
transmission, high precision.
Parameters:
|
Machine Model |
Wooden Umbrella Handle Turning Lathe |
|
Equipment Processing Size |
Max Diameter: 70mm x 700mm Length |
|
Controller System |
Panel Controller with English version |
|
Control electrical components |
Zhengtai Brand |
|
Spindle control inverter |
High-power spindle inverter with 5.5KW |
|
Movement execution block |
Tool holder: Precision Linear Guide Screws and Servo knife station |
|
Movement control system |
Servo model |
|
Machine power |
7.5kw |
|
Working Voltage |
380V, 3 phases |
|
Machine Size |
2600x1300x1500mm |
|
Package Size |
3200x1550x1900mm |
|
Whole machine weight |
1200kgs |
|
Guarantee |
2 years for free, lifetime warranty |
The back pictures of the wood cnc lathe for making wooden wooden umbrella handles.
The front head for processing the round wood: there are 2 kinds of tools, one round tool, one fine tool.

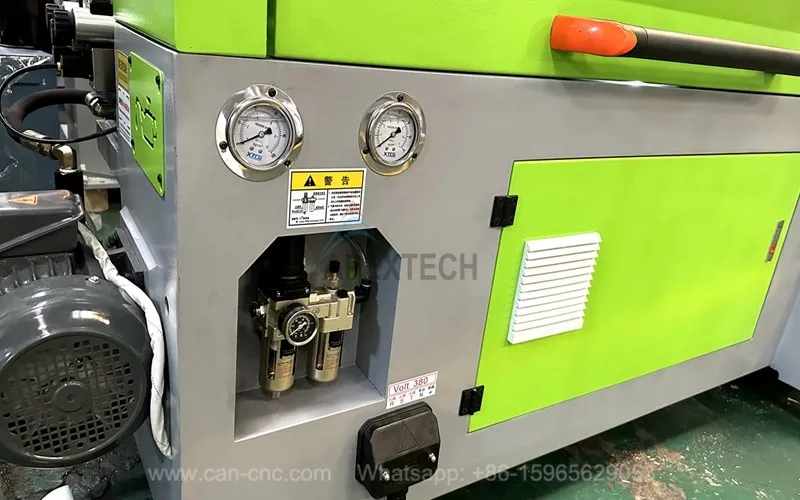

The pressure gauge: you can see the change of the pressure gauge any time so that to inspect the wood lathe
wooking smoothly or not.
Controller with LCD screen: you can see the operation process during the processing with English Language.
The position of connecting the power: 380v, 3 phase or 220v, 3 phase are both suitable.
If need the speciall power source, please inquiry us.
wooden umbrella handle turning lathe Dispatch:

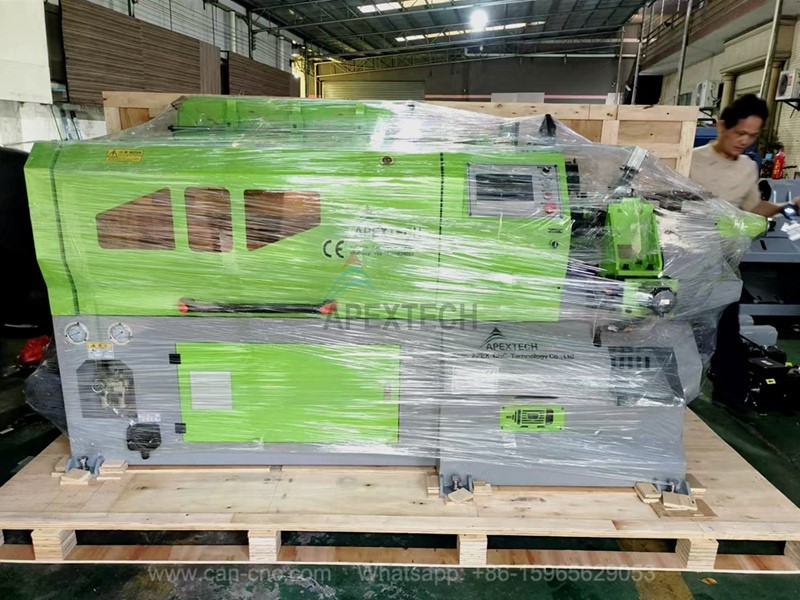

Inner packaging:
Cover the entire lathe with professional waterproof plastic film;
Waterproof plastic film packaging with foam protection at every corner.
Outer packaging:
Professional plywood case; Save as much space as possible for container loading.
Transportation:
We support sea, air, land and express; You can choose the most suitable means of transport.
Samples:
Good Reviews from Before Customers:
Our Factory:
Our Certificate:
