Jinan APEX CNC Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 4axis wooden turning lathe carving machine in China. With abundant experience, we warmly welcome you to buy advanced 4axis wooden turning lathe carving machine for sale here from our factory. Good service and quality products are available.

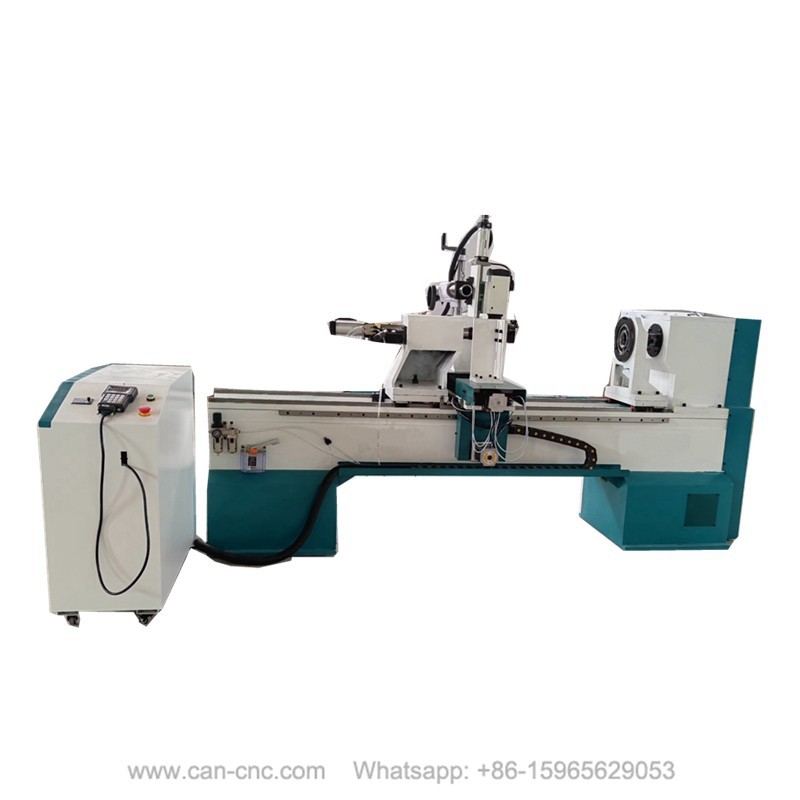

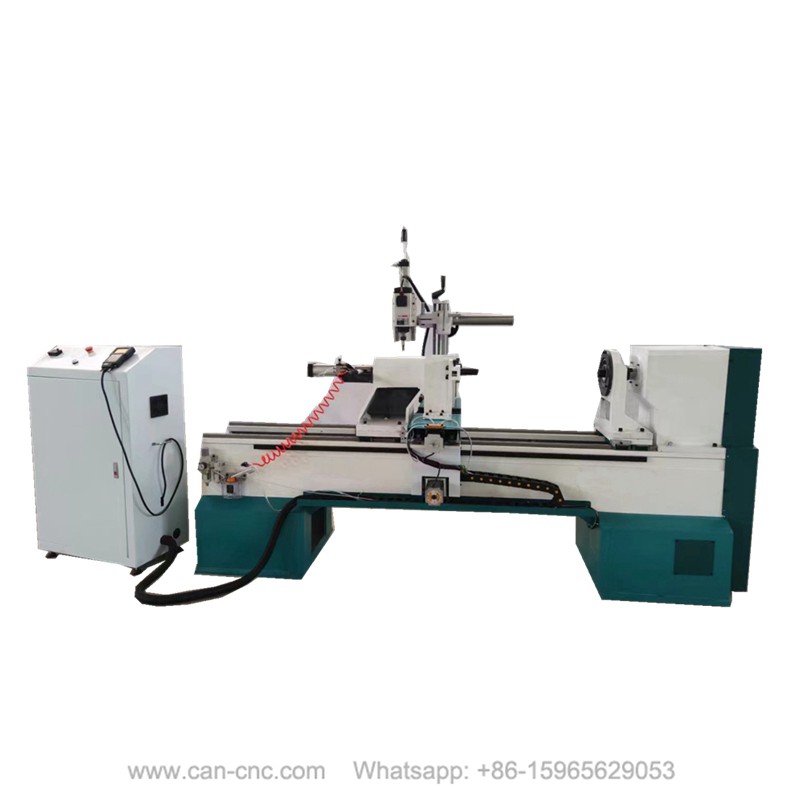

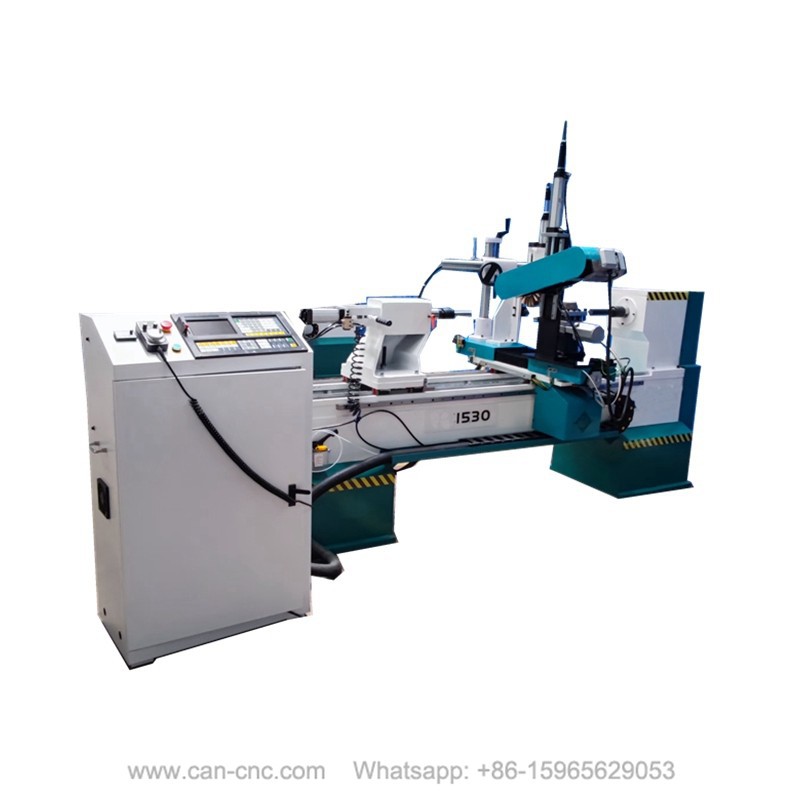

Our 4-axis wooden turning lathe carving machine is a composite CNC woodworking equipment combining turning, side milling, inclined carving and drilling. Different from ordinary 2-axis lathes, the extra spindle axis supports irregular curved & beveled decorative wood parts, widely adopted for custom furniture components, stair balusters, home decoration crafts and outdoor landscape woodwork. It perfectly matches mass production demands from decoration processing workshops and OEM woodwork factories.
This wood cnc lathe can not only turn on the woodwork, but also can engrave on the wood materials. If you want to carve on the cylinderical samples, so this kind multi function wood lathe is suitable to you. By using the double blades for turning with fast speed, then you can directly use the vertical spindle to do the 4 axis wood engraving work.
The 4 axis wooden turning lathe carving machine is a valuable tool for artists who work with wood. It offers several benefits, including precision, speed, and versatility. With practice and skill, artists can use the machine to create beautiful and unique wooden sculptures, furniture, and decorative items. By combining creativity with technology, the cnc wood lathe has made it easier than ever before to create stunning works of art from wood.
Specifictions:

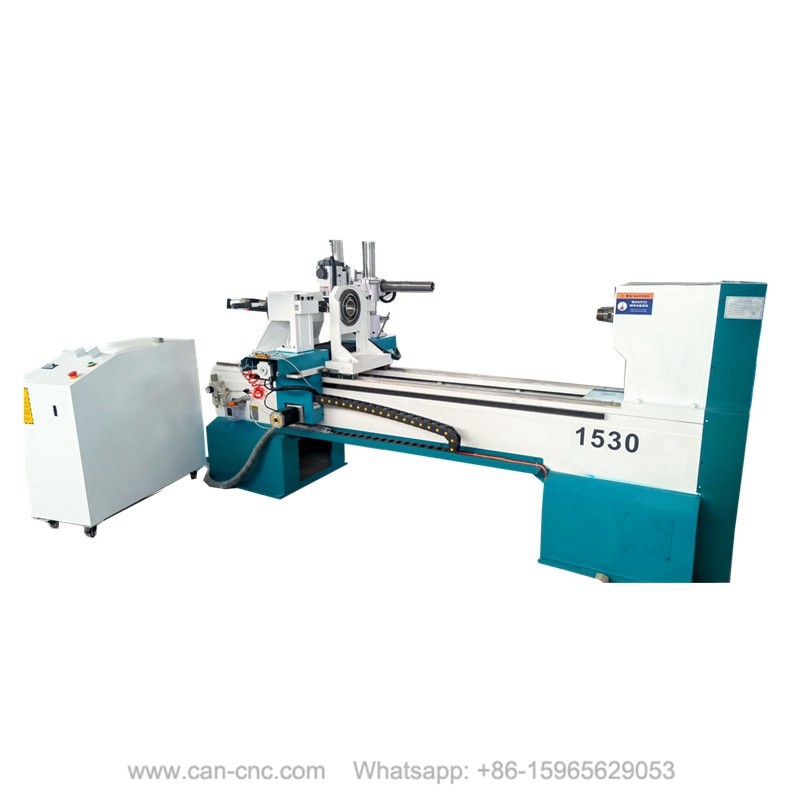

| Lathe Model | 1530-4axis Wooden Turning Lathe Carving Machine |
| Max Processing Size | 300mm diameter x1500mm length; Customized |
| Driving system | Stepper motor and drivers |
| Quantity of Blades | 2 |
| Spindle | One 3.5kw aircooling spindle with 4axis engraving function |
| Max Feed Speed | 35mm/s |
| Spindle Speed | 0-3500rpm |
| Accuracy | 0.001mm |
| Control System | Intelligent Controller System |
| Support Command | International G Code |
| Voltage | 380V/220V |
| Machine Dimension | 3100x1400x1500mm |
| Weight | 1500kgs |
Configurations with details
stepper motor
High-response stepping motor drives auxiliary axis feeding for side carving & drilling tasks. Stable rated running parameters ensure repeat positioning accuracy.
Yako Stepper drive
Integrated heat dissipation fins avoid overheating during long continuous batch production, neatly arranged wiring and status indicators simplify troubleshooting for multi-axis turning & carving.
Mid-workpiece Support Stand
Height adjustable, anti-vibration support for long wooden parts, rail dust protection.
Self-developed CNC System
Compatible DXF/NC/TXT files, works with mainstream CAD/CAM software, beginner-friendly operation logic.
Cast Iron Machine Bed
Thick gray cast iron integrated bed structure, strong vibration damping during high-speed carving & turning, avoid tool marks on delicate decorative workpieces.
Pneumatic Air Source Processor
Filter debris/water, stabilize air pressure, lubricate pneumatic cylinders.
Linear Guide Rails
It supports smooth horizontal travel of turning and carving spindles with excellent repeat positioning accuracy, effectively eliminating vibration marks during fine decorative profiling.
Manual Lubrication System
The transparent independent oil reservoir lets operators check lubricant level visually and refill conveniently for routine maintenance.
Spindle for carving, slotting, twisting, milling, drilling function
The spindle clamps wood blanks and drives steady rotation for turning. Indexable models support angled milling, side drilling and relief carving, ideal for custom decorative stair spindles & furniture legs.
Samples Applications

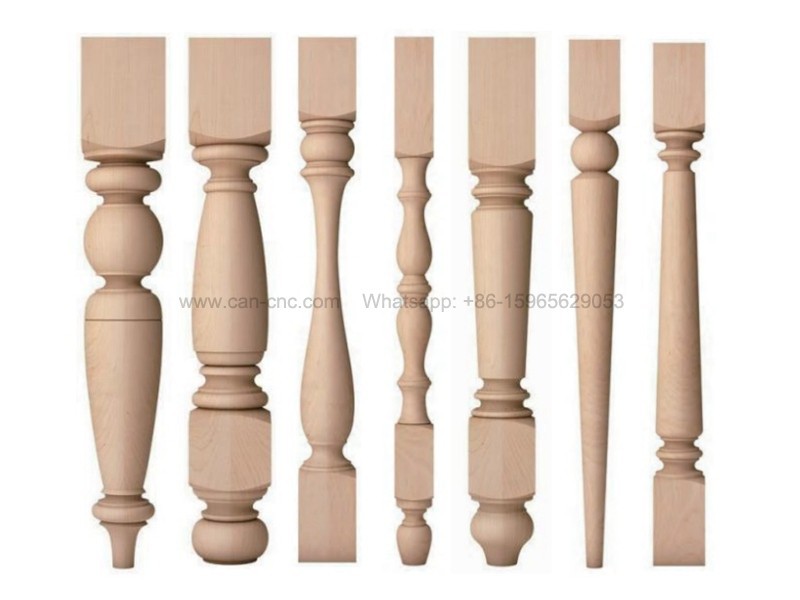

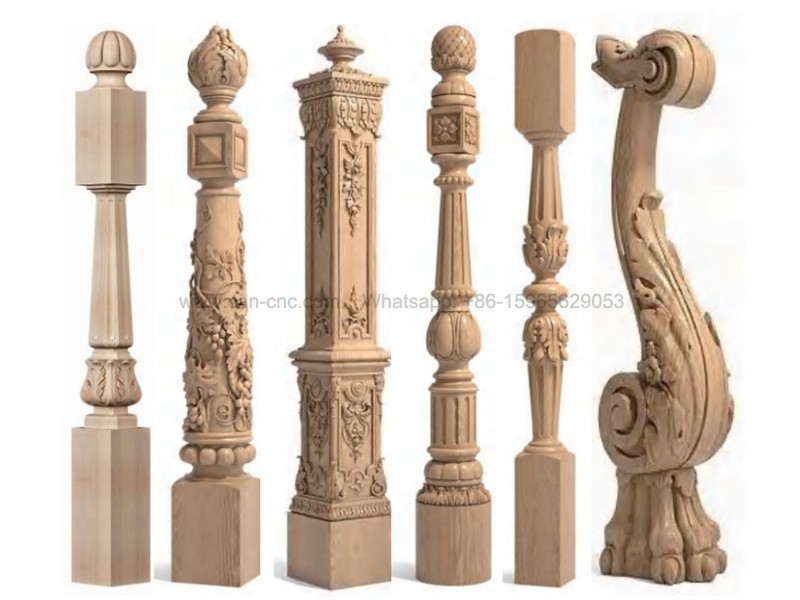

Stairway posts, table legs, sofa legs, bar stool legs,Roman column, washstand, wooden vase, baseball bat, chair arm posts designs on woodworks.
- Furniture parts: table legs, bed posts, cabinet feet.
- Interior decoration: stair balusters, partition columns, Roman column bases.
- Handicrafts: wooden vases, pen blanks, candle holders, beads.
- Outdoor garden: fence posts, pergola supports, landscape stakes.
- Musical instrument small wooden fittings.
Reviews from Customers
FAQ-do you have any question?
- 1. What products can a 4-axis wood turning carving machine make?
Answer: It processes table legs, stair balusters, carved decorative columns, wooden candle holders, vase blanks, garden guardrail posts and other rotary + special-shaped decorative wood pieces.
- 2. Can this machine complete turning and carving at one time?
Answer: Yes, integrated multi-spindle design realizes one-clamp multi-process machining, no secondary clamping required.
- 3. What software formats does the control system support?
Answer: DXF, NC, TXT, DBF, compatible with mainstream furniture design CAM tools.
