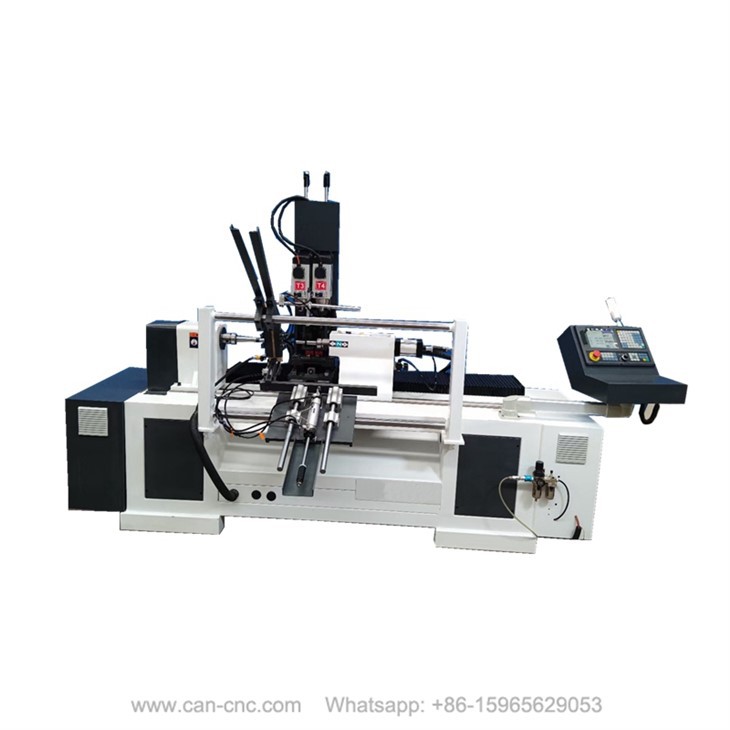

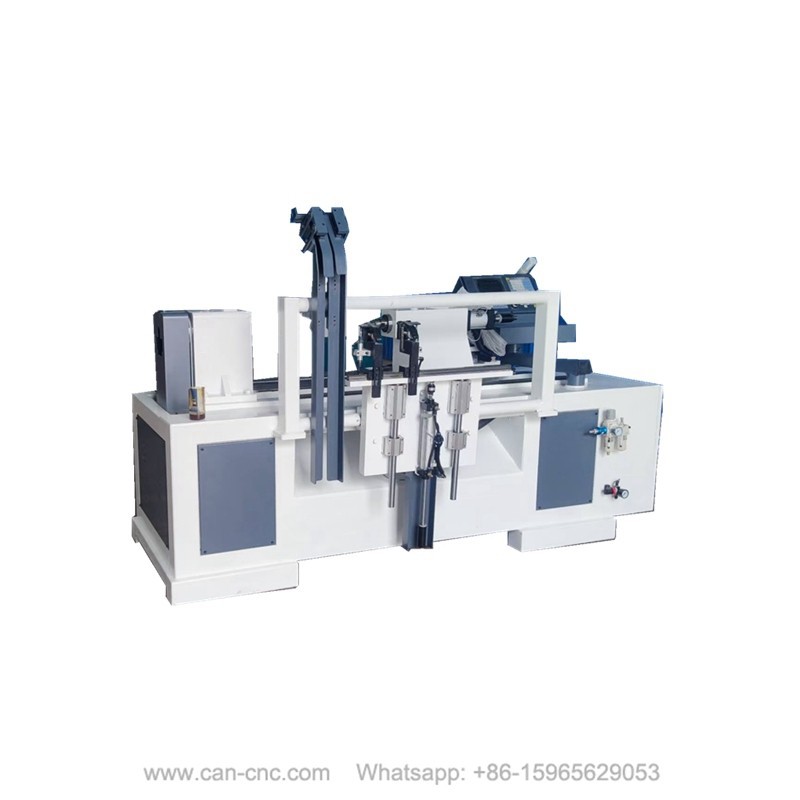

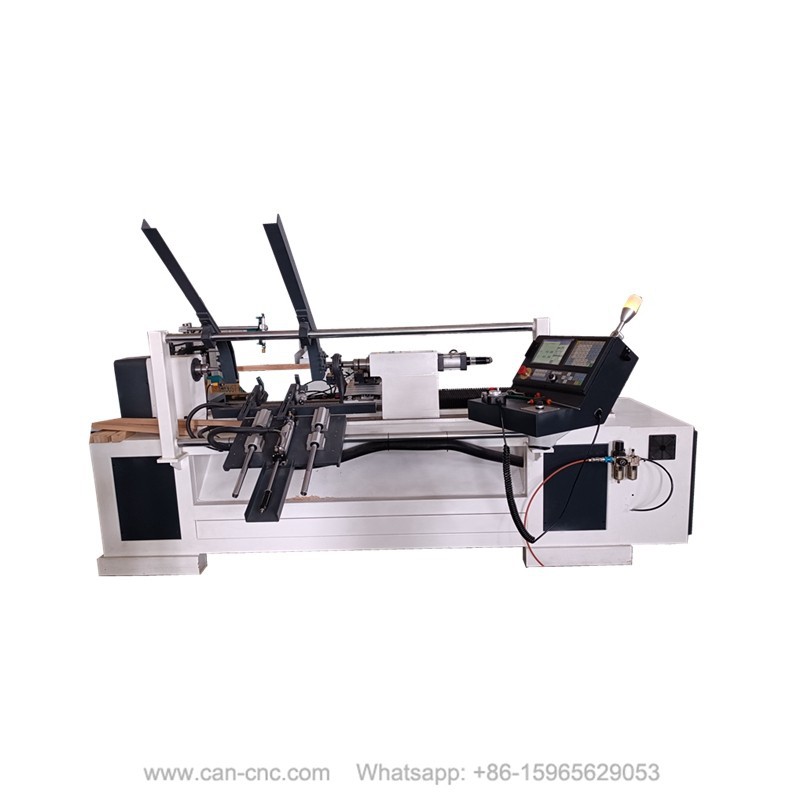

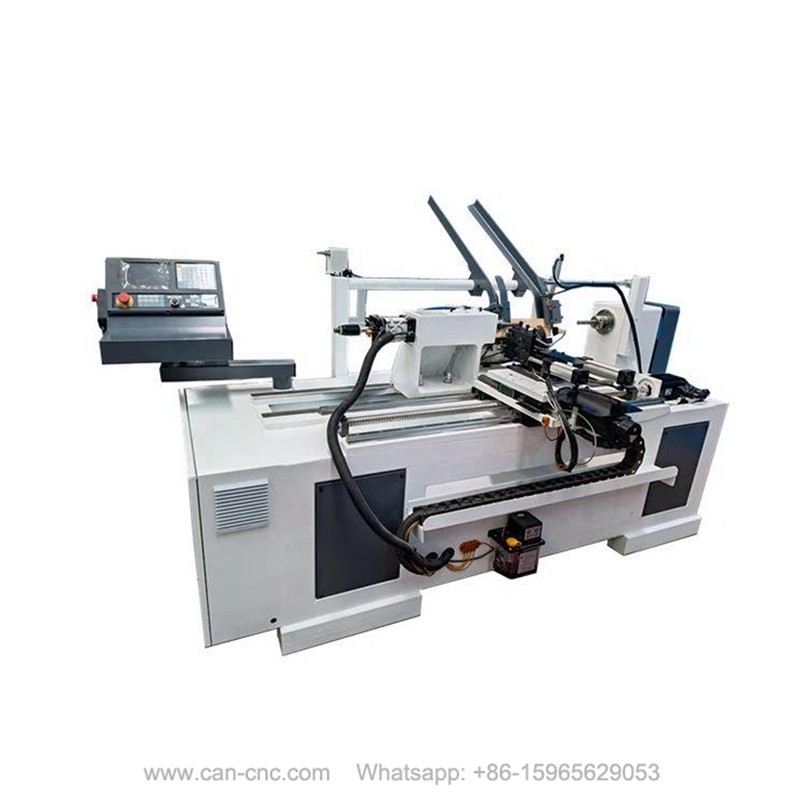

Automatic Barley Twist Lathe Machine

The automatic barley twist lathe machine has several features that make it ideal for barley twist making.
*Firstly, the wooden CNC machine has a motor that rotates the wooden material inserted into it at a set speed. This rotation allows the craftsman to shape the wood evenly and consistently.
*Secondly, a wood lathe machine has different attachments that allow the craftsman to turn to finish the wooden material. These attachments include cutting tools, chisels, gouges. The use of these attachments makes it easier to shape the staircase spindles and table legs and achieve a smooth finish.
*Thirdly, the wood lathe machine has adjustable tailstocks and tool rests that enable craftsmen to control the depth and width of the cuts made on the wood material. This control is crucial in creating uniform bed legs that match the design specifications.

Send Inquiry

Jinan APEX CNC Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of automatic barley twist lathe machine in China. With abundant experience, we warmly welcome you to buy advanced automatic barley twist lathe machine for sale here from our factory. Good service and quality products are available.

Simple Introduction:

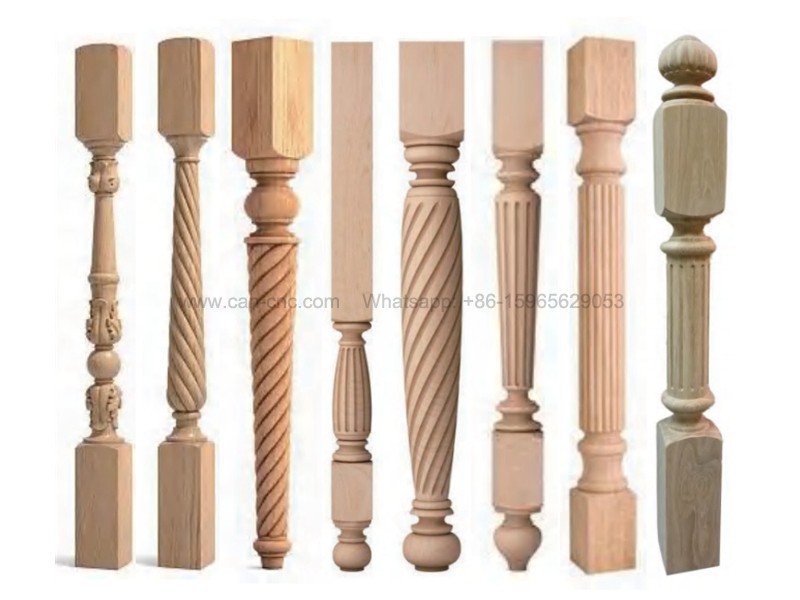

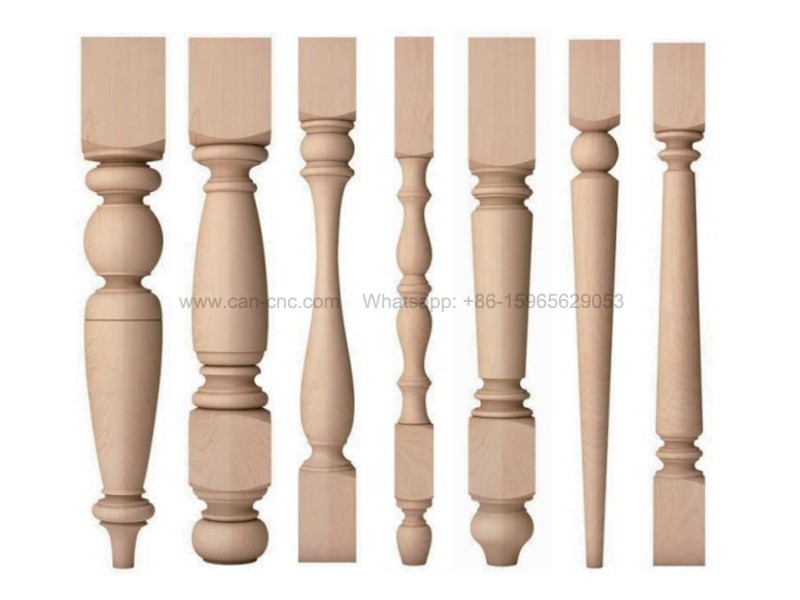

With a automatic barley twist lathe machine, making staircase spindles becomes a simple and straightforward

process. The woodturning lathe allows craftsmen to create uniform, smooth, and symmetrical staircase spindles

of various sizes and shapes in a relatively short time. Using a wood lathe machine, the craftsmen can create

tapered, turned, or straight staircase spindles, depending on the design preference.

automatic barley twist lathe machine 5

automatic barley twist lathe machine 4

Parameters:

Lathe Model	1030 Automatic Barley Twist Lathe Machine
Max Processing Size	300mm diameter x1000mm length; Customized
Driving system	Servo motor and drive
Quantity of Blades	Three
Max Feed Speed	35mm/s
Spindle Speed	0-3500rpm
Accuracy	0.001mm
Support Command	International G Code
Voltage	380V/220V
Machine Dimension	3100x1400x1500mm
Weight	1500kgs
