1. Introduction:

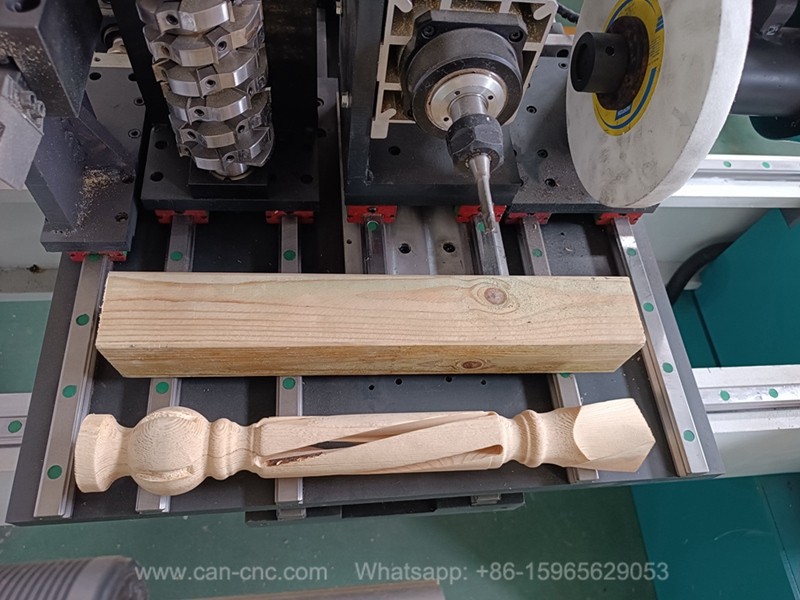

This kind 1530 amazing automatic wood turning lathe machine is equipped with one blade for turning function,
and 1 side 3.5kw spindle for engraving/twisting/hollowing on woodwork, and one planner for planning function,
also one polishing function, which is very friendly for processing the wood furniture.
Maximum working length is 1500mm, Max.turning diameter is 300mm.
You can directly use the AutoCAD software to draw your designs, it is easier for drawing design, then output the
dxf. file which our wood cnc lathe can read it directly, so that the machine can work on it.
2. Specifications:
|
Machine Model |
Mutiple Function Amazing Automatic Wood Turning Lathe Machine |
|
Max Processing Length |
1500mm |
|
Max Diameter |
300mm |
| Four Function | Blade Turning |
| Spindle carving/hollowing/twisting | |
| Planning | |
| Polishing | |
|
Controller System |
Intelligent Controller with buttons |
|
Drive |
Yako 2d811 big drive |
|
Square and Slider |
Imported Taiwan Hiwin Square and Hiwin Slider |
|
Main Motor Power |
5.5KW |
|
Spindle |
3.5KW Aircooling Spindle |
|
Machine Weight |
1700KG |
|
Frame |
Whole Iron Casting |
|
Frequency Inverter |
Fuling frequency inverter |
3. Machine Configurations:
1). Heavy Cast iron lathe bed, can avoid shaking when the spindle rotates fast or the big sizes workpiece process,
and the main spindle speed can be adjusted through the frequency converter.
2). Helical guide rail, with high precision and durable.
3). Intelligent controller system, which is easy operation, we can draw by AutoCAD and other softwares, then
transfer the files to machine by a USB.
4). With automatic feeding system for loading the wood pieces with the fast speed, so improving the working
speed of amazing automatic wood turning lathe machine.
4. Samples Applications:
Application Range: Turning shape, twisting, milling groove, hollowing, engraving, etc. The automatic turret
woodworking lathe uses the CNC system to control the turning tool to process the surface of the rotating
workpiece without changing the turning tool or frequent Debugging, automatic processing of wood materials
according to design drawings, automatic turret woodworking lathes are widely used in furniture manufacturing,
architectural decoration, handicraft production and other fields.
Suitable Material: All kinds of wood can be cut, processed and carved, such as oak, beech, birch, teak, pineapple,
red oak, sapele, rosewood, etc.
