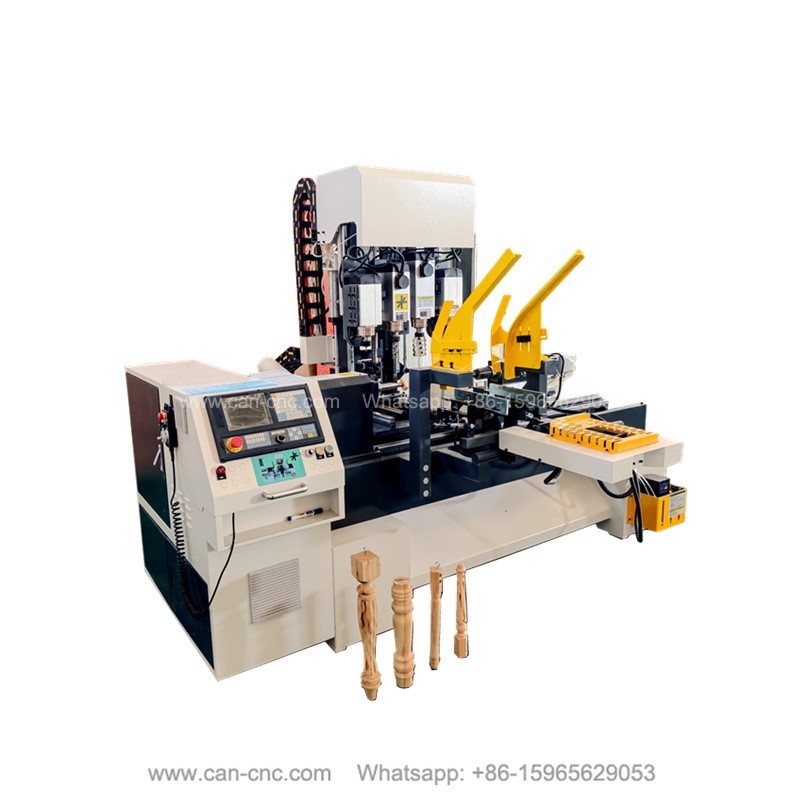

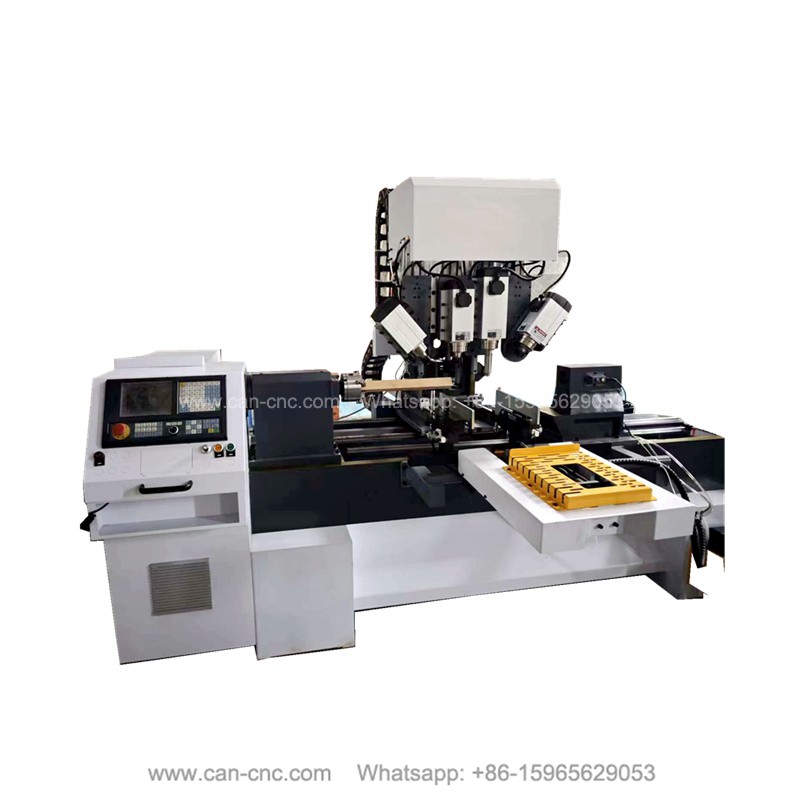

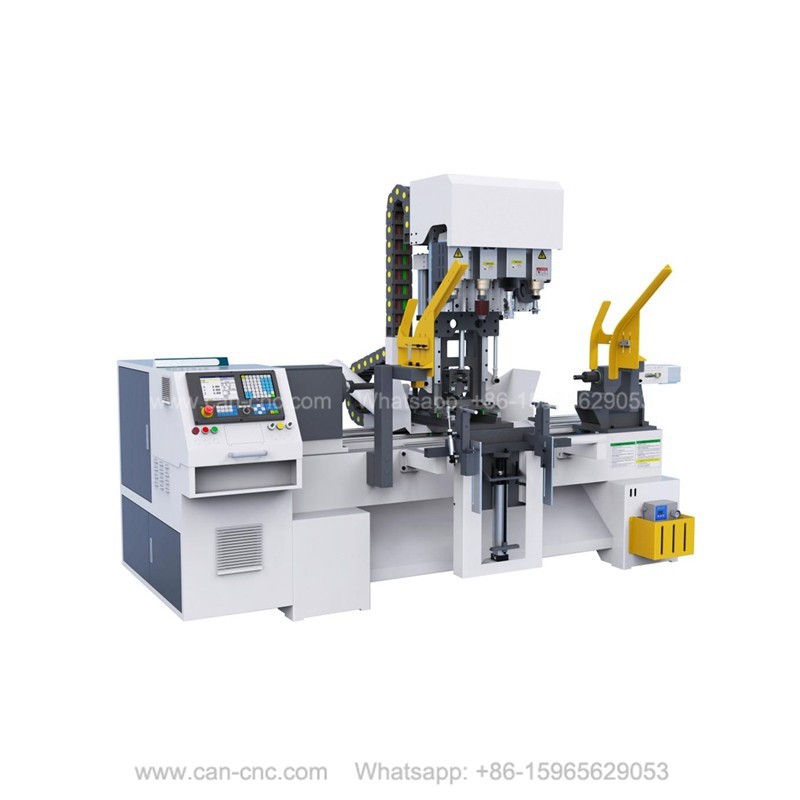

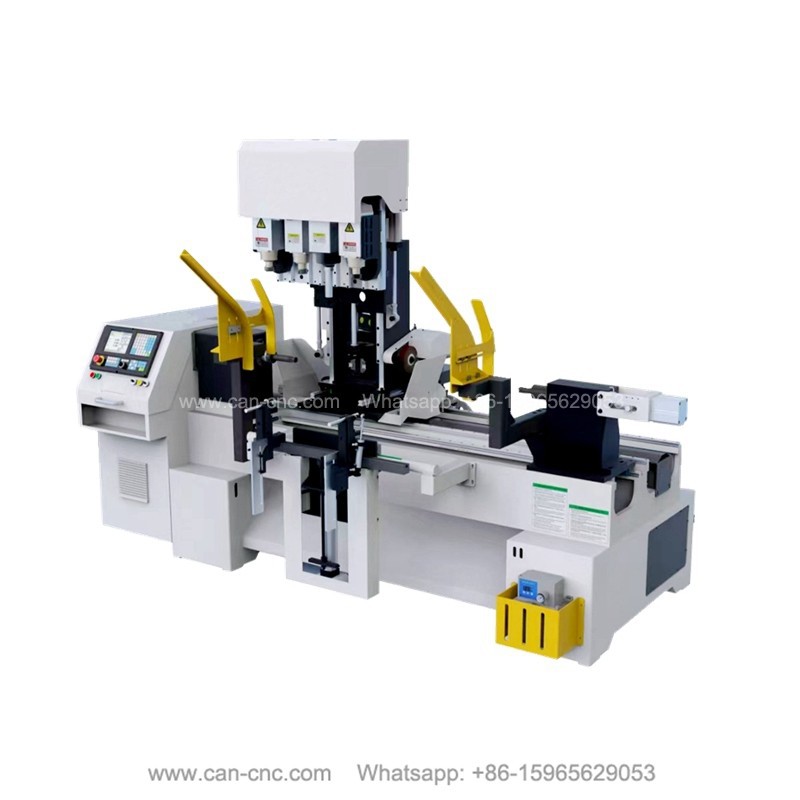

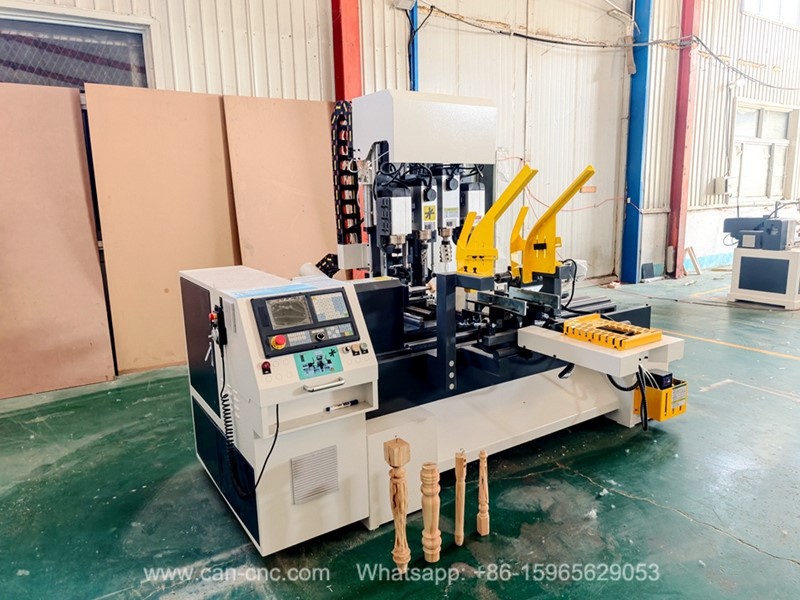

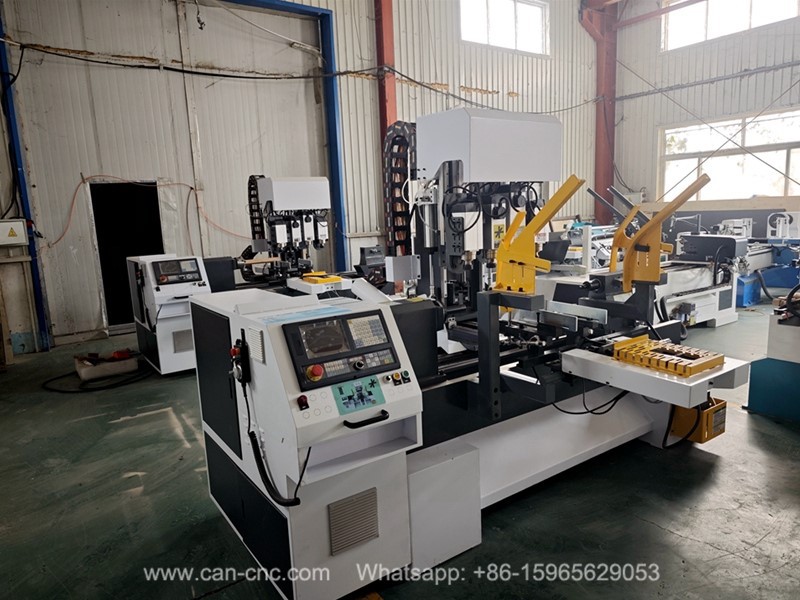

1. Brief Introduction:
Our this model wood turning and milling composite machine can perform seven functions:
turning the shape, drilling, grooving, milling, carving, sanding, and fully automatic loading and unloading.
And we provide the below service:
1). Over 2000 free machining drawings.
2). Free software.
3). Additional free cutting tools.
4). Free software programming training.
2. Specifications:
|
Machine Model |
Wood Turning And Milling Composite Machine |
| Processing Max Diameter |
200mm |
| Processing Max Length |
1200mm |
| Spindles | Two 4.5KW-18000rpm adjustable angle electric spindles |
| One 6KW-18000rpm electric spindle | |
| One 7.5kw-12000rpm electric spindle | |
| Power Supply |
AC380V, 3 phase |
| Feeding Mechanism | Automatic feeding (loading range: width * thickness ≤ 100 * 100 mm, length 80 ~ 1200 mm) |
| Machine Frame | Integral cast fuselage (annealed) + cast rigid structural components |
| Controller system | 4-axis milling and turning system |
| Lubrication system | Automatic high-pressure oil supply, volumetric equal-volume distribution system |
| Electrical box | Highly dustproof electrical components |
| Tail top | Manual/automatic dual-function balancing cylinder |
| Suitable Drawing software | Solid cam/UG, nc. file |
| Machine tool protection devices | Automatic shutdown and alarm in case of material shortage, low air pressure, or power phase loss |
| Net Weight/ Gross Weight | 2000kgs/2100kgs |
| Machine Size | 3020mm*2220mm*2050mm |
| Package, Total Dimension (L*W*H) | Plywood cases, 3800*2250*2200mm,18.8CBM |
| Delivery Port | Qingdao, Shenzhen, HongKong etc. |
| Lead Time | 30 working days |
|
Guarantee |
2 years |
3. Configuration Details:
1.) Machine Bed: High-rigidity, one-piece cast machine bed, a heavy-duty, integrally cast structure featuring
a dual-rail design, engineered to provide both high structural rigidity and ample clearance for automatic
workpiece unloading.
2.) Automatic Loading Rack: Capable of automatically feeding square, rectangular, polygonal, and round bar stock;
the automatic loading rack can be retracted to facilitate the manual loading of irregularly shaped workpieces.
3.) Lubrication System: Features a high-pressure electronic oil pump (automated operation, delivering a precise,
metered volume of high-pressure oil per cycle) combined with an oil distributor (ensuring the uniform allocation
of lubricant to every lubrication point).
4.) High-Power Servo Motor.
5.)There are 4 spindles installed on this wood cnc lathe milling machine, you can see 2 vertical spindles+
2 spindles with angle, and the angle can be adjusted according to your processing need.
#A). Two-position turning tool;
#B). Two-position adjustable-angle vertical milling spindle;
#C). Two-position vertical milling spindle;
#D). Fully automated processing with integrated multi-step operations.

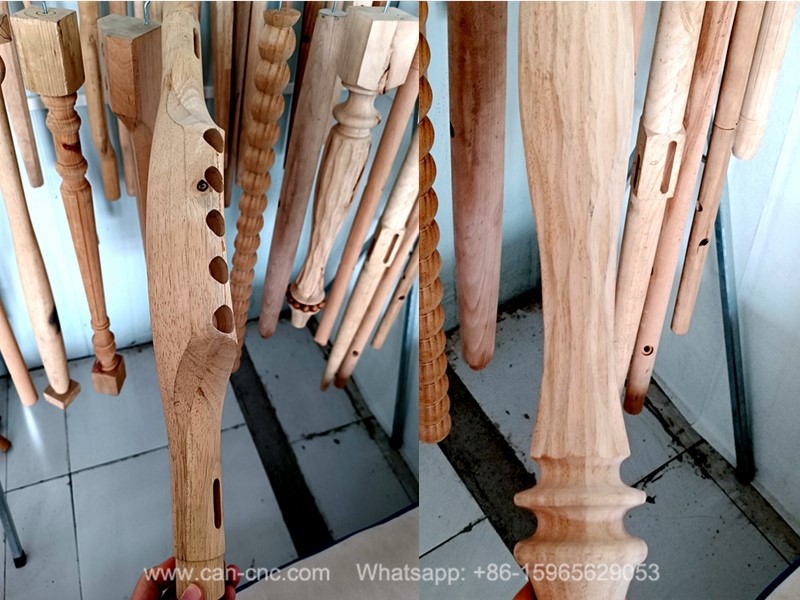

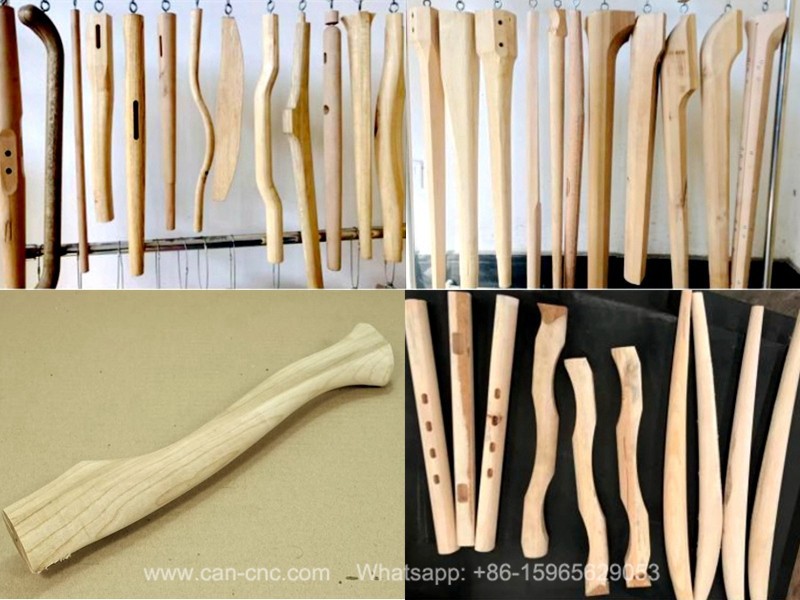

4. Applicable Industries:
Furniture Industry: Table legs, chair legs, sofa legs, bed legs, stair railings, billiard table legs, various furniture
accessories, etc.
Musical Instruments: Drums, sticks, flutes, piano legs, etc.
Sports Equipment: Billiard cues, baseball bats, wooden balls, axe handles, hammer handles, etc.
Crafts: Wooden bowls, vases, cups, pen holders, nesting dolls, candlesticks, etc.
Sculpture: Figure sculptures, animal sculptures, statues, Buddha statues, etc.
It can be used to process various complex and special-shaped products, such as solid wood staircase posts,
solid wood sofa legs, solid wood table and chair legs, billiard table legs, tiger legs, horse legs, bed legs,
specially shaped curved legs, sports equipment, musical instruments, solid wood handicrafts, carved products,
and various furniture accessories.

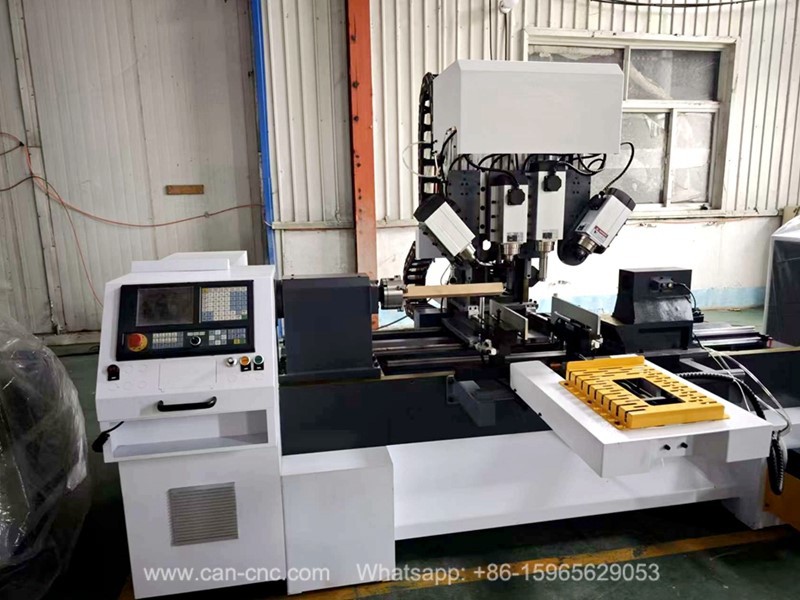

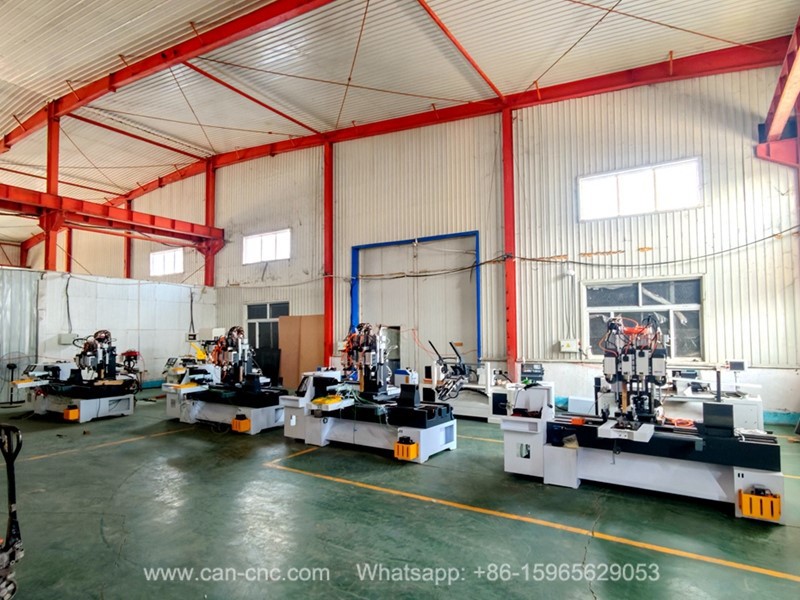

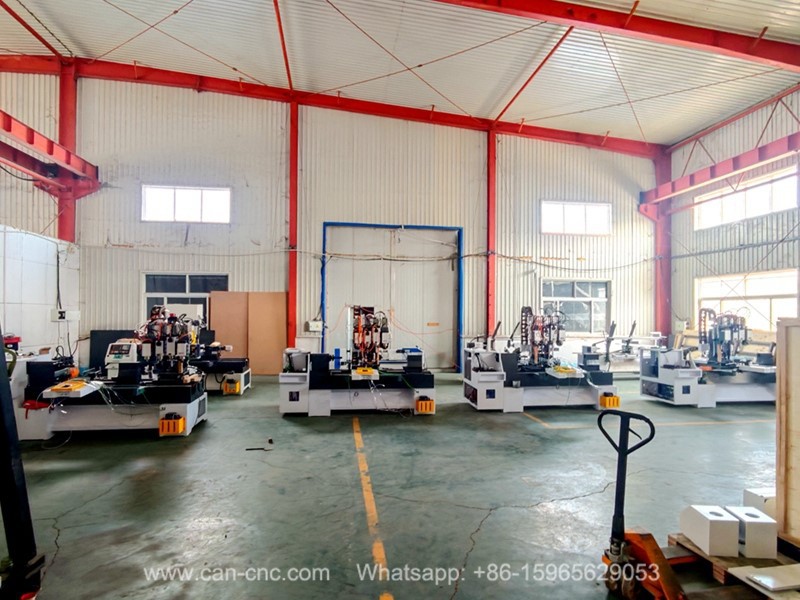

5. Factory Pictures:

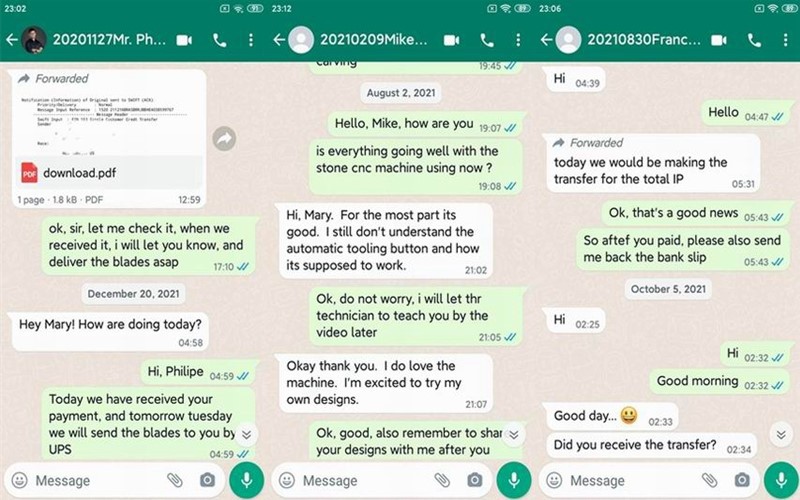

6. Reviews from Customers:
7. Our Certificate:
