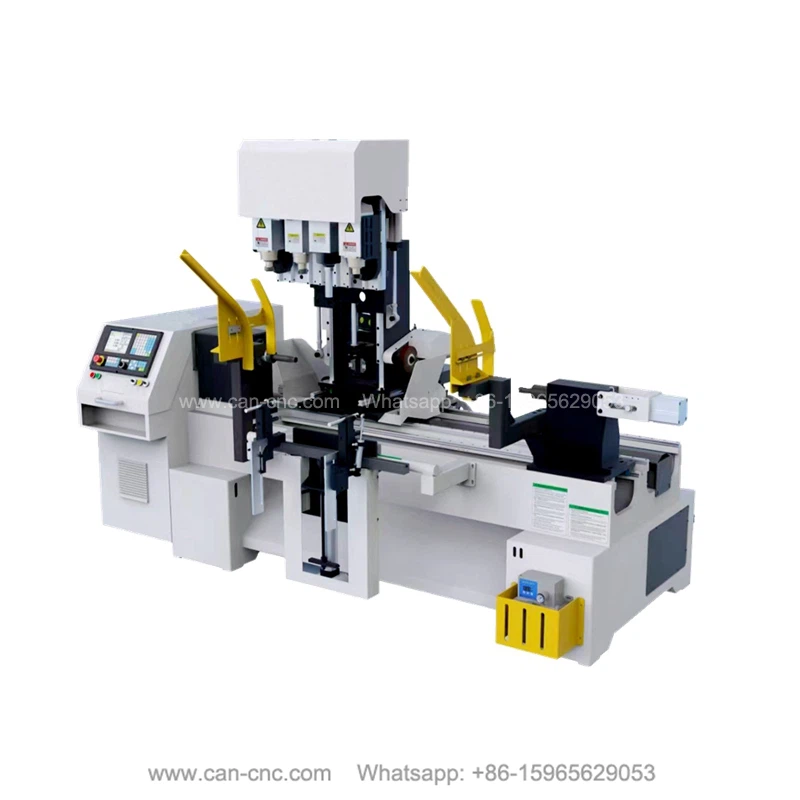

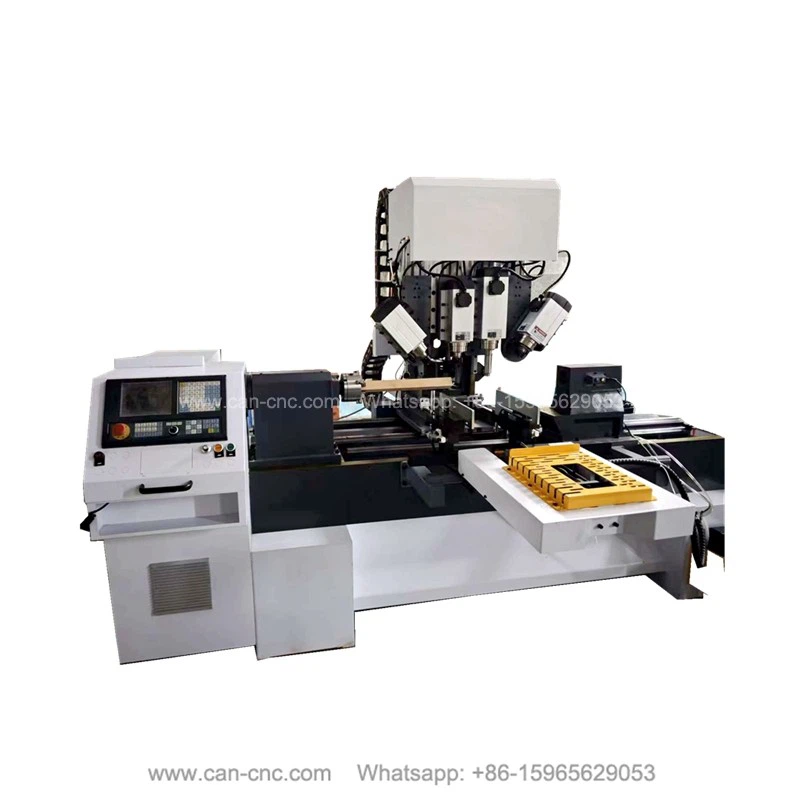

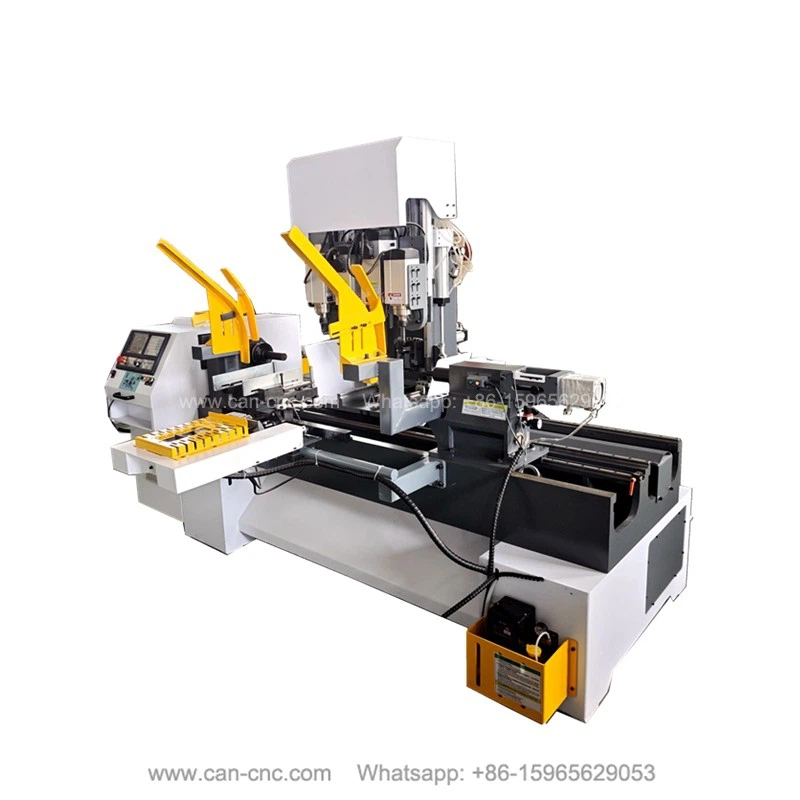

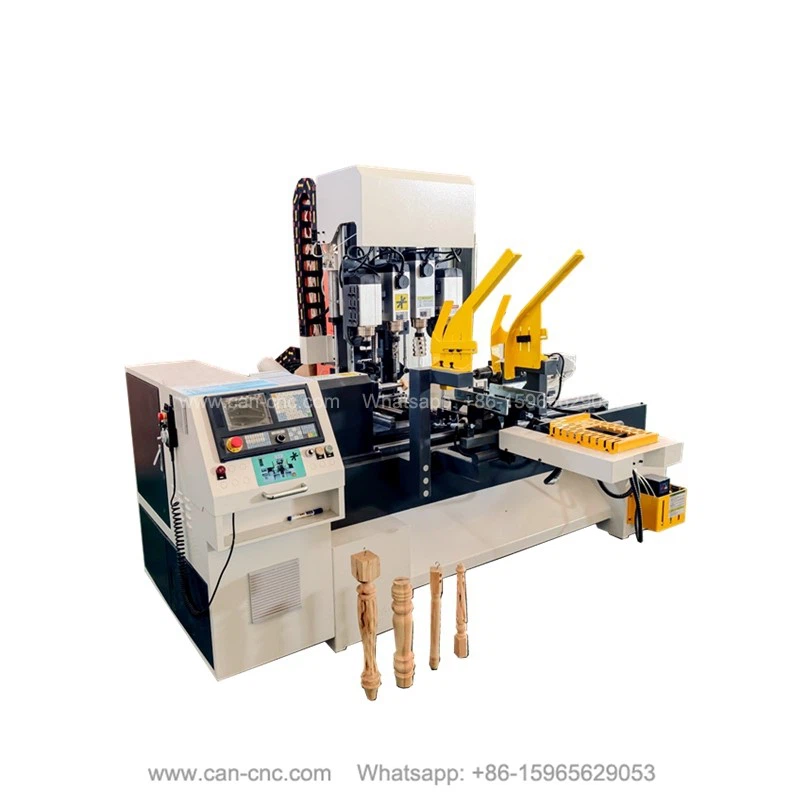

1. Product Introduction:
This model wood cnc lathe milling machine is specially on processing of various solid wood furniture,
dining tables and chairs, irregularly shaped wooden legs, custom furniture components, and solid wood
handicrafts.
It enables highly efficient and high-precision processing of workpieces that are difficult to handle manually,
performing multiple operations-including turning, milling, drilling, and sanding-in a fully automated
workflow with a single clamping setup.
The processing speed is very fast, and it can finish 1 simple wood piece with one minute.
It is also equipped with the auto feeding system, which largely improving the machine working efficiency.
2. Parameters:
|
Machine Model |
Wood Cnc Lathe Milling Machine |
|
Place of Origin |
China |
| Processing Max Diameter |
200mm |
| Processing Max Length |
1200mm |
| Spindles | Two 4.5KW-18000rpm adjustable angle electric spindles |
| One 6KW-18000rpm electric spindle | |
| One 7.5kw-12000rpm electric spindle | |
| Power Supply |
AC380V, 3 phase |
| Feeding Mechanism | Automatic feeding (loading range: width * thickness ≤ 100 * 100 mm, length 80 ~ 1200 mm) |
| Machine Frame | Integral cast fuselage (annealed) + cast rigid structural components |
| Controller system | 4-axis milling and turning system |
| X, Y, Z, A-axis feed modes | X/Y/Z axis driven by Newcore servo drive, A-axis driven by Alpha spindle servo drive. |
| Guide | Precision linear guide |
| Lead screw | Taiwan TBI ball screw |
| Frequency converters |
Fuling/Delta, batch random |
| Maximum X, Y, and Z axis traverse speed | 15 m/min |
| Maximum machining speed |
10 m/min |
| Machining accuracy | ±0.06mm/200mm |
| Repeatability | ±0.05 |
|
Whole machine weight |
2000kgs |
|
Guarantee |
2 years |
3. Key Features Details:

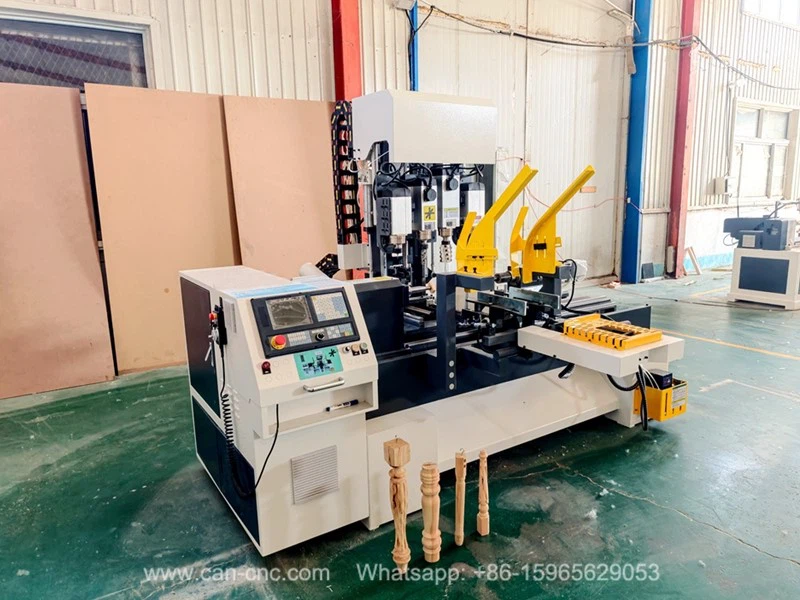

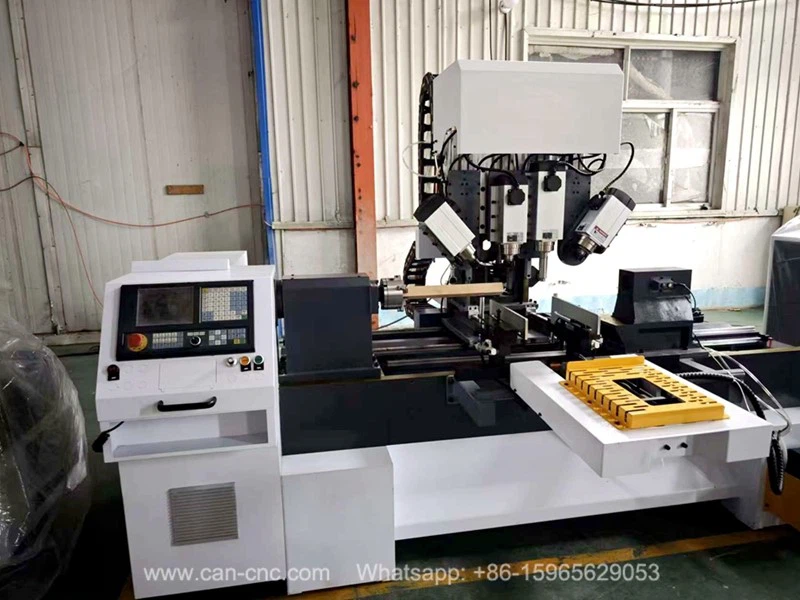

There are 4 spindles installed on this wood cnc lathe milling machine, you can see 2 vertical spindles+
2 spindles with angle, and the angle can be adjusted according to your processing need.
#1). Two-position turning tool;
#2). Two-position adjustable-angle vertical milling spindle;
#3). Two-position vertical milling spindle;
#4). Feeding mechanism;
#5). High-rigidity, one-piece cast machine bed;
#6). Fully automated processing with integrated multi-step operations.

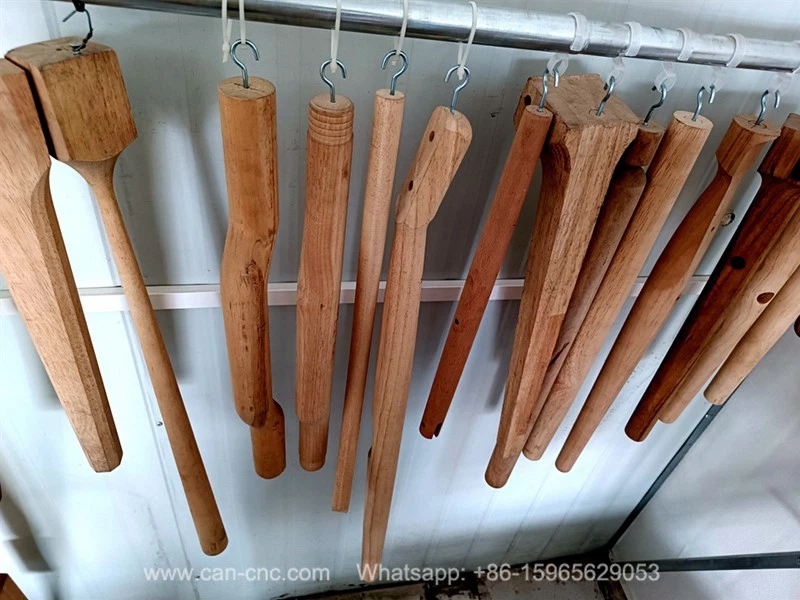

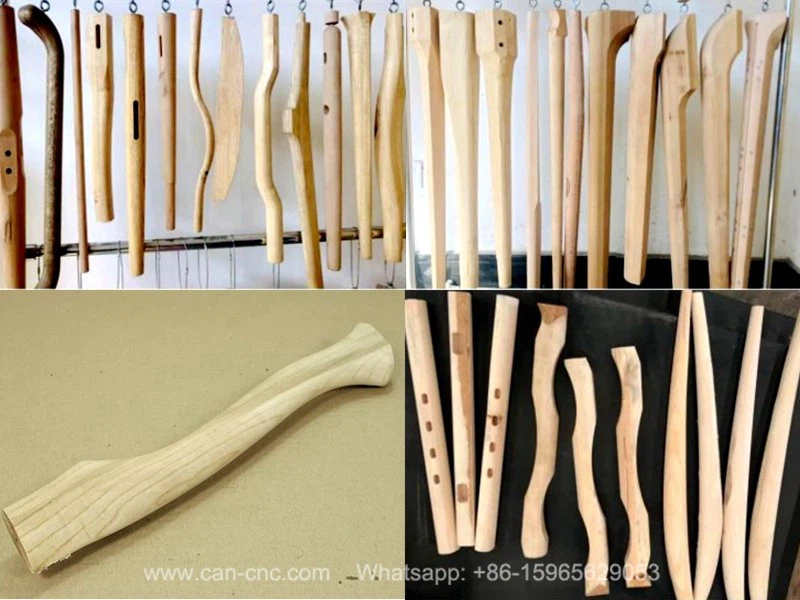

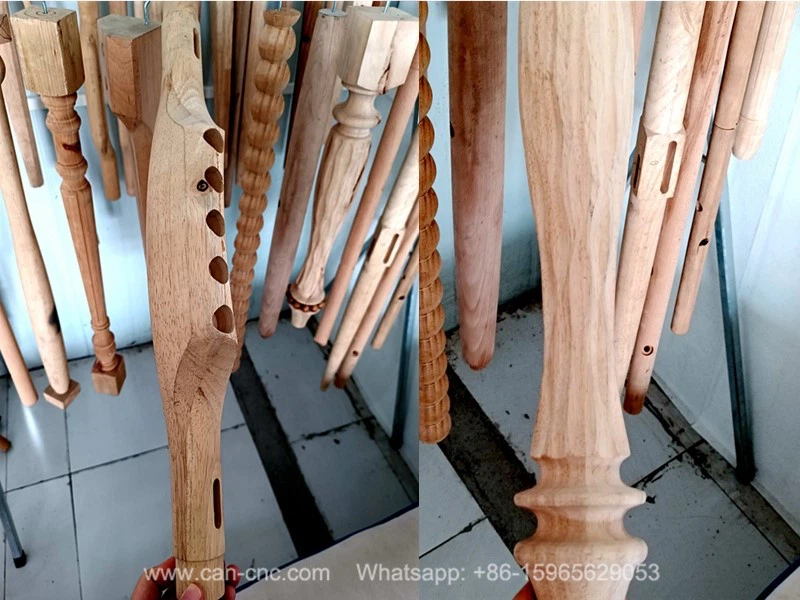

5. Applications:
This model wood cnc lathe milling machine is our new developed cnc machine with advanced technology.
It can process lots of complex wood table legs, wood arts and crafts, and wooden parts elements with
different strange shapes.
6. Our Certificate:

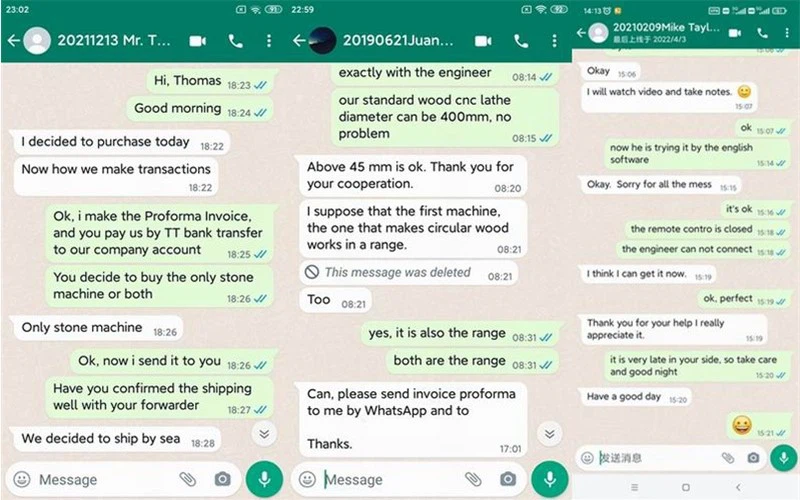

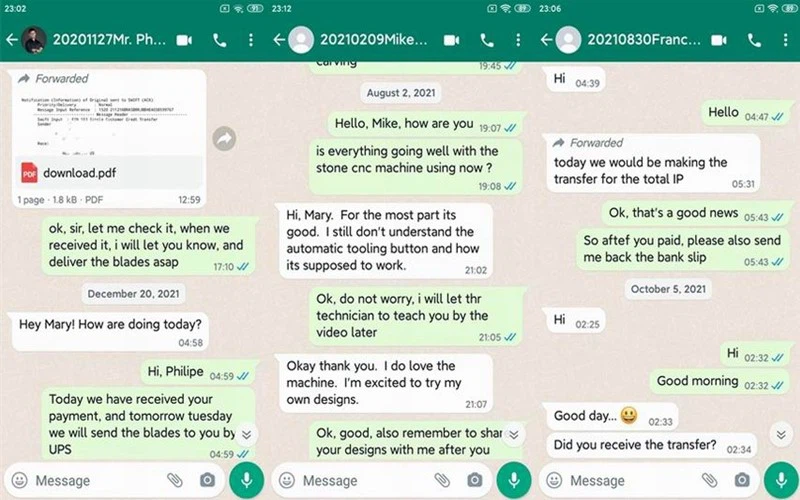

7. Reviews from Customers:
