5 Axis Cnc Wood Lathe

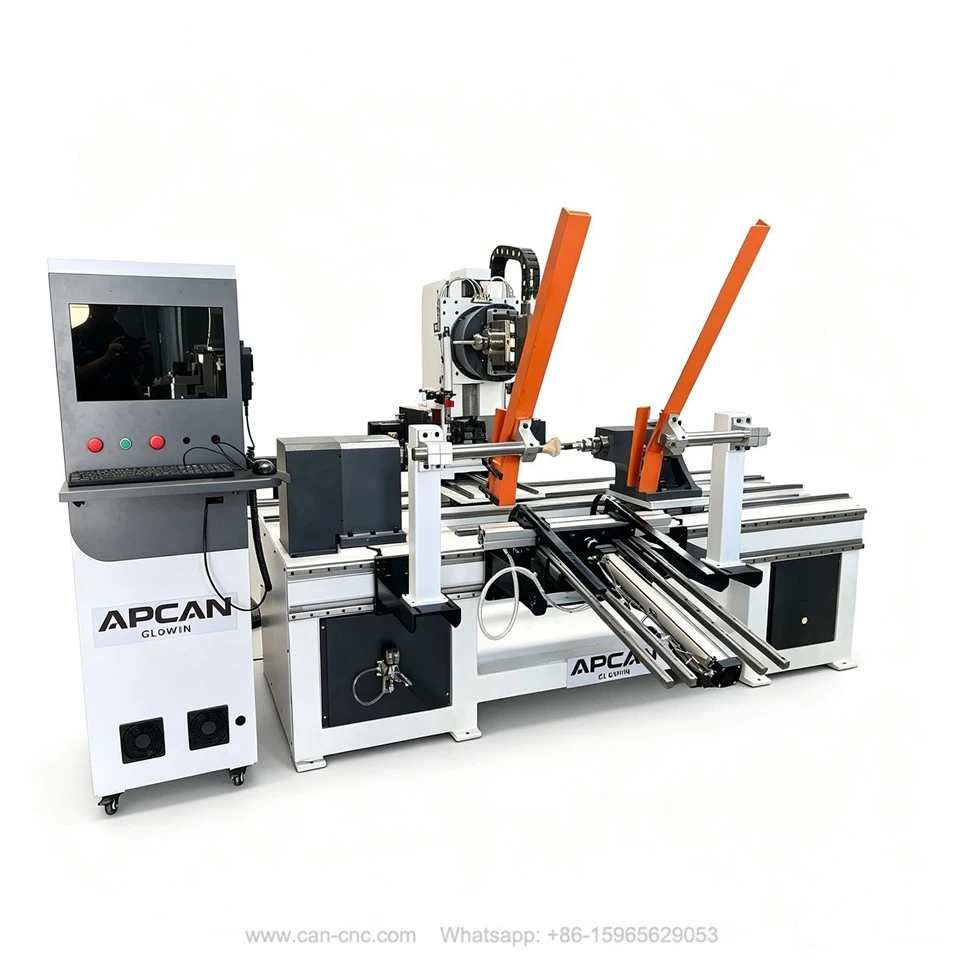

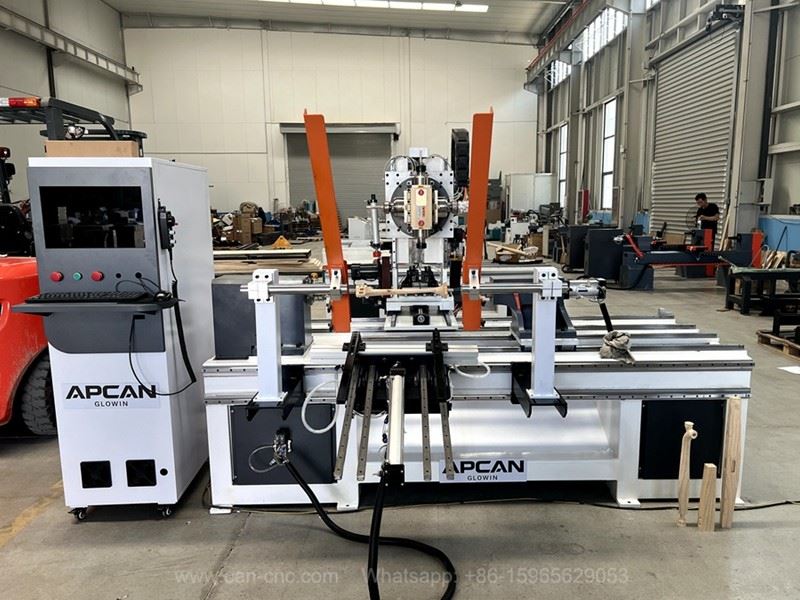

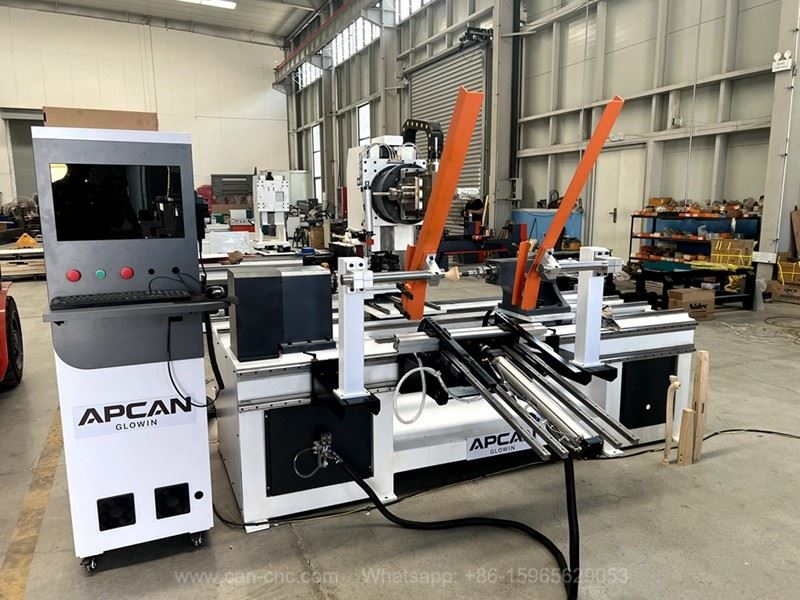

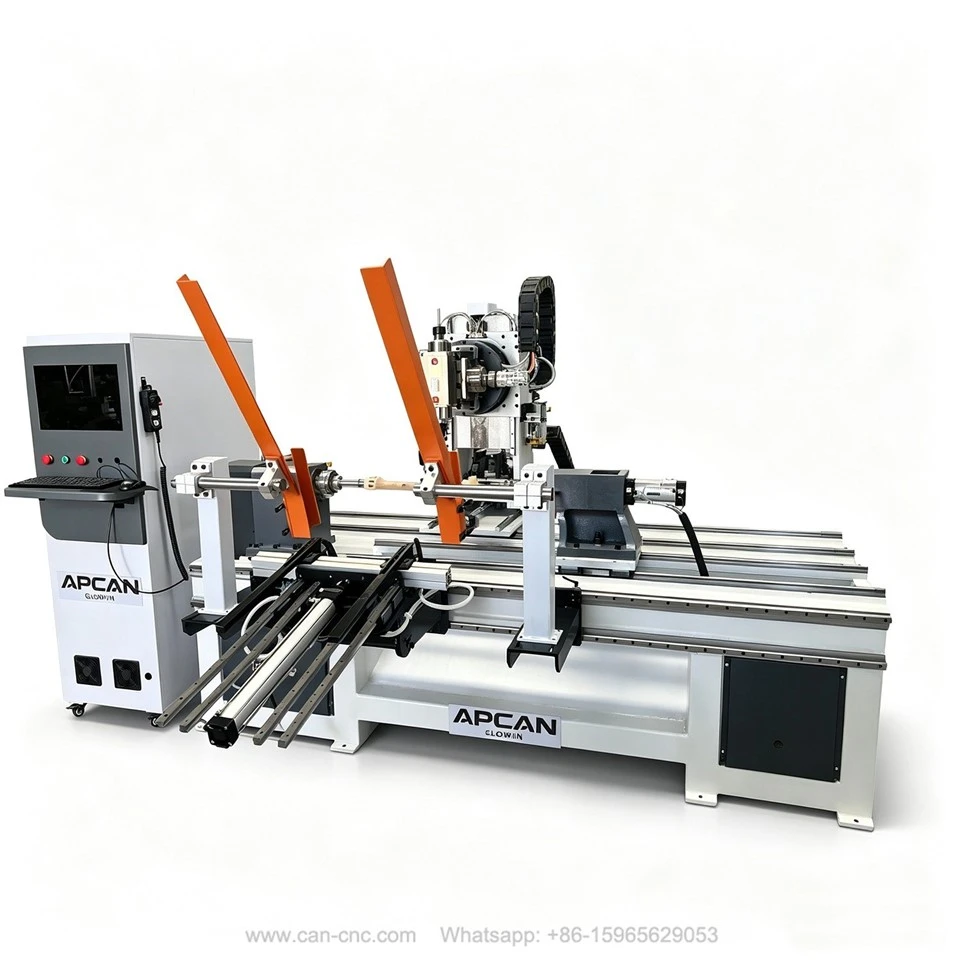

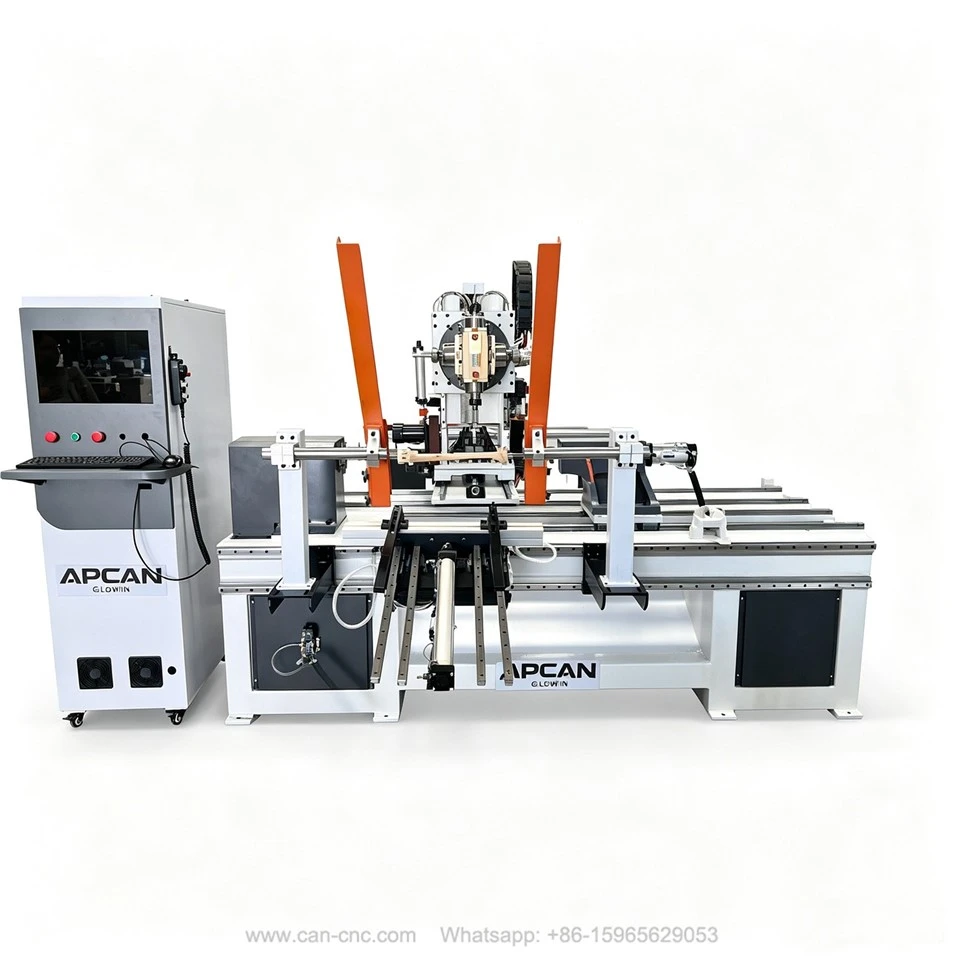

APEXTECH Five-Axis CNC Woodworking Lathe for Turning and Milling
Simple Description:
This APCAN-1220-7T-5-Axis Wood Turning & Milling Lathe is a high-end integrated woodworking machine that combines turning, milling, drilling, grooving, hollow carving and 3D profiling functions. Equipped with genuine 5-axis linkage and RTCP tool tip following technology, it breaks the limitation of traditional 3-axis and 4-axis wood lathes which can only process symmetrical rotary parts.
The machine adopts integral cast iron bed with stress relief treatment, featuring high rigidity, shock resistance and long-term stable precision. With ±90° B-axis swing angle and 360° infinite rotating A-axis, it realizes multi-angle dead-angle-free machining. All complex procedures can be finished in one-time clamping, effectively eliminating repeated positioning errors and improving finished product surface smoothness and consistency.
It is widely used for processing high-end solid wood furniture parts, such as Y-chair armrests, irregular curved chair legs, twisted table legs and asymmetric curved wood components. It also perfectly fits stair balusters, villa whole wood decoration components, musical instrument accessories and high-grade wooden crafts.
Compatible with mainstream 3D programming software with dedicated post-processing files, the machine supports customized processing of various complex 3D curved wood parts. It is the preferred equipment for high-end custom woodworking factories and foreign trade furniture manufacturers to improve product grade and profit margin.
Core Machining Capabilities (Multi-process Integration):
✅ Turning: Cylindrical, conical, and contoured turning; grooving and pattern turning (includes all standard CNC wood lathe functions);
✅ 5-Axis Milling: Side profiling, angled holes, complex contours, openwork/cutouts, mortise and tenon joints, and S-shaped complex handrails;
✅ Auxiliary Processes: Drilling, slotting, sawing, 3D carving, relief carving, and optional automatic sanding;
✅ Supports integrated machining of both rotary parts and asymmetrical complex-shaped parts (capabilities beyond standard 3-axis or 4-axis wood lathes).
Parameters:
| Model | APCAN-1220-7T-5-Axis Cnc Wood Lathe |
| Machining Travel | 1200*200mm |
| Machine Weight | Approx. 1500KG |
| Overall Dimensions (Net) | 3020mm × 2220mm × 2050mm |
| Total power | 22 kW (power consumption approx. 1.5 kw/hour) |
| Feeding Mechanism | Magazine-style automatic feeding (Capacity: Width × Thickness ≤ 100 × 100 mm; Length: 80–1200 mm) |
| Control system | LNC 5-axis turn-mill composite system |
| Machine Structure | Welded square-tube rear wall bed + cast rigid structural components |
| X, Y, Z, A-axis feed system | X/Y/Z: 1.5 kw servo drive; A-axis: 4 kw spindle servo; C-axis: 750W |
| Lathe tool post | Pneumatic cylinder-actuated 2-position turning tool post |
| Shimpo | (Japan) planetary gear reducer |
| Guideways Precision | Linear guideways (Pinake 25P series) |
| Ballscrews | Precision ball screws |
| VFD | Yiediantong |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Automatic tool sensor calibration |
| Compatible software | Powermill, UG, Alphacam, Artcam, Type3, AutoCAD, Fusion 360, etc. |
| Spindle |
One 4.0 kW servo lathe spindle (5,000 rpm); air-cooled cross-head spindle |
| Max. moving speed | (X, Y, Z axes) 60 m/min |
| Max. machining speed | 10 m/min |
| Machining accuracy | ±0.07 mm / 200 mm |
| Repeatability | ±0.06 mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.5–0.8 MPa |
| Electrical cabinet | High dust-protection electrical components |
| Tailstock | Balanced pneumatic tailstock (supports both manual jog and automatic modes) |
| Working voltage | 360–415 V |
| Guarantee | 1 year for free for the spindle, motor,drive, controller. |
Features Details of CNC 5 Axis Wood Lathe:

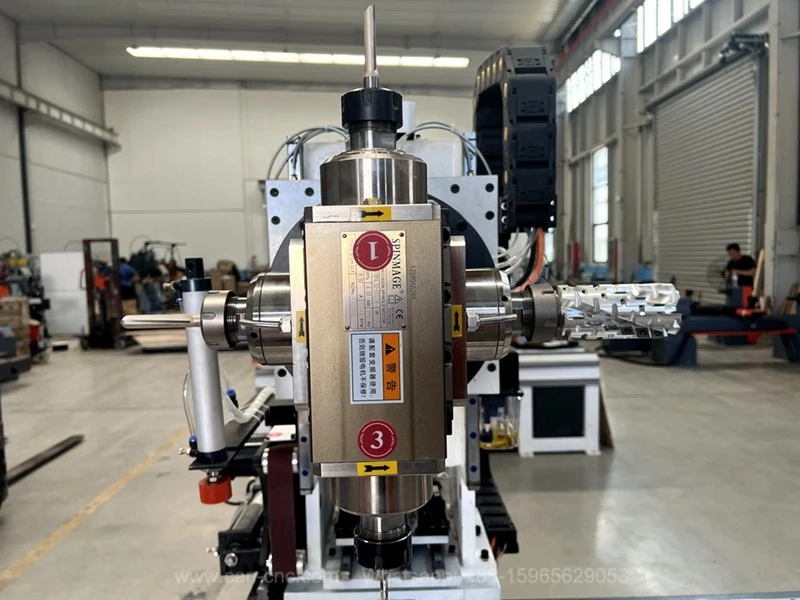

Custom-developed four-head electric spindle:
- It adopts an integrated one-piece structure and uses compressed air for efficient heat dissipation. Compared with conventional air-cooled spindles, it delivers greatly improved cooling performance and effectively suppresses temperature rise during high-speed continuous operation.
- The spindle supports a maximum speed of 18,000 rpm and is fitted with an ER40 tool holder, allowing four different tools to be installed simultaneously.
- During processing, the unit enables automatic tool rotation and program-driven tool switching. Combined with ±90° tilt adjustment capability, it effortlessly accomplishes complex machining procedures, including inclined and vertical drilling, grooving, and 3D carving on wood workpieces.
Turning Tools:
- The machine is configured with two mounting stations for turning tools, with pneumatic cylinder-driven tool switching control.
- These two stations support the installation of multiple functional cutters, including V-shaped turning tools, U-shaped turning tools, O-shaped turning tools and parting-off tools.
- Automatic tool swapping can be executed in accordance with workpiece machining demands during operation, fully satisfying diversified turning production requirements.
Sanding Device:
- The machine is equipped with a high-performance belt sanding unit driven by a 1100W brushless servo motor, delivering an adjustable rotating speed of up to 6,000 r/min to accommodate various polishing demands.
- Optional accessories include polishing grinding wheels and reciprocating sanding assemblies, with diverse sandpaper grits available for selection to suit different workpiece processing requirements.
Stable Structure:
- The machine tool body is con-structed from thick-walled steel pipes. Through finiteelement analysis and design, the stress is eliminated, providing a rigid and stable processing platform.
- The Z-axis is configured with four sets of Pinake 25mm linear guide rails and matching linear bearing sliders to guarantee stable performance under high-speed operation. Matched with servo drive assemblies, the axial moving speed can exceed 60,000 mm/min while maintaining low running noise.
Stable Structure:
The machine tool body is con-structed from thick-walled steel pipes. Through finiteelement analysis and design, the stress is eliminated,providing a rigid and stable processing platform. TheY-axis adopts double-rail bilateral drive or stepperbidirectional drive, enabling heaw cutting.
Pure 1500W Bus-type Absolute Servo Motor:
The entire machine is driven by 1500W bus-type absolute servo motors. Compared with conventional pulse-type servo motors, this system delivers superior operational stability and stronger anti-interference performance. It fully meets the high precision and multi-axis synchronous control requirements of 5-axis CNC wood turn-mill machining.
Automatic Feeding System:
This machine adopts a heavy-duty pneumatic four-bar linkage feeding structure. Multi-cylinder linkage realizes stable and automatic material feeding, with adjustable operating parameters to adapt to workpieces of different sizes. Featuring simple and convenient setup, the system ensures highly stable and reliable feeding operation throughout production.
Automatic tool alignment device:
The machine isequipped with an active fully automatic tool alignmentdevice, which can simultaneously align multiple toolsand automatically align multiple tools, saving workerstime in tool alignment.
High-Strength Drag Chains:
The machine is fitted with heavy-duty, impact-resistant cable drag chains. Boasting outstanding structural rigidity, these drag chains shield internal cables effectively. They prevent cable fracture resulting from long-term friction, tensile force and dust ingress during continuous machining movements.
Electric Timed Lubrication System:
The machine is equipped with a fully automatic electric timed lubrication unit. Operators are allowed to customize lubrication cycles in accordance with actual working frequencies. The system delivers regular, fixed-volume and accurate oil supply to the whole transmission structure automatically, eliminating failures and abrasion issues brought by untimely manual lubrication.
Core Advantages:
-
Genuine 5-axis linkage + RTCP function, supports arbitrary space curved surface machining;
-
One-time clamping and full-process forming, save labor and improve efficiency;
-
Integrated cast iron bed, stable operation and high machining accuracy;
-
Capable of asymmetric & twisted special-shaped wood parts that 4-axis machines cannot process wide compatibility, suitable for all kinds of hard and soft solid wood materials.
01
Genuine 5-Axis Linkage+ RTCP Function
02
One-time Clamping+ Full-process Forming
03
Stable Operation+High Machining Accuracy
04
Capable of Asymmetric +Twisted Special-shaped Wood
Application Fields of 5-Axis CNC Wood Turn-Mill Lathe:
5-axis CNC wood turn-mill composite lathe integrates turning, 5-axis milling, drilling, grooving and carving. The workpiece is clamped once between centers to complete rotary surface machining and multi-angle 3D profiling. It excels at asymmetric curved wood parts such as Y-chair armrests, irregular chair legs and twisted newel posts. Widely used in high-end solid wood furniture, stair baluster and wooden craft automatic production.
- Solid wood furniture: curved chair legs, Y-chair armrests, twisted columns, sofa armrests, classical carved furniture feet.
- Stair & whole wood home decoration: twisted stair balusters, newel posts, curved decorative components for villa customization.
- Wooden crafts & musical instrument parts: wood vases, art ornaments, high-grade wooden handles, instrument accessories.
- Wooden doors & architectural decorative mouldings: carved corbels, twisted decorative pillars, special-shaped gate head components.
- Outdoor & health-care solid wood furniture: curved support parts for leisure chairs.
our cases
Case 1
Overseas Woodwork OEM Factory (Jiangsu, China, exports to Middle East & Southeast Asia)
Products: European classical furniture feet, decorative capitals for villa whole wood decoration, carved gate components.
Original troubles: Most overseas drawings feature asymmetric 3D profiles which cannot be machined by ordinary domestic equipment. The factory had to outsource processing with squeezed profit margins.
Actual benefits: Matched complete post-processing files for UG & JDPaint support direct importing of overseas 3D drawings. Test-cut workpieces are provided for customer pre-shipment inspection. The machine replaces three original processing devices, cutting workshop floor space by 50% and maintaining steady long-term export orders.
Case 2
High-end Stair Manufacturer for Villa Projects (Guangdong, China)
Products: Twisted spiral stair balusters, carved starting newel posts, curved handrail connectors.
Original troubles: Spiral twisted profiles relied on manual trimming, leading to a pass rate below 70%. Mass standardized production was impossible, resulting in long delivery cycles for decoration projects.
Actual benefits: The 5-axis linkage system precisely reproduces 3D drawings and forms integrated spiral textures with a dimensional tolerance controlled within 0.02 mm. The product yield is improved to 98%, production cost of stair pillars reduced by 35%, supporting stable cooperation with numerous high-end villa and hotel decoration projects.
Case 3
Wood Crafts & Musical Accessory Factory (Zhejiang, China)
Products: Solid wood vases, twisted lamp posts, guitar structural fittings, high-grade tool wooden handles.
Original troubles: Hollow carving and inclined hole machining easily cause wood chipping and tool marks on traditional equipment; musical components demand ultra-smooth surface quality.
Actual benefits: Equipped with 18,000 rpm four-head electric spindle and RTCP function, the machine completes hollowing, inclined drilling and 3D carving without visible tool joint lines. It prevents wood burning and burrs during processing of walnut, ash and other hardwoods, making finished products reach imported craft standards and greatly boosting the added value of craft orders.
Case 4
Domestic Solid Wood Furniture Manufacturer (Shandong, China)
Products: Y-chair armrests, irregular tiger-shaped legs, twisted table columns, curved components for round-back chairs Original
troubles: The factory adopted separate 4-axis lathes and milling machines previously. Repeated clamping caused obvious assembly gaps. A set of table legs required three separate processes including turning, side milling and drilling, with daily output only 8 sets per worker. Heavy manual polishing restricted the acceptance of high-end overseas orders.
Applied machine: 1500mm working length 5-axis turn-mill lathe with optional automatic sanding module
Actual benefits: All machining procedures are finished within one clamping. The processing time for a single workpiece is reduced from 22 mins to 7 mins, and daily output rises to 28 sets. Consistent dimensional accuracy and superior surface finish meet export standards. The factory successfully cooperates with Nordic furniture purchasers with a 40% increase in product profit, meanwhile cutting labor costs for two polishing workers.
User Evaluation
Factory Manager from Brazil
This 5-axis machine handles all irregular wood parts perfectly. We no longer need multiple machines for separate procedures, which greatly lowers labor and reject rates, The programming operation is user-friendly.
-Factory Manager, Brazil Furniture Plant.
Owner of Mexico Stair Factory
Stable precision for twisted balusters helps us pass overseas customer inspection at the first time. Professional on-site training and technical support are highly satisfying.
- Owner of Mexico Stair Factory.
Manager of Greece Woodcraft Factory
We used to struggle with tool marks and poor surface finish on wooden musical parts. Since we adopted this 5-axis turn-mill machine, finished products fully meet delivery requirements, and the after-sales technical support responds promptly.
-Manager of Greece Woodcraft Factory.
FAQ
01.Is this a true 5-axis linkage machine or only 5-axis positioning?
02.What types of wood materials are compatible with this machine? Can it process hardwood?
It works well with oak, ash, beech, walnut, rubber wood, elm and most commonly used solid wood. The 18,000rpm high-speed electric spindle avoids wood burning and fuzzy edges during hardwood cutting. You only need to reduce the feed rate properly when processing high-density hardwood.
03.Is the programming operation difficult? Do you supply matched post-processing files?
04.Can I customize the machining length and workpiece diameter?
05.When should customers choose a 5-axis model rather than a 4-axis turn-mill lathe?
06.What parts come as standard, and what optional attachments are available?
Standard configuration: 4-head high-speed spindle, dual turning tool stations, automatic timed lubrication system, HIWIN linear guides, bus absolute servo motors, drag chain protection and dust removal interface. Optional parts: automatic sanding unit, pneumatic auto-feeder, tool magazine and centralized dust collector system.
why choose us?
True 5-axis linkage with Woodworking customized design
Reliable full life after-sales support
Multi-process integrated machining
1. Genuine Full 5-Axis Linkage with Standard RTCP Function
Our machine is equipped with original Syntec / Weihong dedicated 5-axis control system and standard RTCP tool tip follow-up function. The ±90° swinging B-axis and 360° rotating A-axis realize real-time synchronous linkage machining. Different from low-cost pseudo 5-axis machines that only support fixed-point positioning, our equipment perfectly handles twisted balusters, undercut features, inclined holes and complex spatial curved surfaces without obvious tool joint marks. Custom-matched post-processing files are provided free for direct programming operation.
2. Rigid Machine Structure & Brand-Grade Core Components for Stable Long-Term Precision
The machine frame adopts integrally cast iron with stress relief annealing treatment to weaken vibration during high-speed cutting and avoid permanent structural deformation. Standard configurations include Taiwan HIWIN linear guide rails, 1500W bus-type absolute servo motors, heavy-duty drag chains and automatic timed quantitative lubrication system. All key motion components adopt well-known industrial brands with excellent wear resistance, ensuring consistent machining accuracy during long-term mass production and low failure rate.
3. Integrated Multi-process Machining, Single Clamping for Whole Forming
This equipment integrates turning, multi-angle milling, drilling, grooving, hollow carving. Optional attachments cover automatic sanding and pneumatic automatic feeding. All machining procedures are completed after one-time clamping with double centers. It replaces multiple separate machines including ordinary wood lathes, milling machines and carving machines, saving factory space, labor cost and semi-finished product turnover, and raising overall production efficiency by over 60%.
4. Professionally Optimized for Solid Wood Processing Scenarios
We focus on the R&D and production of woodworking CNC equipment instead of refitting standard metal five-axis machines. The spindle cooling system, dust removal layout and power matching are optimized aiming at common wood processing problems such as high cutting temperature, wood dust and uneven cutting resistance. The 18,000rpm four-head electric spindle prevents wood burning and burrs when cutting hardwood and softwood, greatly reducing subsequent manual polishing workload.
5. Full-cycle After-sales Service to Eliminate Your Purchase Worries
Every machine undergoes full-load test running and sample cutting inspection before delivery with finished workpiece samples supplied together.
Professional engineers provide on-site installation, commissioning and one-to-one operation & programming training to help your staff put equipment into production quickly.
One-year warranty for the whole machine, with core parts (spindle, servo motors, control system) covered under warranty.
Lifelong supply of original spare parts at factory cost, plus fast remote technical support within working hours.
Non-standard customization of processing length, stroke and functional modules is supported according to your actual production workpieces.
