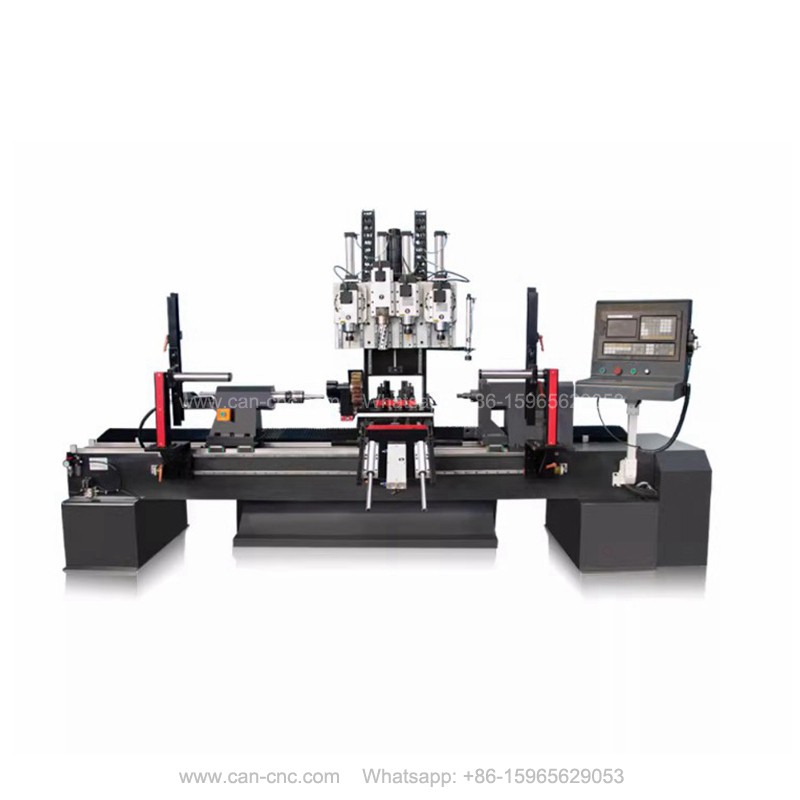

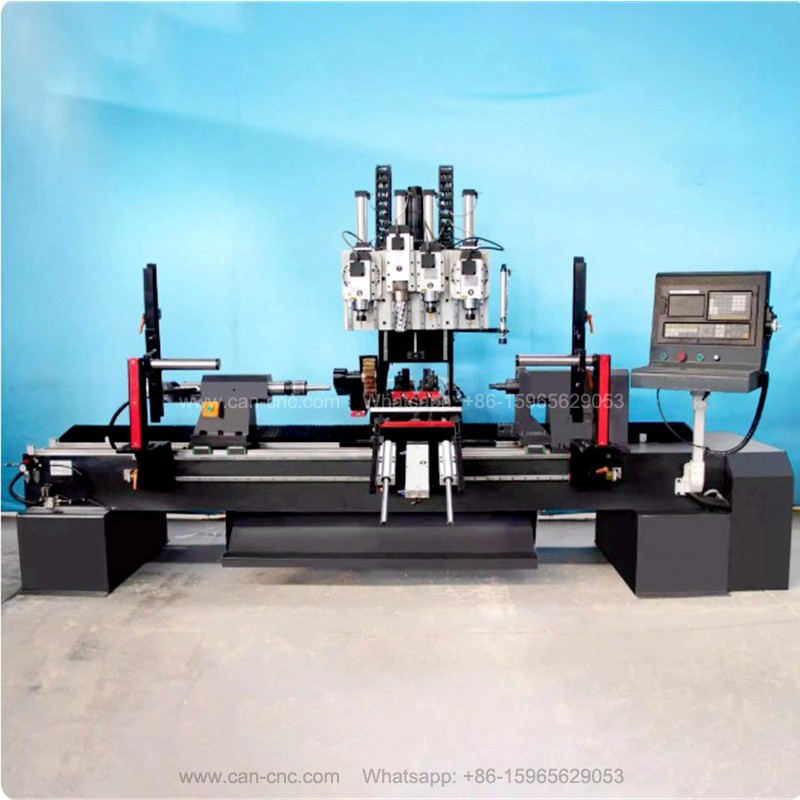

Wooden Parts Cnc Lathe Milling Machine

1. Advantages Of The Wooden Parts Cnc Lathe Milling Machine:

# 1.) The 1st advantage is this machine is able to automate woodworking procession, greatly reducing

manual labor and improving productivity.

# 2.) The wooden parts cnc lathe milling machine adopts 4 axis CNC system to make sure higher repeatability

and precision of the effect, decreasing wood waste and guaranteeing that every piece woodwork meets

exact size and quality.

# 3.) The turning and milling functions are combined in one cnc lathe machine, which can help the companies

save workspace and investment costs, and this is a bif economical solution for woodworking professionals.

2. Specifications&Parameters:

3.  Configurations Details:

#1). Adopts a fully automatic lubrication and oil maintenance system, regularly performing comprehensive

lubrication and maintenance on all transmission parts of the machine, eliminating the need for manual

oiling and avoiding situations where manual lubrication is insufficient.

#2). Features a self-developed lathe-specific CNC system with built-in macro programs, automatically

recognizing DXF/DBF files, automatically converting code, and supporting advanced functions such as

handwheel simulation. It is convenient and easy to use.

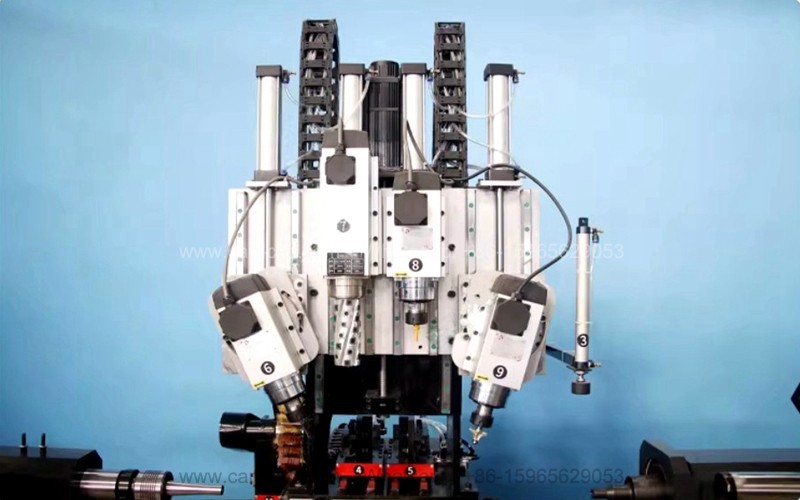

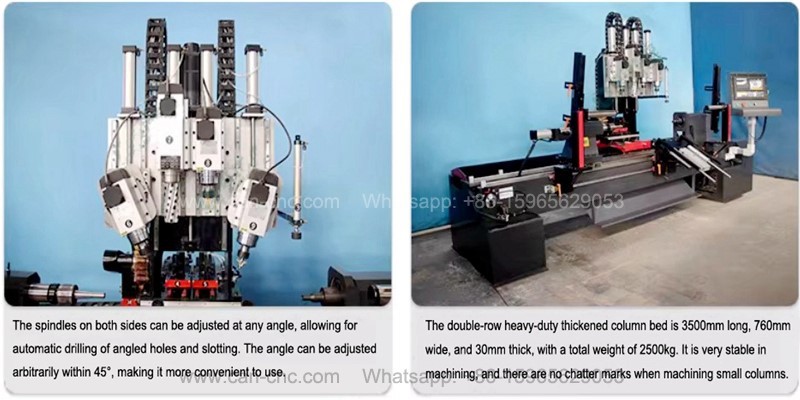

#3). The spindles on both sides can be adjusted at any angle, allowing for automatic drilling of angled holes

and slotting. The angle can be adjusted arbitrarily within 45°, making it more convenient to use.

#4). The double-row heavy-duty thickened column bed is 3500mm long, 760mm wide, and 30mm thick, with

a total weight of 2500kg. It is very stable in machining, and there are no chatter marks when machining small

columns. Its machining stability far exceeds that of ordinary lathes.

#5). The planer spindle uses a 7.5kW wind-powered spindle with a speed of 18000 rpm.

The standard planer blade is 150mm long * 60mm in diameter (custom sizes are also available).

Three 6kW high-speed air-cooled variable frequency spindles, each with a speed of 18000 rpm.

#6). The mounting positions of the two turning pins can be freely switched according to processing needs.

Different tools can be equipped, using one tool for roughing and the other for finishing.

Alternatively, tools with different angles can be installed for flexible combinations.

4. Applicable Industries:

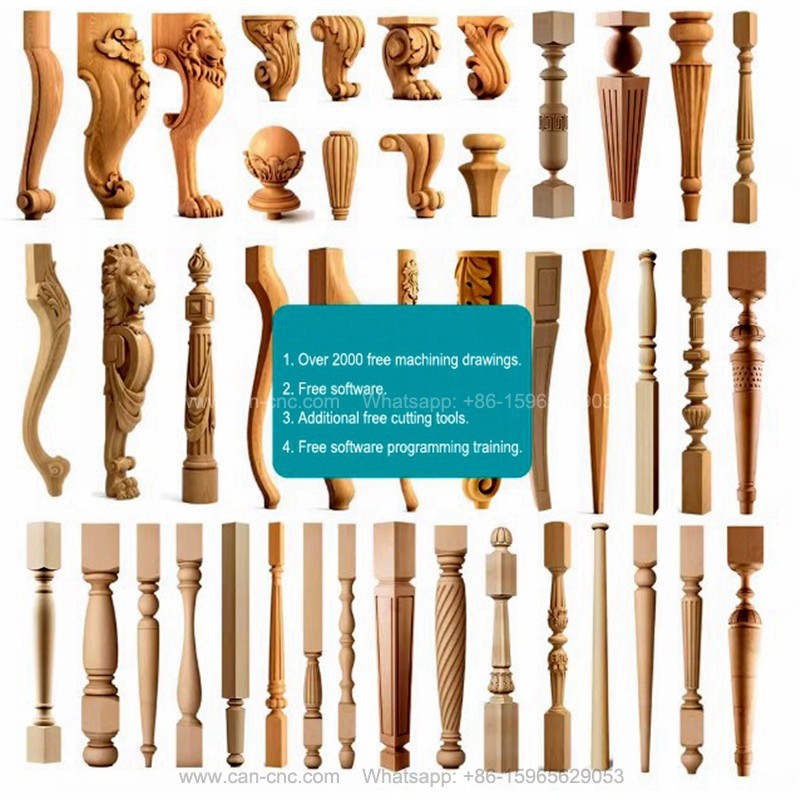

Furniture Industry: Table legs, chair legs, sofa legs, bed legs, stair railings, billiard table legs, various furniture

accessories, etc.

Musical Instruments: Drums, sticks, flutes, piano legs, etc.

Sports Equipment: Billiard cues, baseball bats, wooden balls, axe handles, hammer handles, etc.

Crafts: Wooden bowls, vases, cups, pen holders, nesting dolls, candlesticks, etc.

Sculpture: Figure sculptures, animal sculptures, statues, Buddha statues, etc.

It can be used to process various complex and special-shaped products, such as solid wood staircase posts,

solid wood sofa legs, solid wood table and chair legs, billiard table legs, tiger legs, horse legs, bed legs,

specially shaped curved legs, sports equipment, musical instruments, solid wood handicrafts, carved

products, and various furniture accessories.

5. Our Certificate:

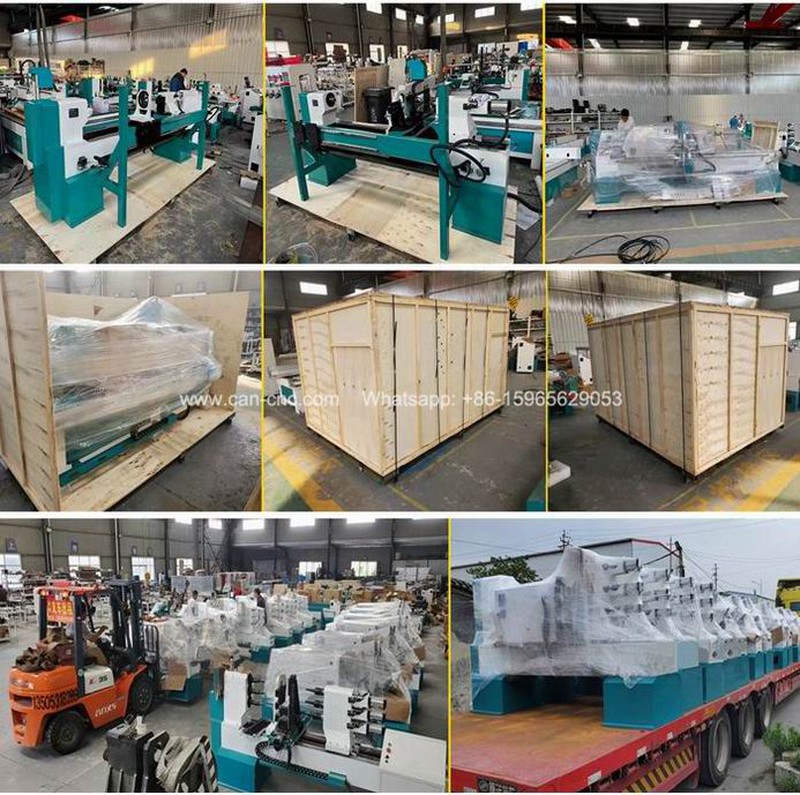

6. Package for Delivery:

1). Plywood has strong water resistance.

2). All covered with strong and hard protective film.

3). The corners are protected with foam and fixed with a protective film.

4). Internal steel frame protector.

5). Plywood packing and steel belt outer fixed box.

6). Complete packing with ordinary container or frame container.
