Jinan APEX CNC Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of wooden perfume bottle cap making lathe in China. With abundant experience, we warmly welcome you to buy advanced wooden perfume bottle cap making lathe for sale here from our factory. Good service and quality products are available.

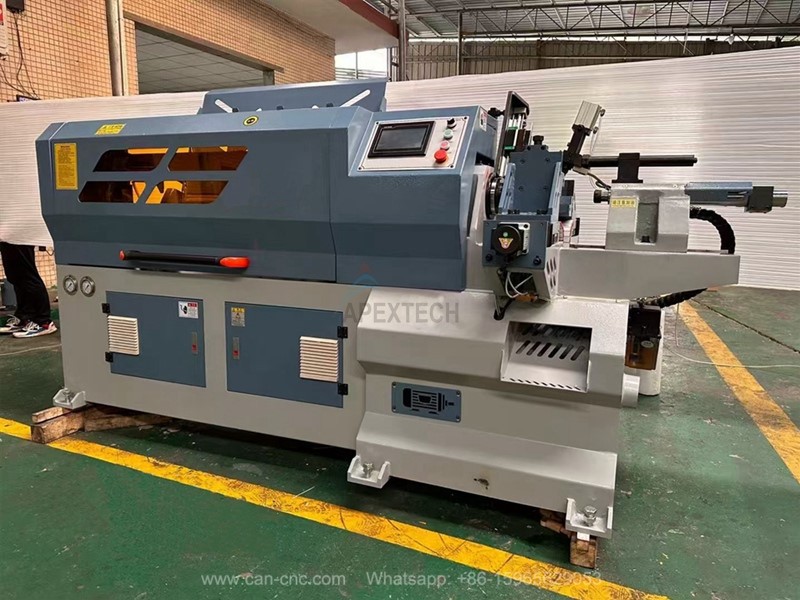

This kind wooden perfume bottle cap making lathe is very different from our other wood lathes.
It has the professional designing of the wood lathe appearance and technology. It is specially manufactured to
process all kinds of perfume cover, wooden cover, wooden handles, wooden ball, wooden beads, solid wood
accessories production, umbrella handle, chess, bamboo wood, bamboo tube, pepper grinder, toothpick holder,
and solid wood toy processing. It can process all kinds of small handicrafts, beads, etc., and it can turn the
shape of the wood, and drilling the inner hole of the wood, and also have the cutting function.
Parameters:
|
Machine Model |
Wooden Perfume Bottle Cap Making Lathe |
|
Place of Origin |
China |
|
Equipment Processing Size |
Max Diameter: 70mm x 700mm Length |
|
Spindle Motor Power |
4kw |
|
Controller System |
Panel Controller with English version |
|
Control electrical components |
Zhengtai Brand |
|
Spindle control inverter |
High-power spindle inverter with 5.5KW |
|
Movement execution block |
Tool holder: Precision Linear Guide Screws and Servo knife station |
|
Movement control system |
Servo model |
|
Motion control unit |
Hydraulic tailstock cutter |
|
Machine power |
7.5kw |
|
Working Voltage |
380V, 3 phases |
|
Machine Size |
2600x1300x1500mm |
|
Package Size |
3200x1550x1900mm |
|
Whole machine weight |
1200kgs |
|
Guarantee |
2 years for free, lifetime warranty |
Electrical part inside the control box. + Servo motor/drive system, Frequency inverter.
The auto feeding system at the back size of the cnc machine for wooden perfume bottle cap.
Controller system with English Language, can be easy learned and operated.
The blades for turning the wooden perfume bottle cap, 220v, 3 phase voltage, also can be 380v, 3 phase voltage.

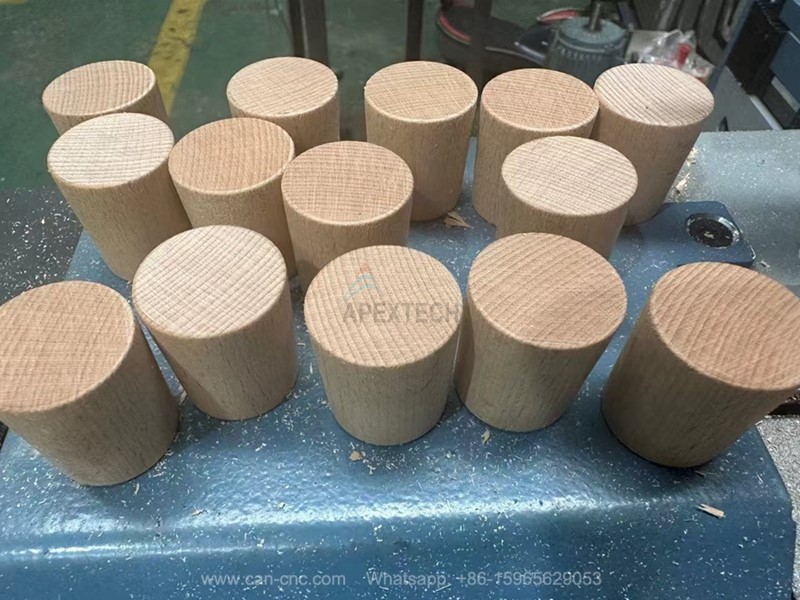

Samples Applications:
suitable all kind of wooden perfume bottle cap with different sizes and designs.
Package and Delivery:
Professional Packing and Shipping packing with plastic films and plywood box, or as your requirement.
Delivery Shipped in 20-25 working days after payment:
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB.
3) Some extra spare parts (Pipe, limit switches etc.)
Reviews from Customers:
Our Factory:
Our Certificate:
Technical Support:
We will be responsible for the maintenance of damaged part which is under normal situation during warranty
period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty
period should be borne by the buyer. Wearing parts are not included.
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video CD disk.
3. Engineer available to service machinery overseas.
