Jinan APEX CNC Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of turning a coffee mug in China. With abundant experience, we warmly welcome you to buy advanced turning a coffee mug for sale here from our factory. Good service and quality products are available.
Are you looking for one kind of CNC machine for turning a coffee mug?

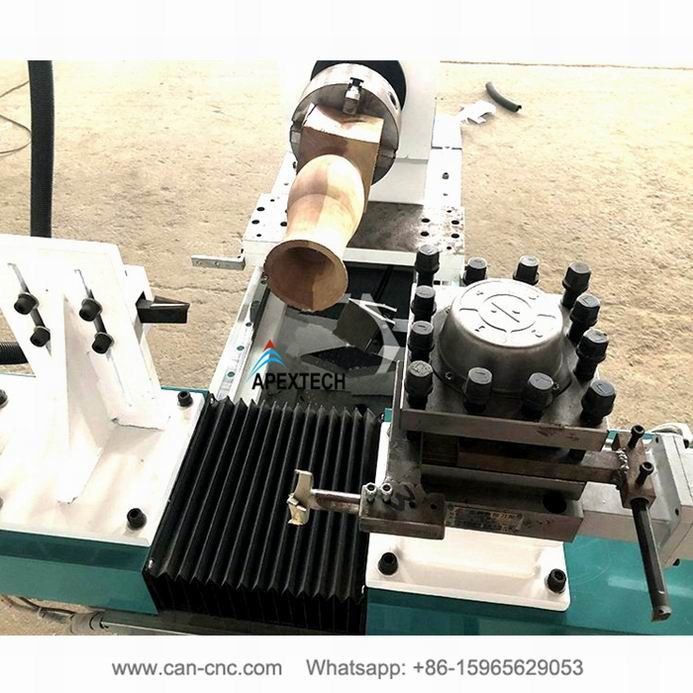

Our CNC wood lathe machine can turn a coffee mug and other kinds cups. This wood lathe is with double blades, which can improve the working efficiency; and also installed ATC function(3 different drilling tools),which can change the tools automatically. And the price is cheap, now turning a coffee mug wood lathe is your best choice.
Product Specification:
Machine Model | 2530-4 Axis Turning A Coffee Mug Wood Lathe |
Place of Origin | China |
Processing Size | 2500mm Length x 300mm Diameter |
Max Diameter | Single Axis Work: Diameter can be 300mm |
Controller System | LR Panel Controller |
Drive | Yako 2d811 big drive |
Square and Slider | Imported Taiwan Hiwin Square and Hiwin Slider |
Main Motor Power | 5.5KW |
Spindle | 3.5KW Aircooling Spindle, 1-18000RPM |
Machine Weight | 1700KG |
Frame | Whole Iron Casting |
Frequency Inverter | Best frequency inverter/ Fuling frequency inverter |
Ballscrew | Imported TBI25 Ballscrew |
Machine Size | 3100x1300x1700mm |
Package Size | 3300x1550x1900mm |
Automatic turret: it can install 3 different tools on the automatic turret when the wood lathe working, unnecessary to stop work, largely promote the processing efficiency.
Single-axis double-knife: double-knife feed, one knife is thick, and the other is forming.
The top four-axis engraving spindle: the top independent engraving spindle, independent control, can be round engraving, flat engraving, slot milling, and face milling.
LR dedicated control system: easy to operate, easy to learn, automatic image recognition, 12-inch color large screen, U disk transmission, no need to connect to a computer.
Two-tool simultaneous feeding: alloy turning tool, high cutting efficiency, high smoothness, saving polishing time; the whole tool head can be grindable, and the recycling use saves the cost.
Stainless steel chuck and thimble: made of stainless steel for ten years without deformation, super grip, preventing wood from flying out; thimble built-in German imported bearings, low rotation resistance; diameter can be freely selected.
Our factory show.
Package, Deliver, Shipping:
1. Whole film packaging machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box with iron binding belt;
4.According to customer's requirements for loading the whole container or LCL at domestic port.
FAQ:
Q1. Do you have after-sales service?
We offer 24/7 service and support via email, calling, skype or whatsapp.
Q2. Do you have guarantee and warranty?
One and half year, and during this period, if you have any problems, we will solve it for free.
Q3. What’s the delivery time?
After PO confirmed on both sides, within 7-20 working days for delivery with wooden box.
We're factory, and can do exporting ourselves and trading others if you want LCL.

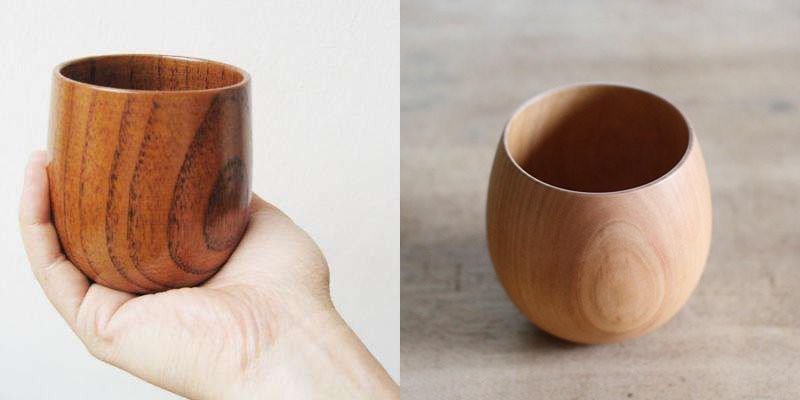

Samples:
Suitable Material: All kinds of wood can be cut, processed and carved, such as oak, beech, birch, teak, pineapple, red oak, sapele, rosewood, etc.
Application Range: Turning shape, twisting, milling groove, hollowing, engraving, etc. The automatic turret woodworking lathe uses the CNC system to control the turning tool to process the surface of the rotating workpiece without changing the turning tool or frequent Debugging, automatic processing of wood materials according to design drawings, automatic turret woodworking lathes are widely used in furniture manufacturing, architectural decoration, handicraft production and other fields.
