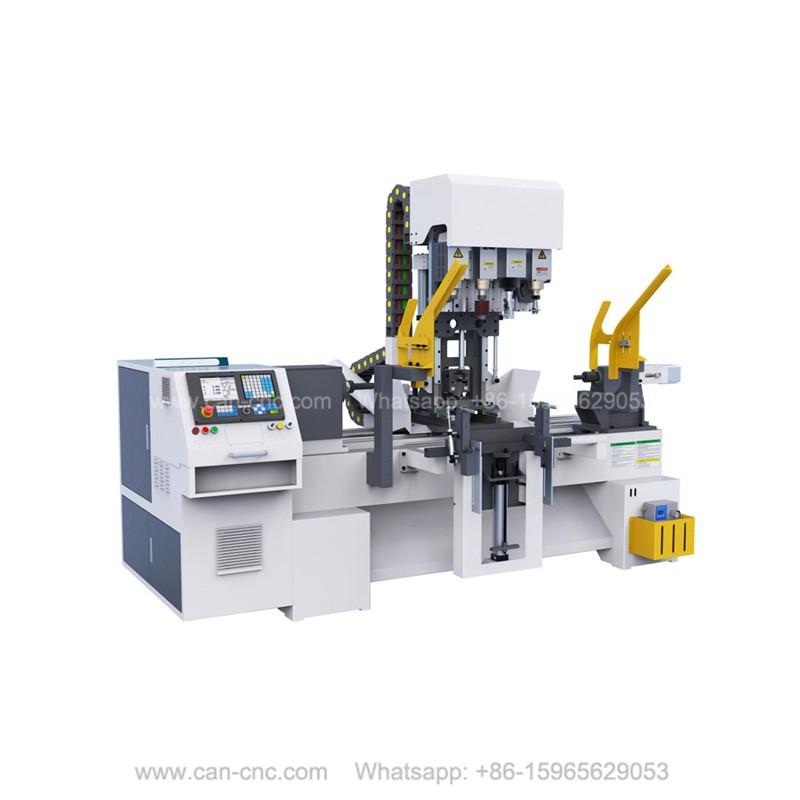

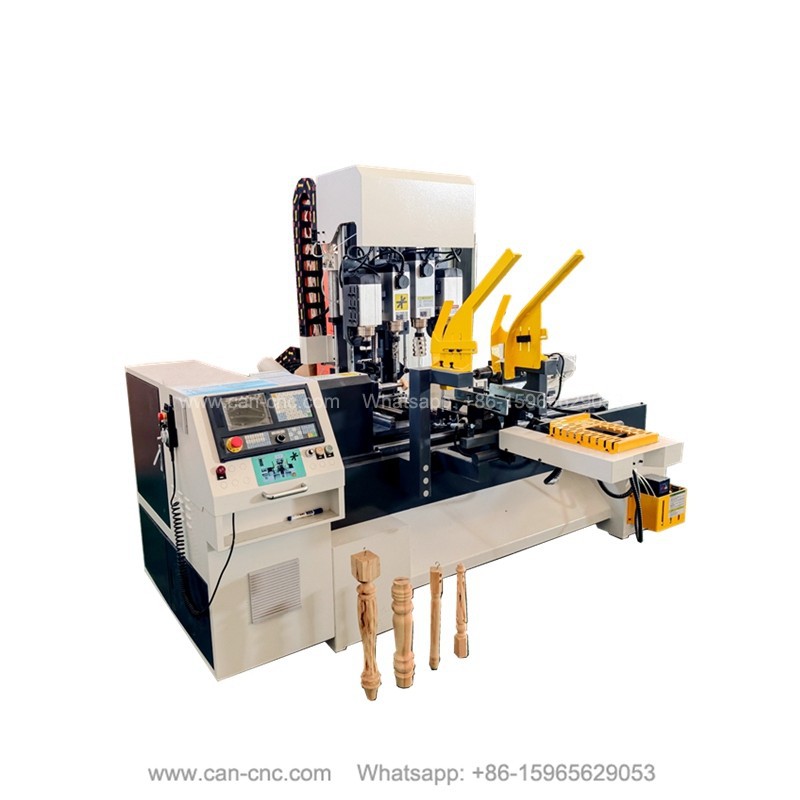

Simple Introduction:
This wood turning center for milling broaching is a heavy duty woodworking equipment that can be used for
3D turning and broaching, 3D engraving/cutting patterns, additional spindles, shaving, polishing, sanding.
This machine has the characteristics of easy operation: the operator can control its operation through Intelligent
panel 4 axis CNC controller system, and check its working status through the PLC controller, which effectively
saves manpower. In addition, the operator can also draw through software such as AUTOCAD, transfer the file
to the machine through USB, and the machine can automatically recognize the image.
Specifications:
|
Machine Model |
1530-4Axis Wood Turning Center For Milling Broaching |
| Processing Max Diameter |
300mm |
| Processing Max Length |
1500mm |
| Spindles | Two 4.5KW-18000rpm adjustable angle electric spindles |
| One 6KW-18000rpm electric spindle | |
| One 7.5kw-12000rpm electric spindle | |
| Power Supply |
AC380V, 3 phase |
| Feeding Mechanism | Automatic feeding (loading range: width * thickness ≤ 100 * 100 mm, length 80 ~ 1200 mm) |
| Machine Frame | Integral cast fuselage (annealed) + cast rigid structural components |
| Controller system | 4-axis milling and turning system |
| Lubrication system | Automatic high-pressure oil supply, volumetric equal-volume distribution system |
| Electrical box | Highly dustproof electrical components |
| Tail top | Manual/automatic dual-function balancing cylinder |
| Suitable Drawing software | Solid cam/UG, nc. file |
| Machine tool protection devices | Automatic shutdown and alarm in case of material shortage, low air pressure, or power phase loss |
| Net Weight/ Gross Weight | 2000kgs/2100kgs |
| Machine Size | 3020mm*2220mm*2050mm |
| Package, Total Dimension (L*W*H) | Plywood cases, 3800*2250*2200mm,18.8CBM |
| Delivery Port | Qingdao, Shenzhen, HongKong etc. |
| Lead Time | 30 working days |
|
Guarantee |
2 years |

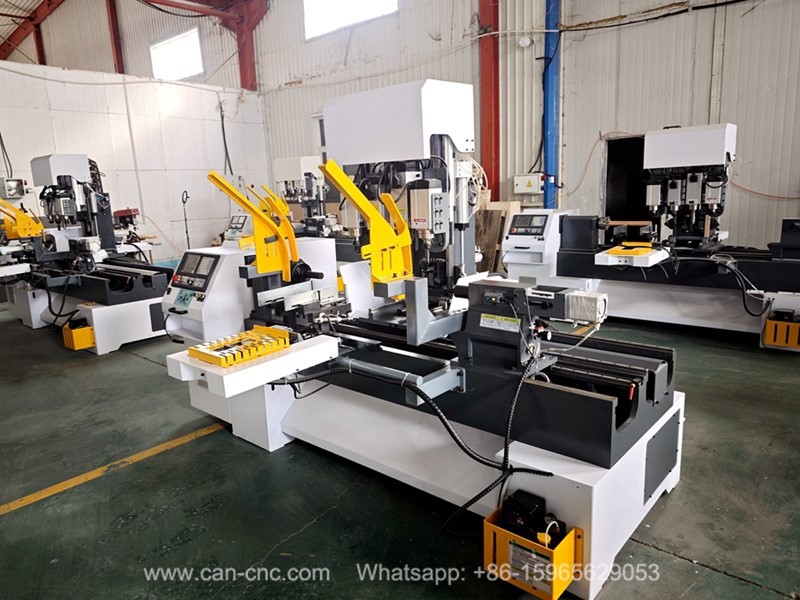

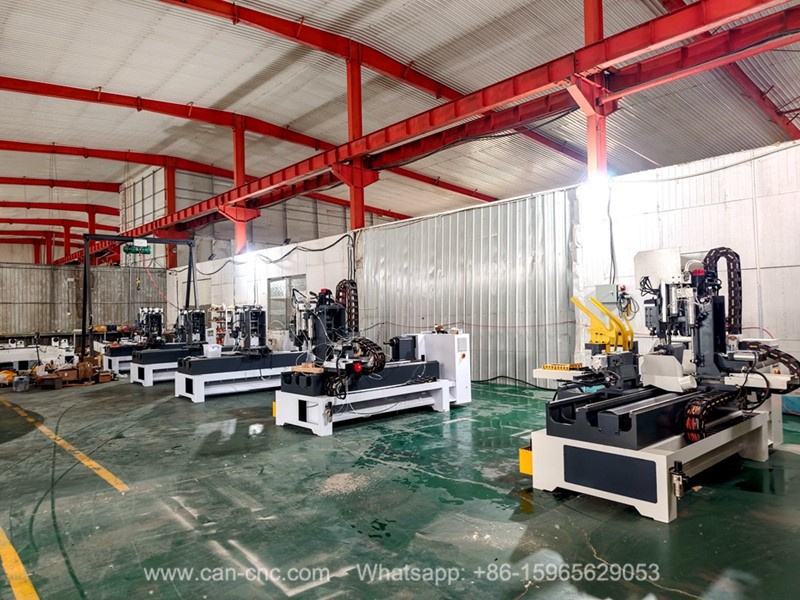

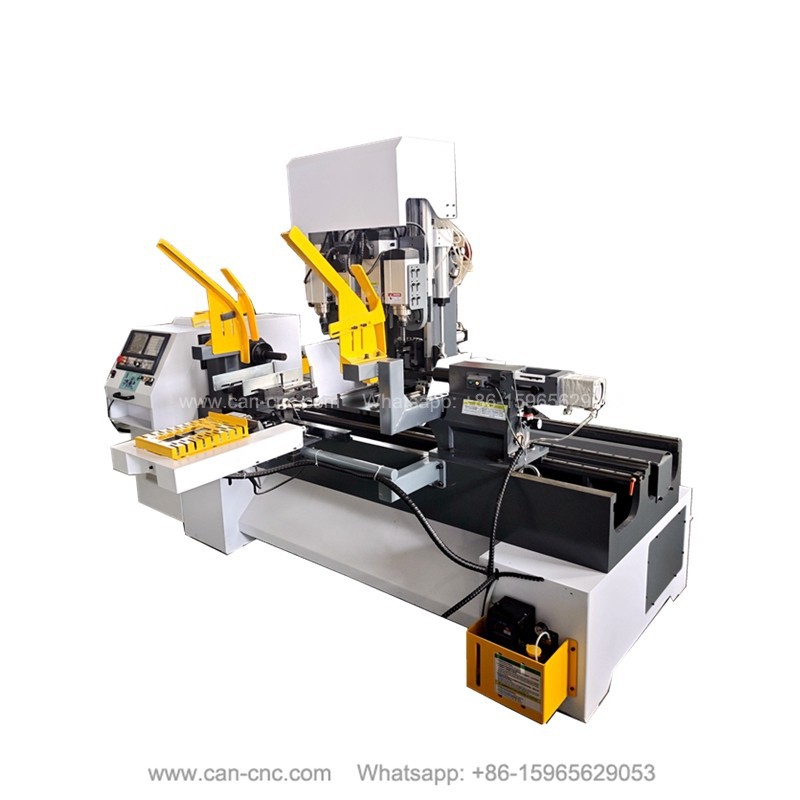

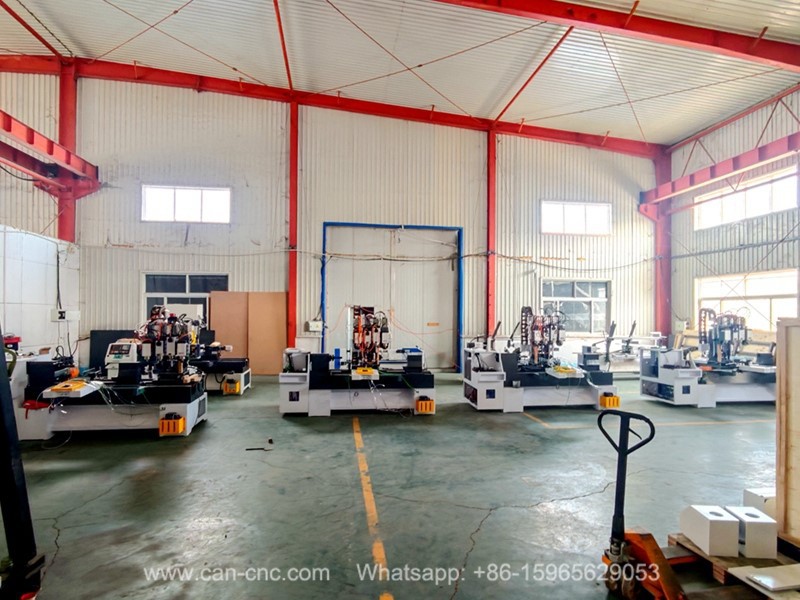

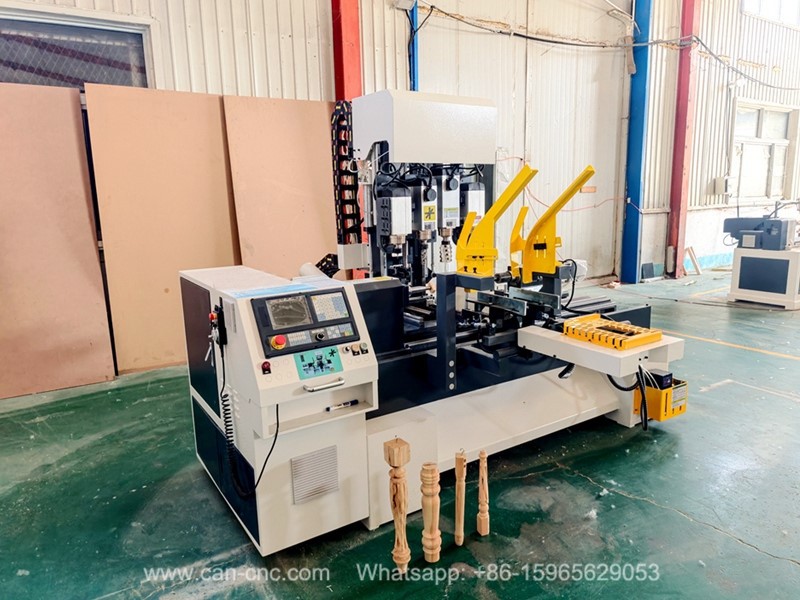

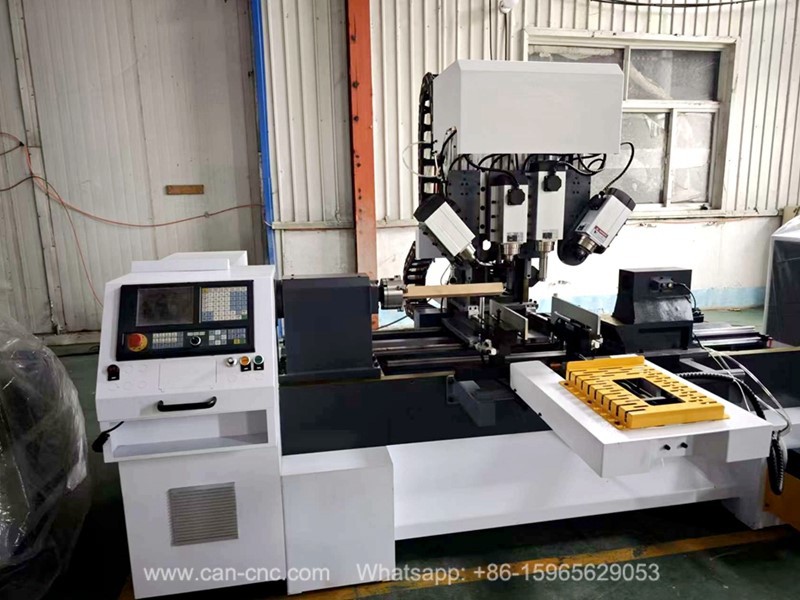

Machine Details:
The maximum working length of the 4 axis wood turning center for milling broaching is 1500mm, and the
maximum turning diameter is 300mm. The machine is single-axis machining with a stabilizing ring specially
designed for machining small pieces of wood, ensuring no vibration during machining.
The machine adopts Servo large drive to provide strong power; there is also a linear square rail from Taiwan
Hiwin inside, which cooperates with TBI25 ball screw to improve machine precision; stepless frequency
conversion speed regulation system can automatically locate the best speed and reduce energy consumption,
the effect of cost saving.

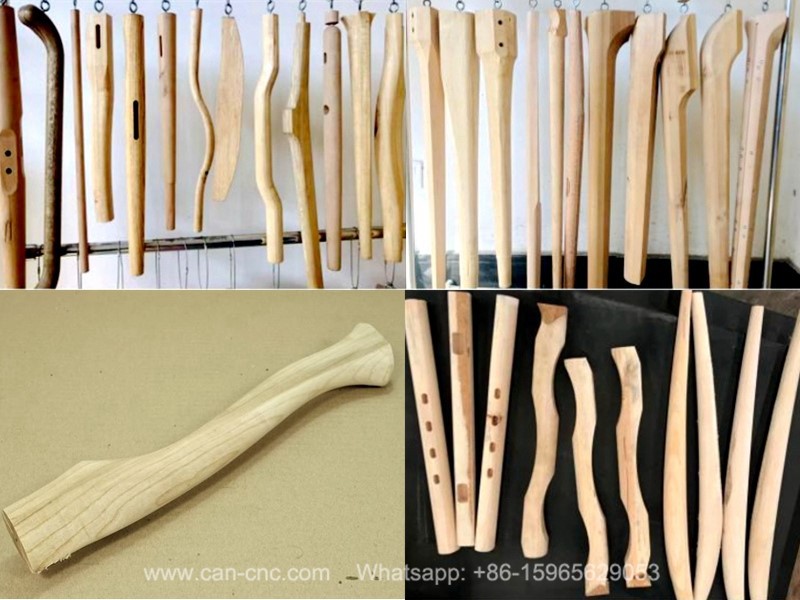

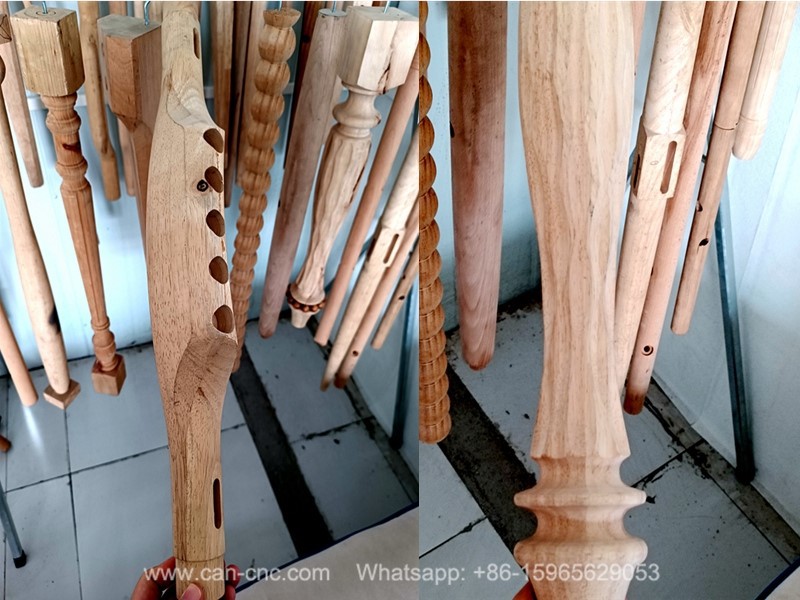

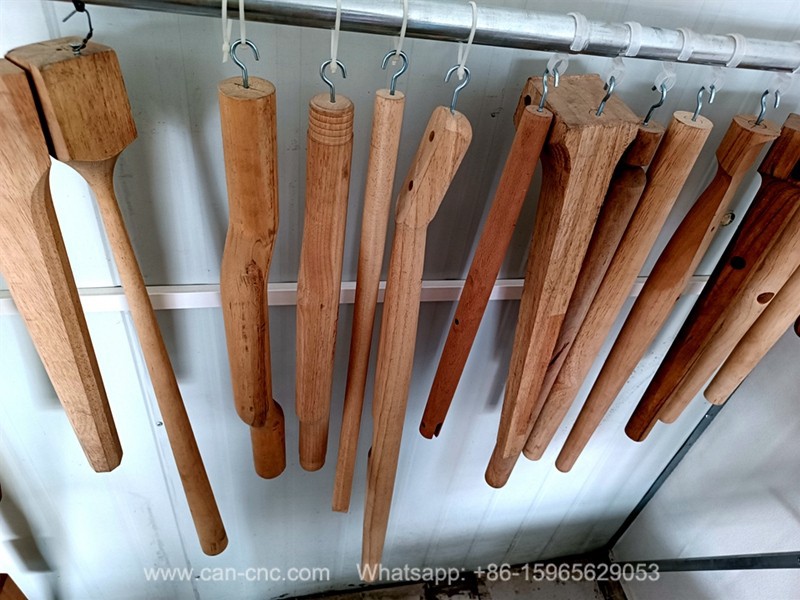

Samples Applications:
It can process lots of complex wood table legs, wood arts and crafts, and wooden parts elements with
different strange shapes.
