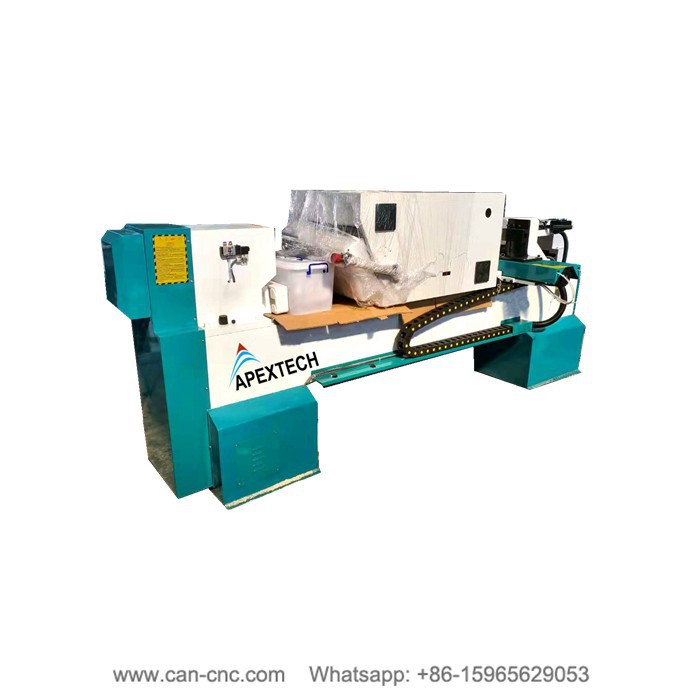

Wooden Stair Railing Making Machine

Advantage of Wooden Stair Railing Making Machine:
Electric spindle with Good precision, powerful, and durable.
Power is 4.08HP (3.0KW), 18,000RPM.
Machine frameis fully cast with iron.
The rigidity is much higher than the welded structure.
All assembly foundational planes are milled precisely through the CNC machining
center to guarantee the computer wood lathe accuracy performance.
Equipped with two wood-turning cutter head, one for roughing and the other for finishing;
the stair banister is completed by single turning.
Send Inquiry

Product Introduction

Introducing the Revolutionary Wooden Stair Railing Making Machine from China



Finding the right woodworking machine for your business can be a daunting task. Most companies are happy with the machines they already have, and they rarely look beyond their current solutions. However, investing in a good quality woodworking machine is crucial when it comes to creating reliable, high-quality products.



If you are a woodworker or in the wood processing business, you know that crafting a non-compromised, well-constructed, and high-quality woodwork takes time, skill, and a lot of patience. However, with the Wooden Stair Railing Making Machine, the art and science of woodcraft can be commoditized to create reliable and consistent woodwork in the shortest time possible.



This machine, manufactured in China, is a revolutionary product that every woodworker should consider. It is versatile, efficient, and has been expertly designed and constructed to help woodworkers perform their jobs efficiently. The machine industry has come a long way, and this product speaks to the precision and quality that such products can offer.



Features



The Wooden Stair Railing Making Machine is a smart solution that makes it easy for woodworkers to craft stair railings that are of high quality. Woodworking is a passion but it can also be expensive, particularly when it involves using irrational cutting procedures that end up in wastage. This machine is designed to help woodworkers achieve their desired results without wasting wood, time or resources.



The machine has a range of sophisticated and advanced features that make it ideal for woodworkers of all levels. These include:



1. CNC Cutting



With traditional stair building methods, the hard work is done by the woodworker, who is required to bend, cut, and shape the wood with different tools. This is time-consuming, and the chances of making mistakes are high.



The Wooden Stair Railing Making Machine handles the hard work through CNC cutting. This feature allows the machine to optimize cuts and shaping with precision and incredible accuracy. This minimizes wastage, making the whole process economical.



2. Automatic Feeding



Another prominent feature of the Wooden Stair Railing Making Machine is the automatic feeding system. As woodworkers know, feeding wood to a cutting tool manually can be a cumbersome process that consumes time and energy. However, this machine allows for automatic feeding, which streamlines the process and helps eliminate mistakes caused by human error.



3. High Precision



The Wooden Stair Railing Making Machine is all about precision. The machine cuts with a precision that is unmatched by traditional methods. This feature is particularly important when making stair railings, as they require a high level of precision to achieve a perfect fit. The machine has an accuracy that cannot be matched by human hands.



4. Durability



The machine's body, rails, and other structural parts are made of high-quality iron. This ensures that the machine can withstand heavy loads, which makes it durable and able to produce woodwork for years, making it a worthwhile investment.



Benefits of the Wooden Stair Railing Making Machine



1. Precision



It is difficult to achieve a perfect fit with traditional methods, as woodworkers have to do the bulk of the work manually. However, the Wooden Stair Railing Making Machine is designed to achieve high levels of precision, which ensures a seamless integration of parts in the final product.



2. Time-Saving



With the automatic feeding system, woodworkers can complete their work in a shorter time. This is a huge benefit, particularly if you are looking at large-scale wood processing.



3. Economical



The machine's CNC cutting reduces wood wastage, which can be a major issue for woodworkers. This helps woodworkers to save money, and this is particularly important when working with valuable wood.



4. Versatile



The machine's versatility allows woodworkers to produce different types of woodwork, such as balusters, handrails, and post caps. This makes the machine an all-in-one solution for woodworkers.



In conclusion, the Wooden Stair Railing Making Machine is a reliable and versatile woodworking machine that woodworkers should invest in. It is an ideal solution that enables woodworkers to craft high-quality stair railings that are precise, efficient, and high-quality. It is also an excellent solution to wastage, saving both time and money. In addition, this machine is durable and versatile, which makes it an ideal investment for woodworkers who want to streamline their operations.



So, if you are looking for a reliable and efficient woodworking machine, the Wooden Stair Railing Making Machine from China is an excellent choice. Invest in this revolutionary product today and enjoy the benefits of high-quality and cost-effective woodcraft.




Application:

Stair column, curved round, vase, table and chair legs. European-style furniture Roman pillars, wooden hangers and

face plates, cylindrical and curved, spherical and other complex shapes of rotary wood products or semi-timber products.

wooden stair railing making machine samples (3)

wooden stair railing making machine samples (2)

wooden stair railing making machine samples (1)


Specification:

Machine Model

1530 Wooden Stair Railing Making Machine

Place of Origin

China

Processing Size

1500mm Length x 300mm Diameter

Max Diameter

300mm

Controller System

DSP Remote Controller/ LR Panel Controller

Drive

Yako 2d811 big drive

Square and Slider

Imported Taiwan Hiwin Square and Hiwin Slider

Main Motor Power

5.5KW

Machine Weight

1460KG

Frame

Whole Iron Casting

Frequency Inverter

Fuling frequency inverter/ Best frequency inverter

Ballscrew

Imported TBI25 Ballscrew

Machine Size

3160x1350x1780mm

Package Size

3360x1600x1980mm

power matic wood lathe details (4)

Two Blades on the Lathe

Yako 2d811 big drive is with higher stability and Anti-interference ability.


power matic wood lathe details (1)

Two blades single axis: Sharp and durable turning tool, fast processing speed.

Heavy duty frame: Strong stability, long using life, with more stable machine operation.


power matic wood lathe details (2)

One bow cover: The one bow cover tightens the wood material to prevent the wood from shaking, and ensure the wood turning is with more precision and good effect.


power matic wood lathe details (3)

One-power chuck: The tail spindle motor drive drives one chuck to rotate, providing powerful power.

25mm Hiwin square rail with long lifespan.



Our support?

Pre-Sales Service:

1.Inquiry and consulting service, give you the professional suggestion for chose machine.

2.Sample testing according your demand.

3.Visit our Factory.

4.Respond to customer's questions in timely and effectively.

After-Sales Service:

1.Support manual and training video for how to install and use machine.

2.Engineers available to service machinery overseas.

3.Provide online services to customers such as Skype, WhatsApp, Wechat, Facebook and so on.

factory show



Package, Deliver, Shipping:

Export equipment is uniformly packed in standard wooden boxes.

Goods from coastal countries are transported by sea to designated ports in destination countries, and goods from landlocked countries are transported by train or car to destination cities.

delivery (7)
