Large Lathe Machine For Wood Turning
video
Large Lathe Machine For Wood Turning

Large Lathe Machine For Wood Turning

This kind 1530 large lathe machine for wood turning is equipped with one blade for turning function, and one side 3.5kw spindle for engraving/twisting/hollowing on woodwork, and one planner for planning function, also one polishing function, which is very friendly for processing the wood furniture.
#Cheap price.
#Free training.
#Maximum working length is 1500mm,2000mm,3000mm,4000mm etc.
#Max.turning diameter is 300mm.
#You can directly use the AutoCAD software to draw your designs, it is easier for drawing design, then output the dxf. file which our wood cnc lathe can read it directly, so that the machine can work on it.
Send Inquiry

Product Introduction

Introduction:

This large lathe machine for wood turning procesing can be 1500mm, 2000mm, 3000mm, 4000mm.

This wood lathe mainly has four function:

#1). One blade for turning function.

#2). One planner for planning function

#3). One 3.5kw aircooling spindle for engraving/twisting/hollowing on woodwork.

#4). One polishing function for option

#5). Auto matic feeding system to load&unload the wood pieces automatically, saving labor and improving

the working efficiency.

Applies to furniture, staircases, decorative, wooden crafts manufacturing factory, etc.

The final products include various cylindrical working pieces, tubular shape and vehicle wood crafts, such as

various staircase column, roman column, general column, tables or chairs legs, washstand, wooden vase,

wooden table, baseball bat, car wooden furniture, children' s bed column, etc.

large lathe machine for wood turning 4

large lathe machine for wood turning 3

Specifications:

Machine Model

1530-Large Lathe Machine For Wood Turning

Processing Size

1500mm Length x 300mm Diameter

Max Diameter

Single Axis Work: Diameter can be 300mm

Controller System

Panel Controller

Drive

Yako 2d811 big drive

Square and Slider

Imported Taiwan Hiwin Square and Hiwin Slider

Main Motor Power

5.5KW

Spindle

One 3.5kw aircooling spindle for engraving/twisting/hollowing on woodwork.

Machine Weight

1800KG

Frame

Whole Iron Casting

Ballscrew

Imported TBI25 Ballscrew

Machine Size

3100x1300x1700mm

Package Size

3300x1550x1900mm

Suitable Material

All kinds of wood can be cut, processed and carved, such as oak, beech, birch, teak, pineapple, red oak, sapele, rosewood, etc.

Guarantee

2 years for free, lifetime warranty

large lathe machine for wood turning details 1

large lathe machine for wood turning details 5

large lathe machine for wood turning details 7

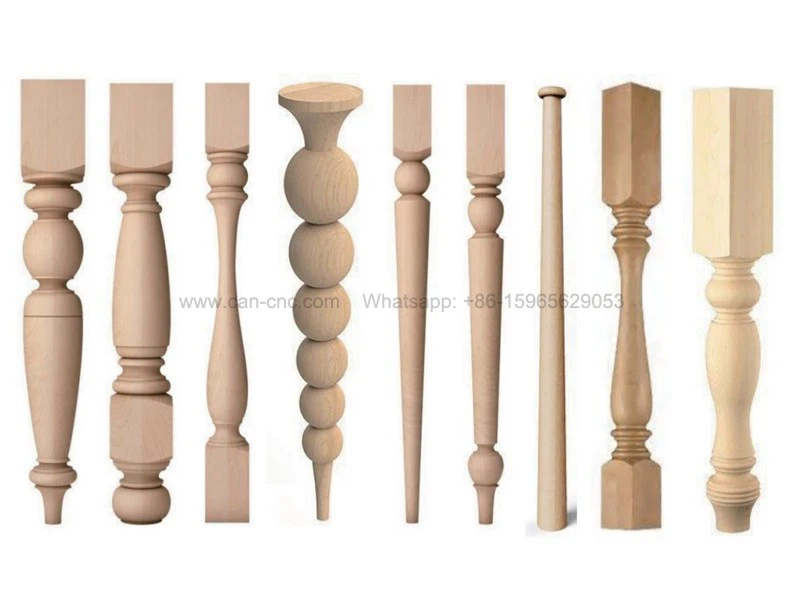

Samples:

#1). Furniture making: You can also use it to turn table lamps, candlesticks, and other home decor items.

#2). Woodturning: Woodturning is a popular hobby that involves turning a block of wood on a lathe to create

bowls, urns, and other decorative items.

#3). Musical instrument making: suitable for musical instruments such as drums, guitar necks, and even

woodwind instruments.

#4). Sculptures and carvings: A large lathe machine for wood turning can be used to create intricate designs

and textures on sculptures and carvings.



large lathe machine for wood turning details 8

large lathe machine for wood turning samples 1

large lathe machine for wood turning samples 2

large lathe machine for wood turning samples 3

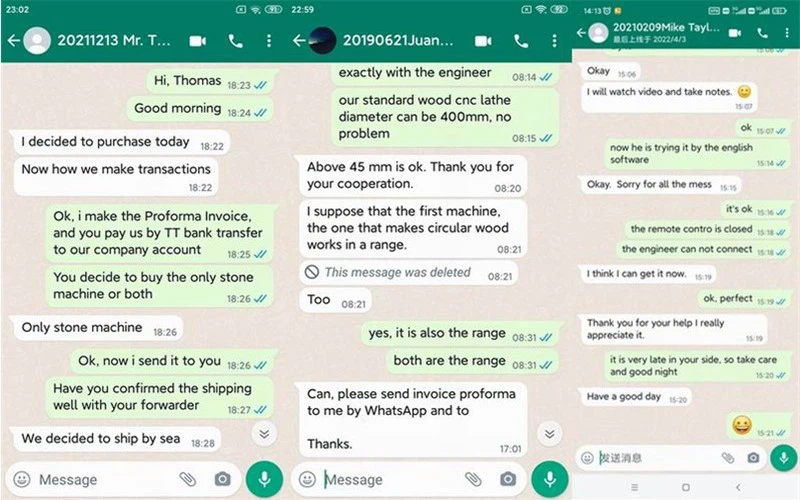

Reviews from Customers:

Reviews from Customers 1

Reviews from Customers 2
