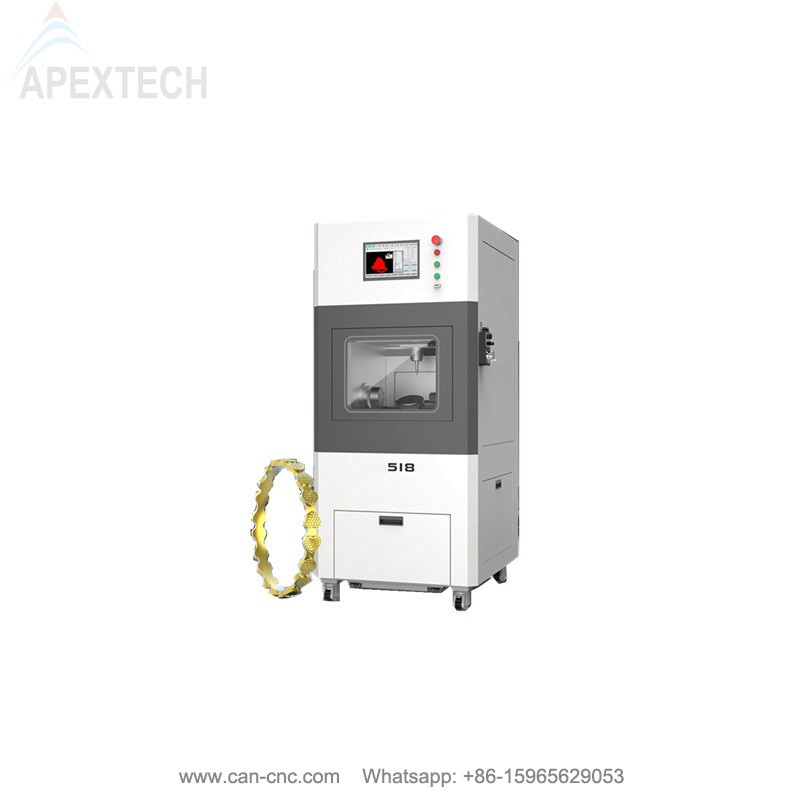

1. Brief Introduction:
The cnc gold engraving router is equipped with an automatic tool change system.
Automatic Tool Change System: Equipped with a 12-tool disc-type magazine,it eliminates the need for
manual tool changing,significantly improving machining efficiency.
Its A-axis cradle combined with C-axis rotation design offers enhanced stability and flexibility, allowing
complex 3D curved surface engraving to be completed in a single clamping.
2. Cnc Gold Engraving Router Features:
1). Precision Automatic Tool-Changing Spindle:
A high-power 4kW precision spindle featuring automatic tool changing, with a maximum rotational speed of
40,000 RPM. It offers high precision, high torque, and robust cutting capabilities, while maintaining low noise
levels to enable continuous machining operations.

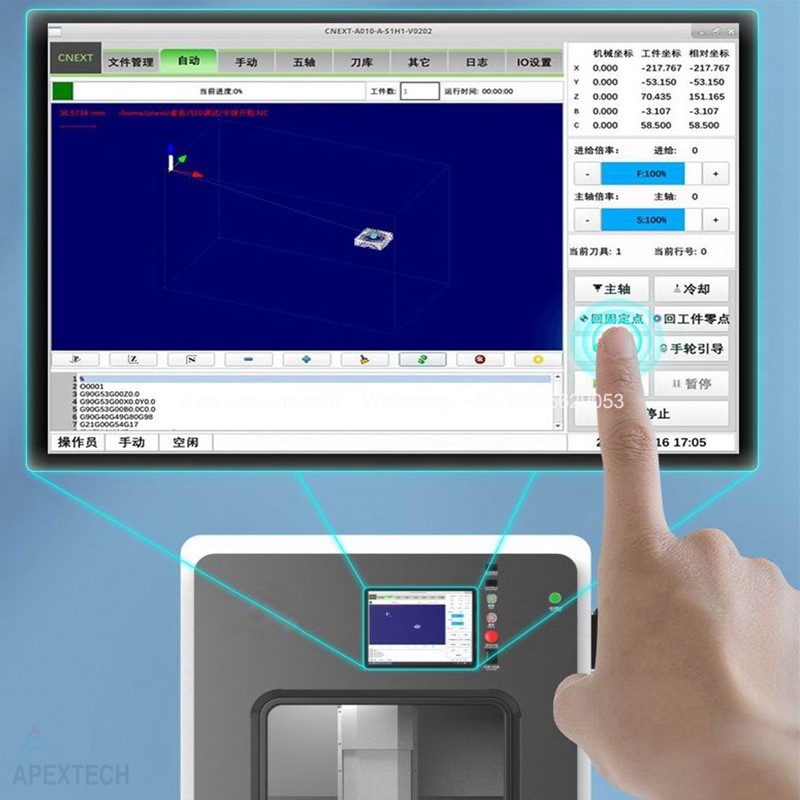

2). The system enables programming-free machining, as it comes pre-loaded with toolpath files for various designs,
which can be directly selected for immediate use, offering exceptional
convenience and ease of operation.
3). Large-Sized, Heavy-Duty, Anti-Slip, and Anti-Vibration Machine Feet: Boasting exceptional load-bearing
capacity and providing stable support, these feet effectively ensure the stability of the machining process.
4). IP67 Waterproof LED Lighting: The work enclosure is equipped with high-quality IP67-rated waterproof LED
tubes, featuring rapid heat dissipation and a long service life; this also facilitates easy real-time monitoring of
the engraving machine's operation and the material being processed.

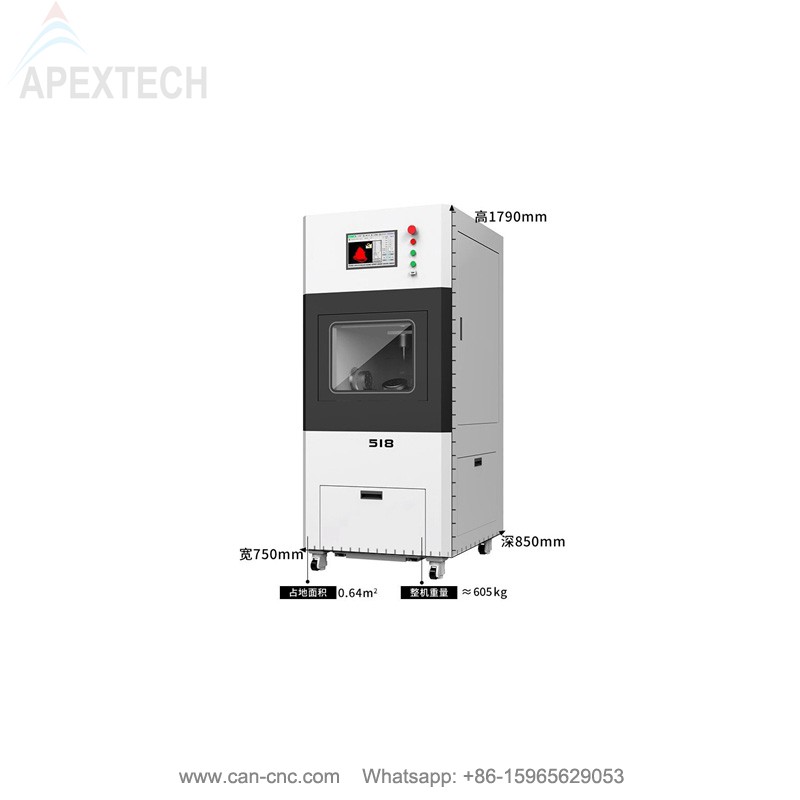

Compact body design:Occupies minimal space,making it ideally suited for goldsmith shops,
jewelry manufacturing workshops,and jewelry design studios.
3. Parameters:
|
Machine Model |
Cnc Gold Engraving Router-JM518 |
|
Place of Origin |
China |
|
XYZ Tavel |
230x260x180mm |
|
Working Diameter/Height |
100x100mm |
|
XYZ Axis Positioning Accuracy |
0.01/0.01/0.01mm |
|
A/C Axis Positioning Accuracy |
0.01° |
|
XYZ Axis Repeat Positioning Accuracy |
0.01/0.01/0.01mm |
|
A/C Axis Repeat Positioning Accuracy |
0.01° |
| Spindle Cooling Method | Watercooling/Oil Cooling |
|
Tool Magazine Capacity |
12 disk knife magazines |
|
Tool Holder Type |
T11-ER11-23 |
| Transmission Screw/ Liner Guide | Ground Ball Screw/ H-grade liner guideways |
| Machine Frame | Integral Cast Iron, Stainless Steel, Sheet Metal |
| Whole Machine Weight | 605kg |
| Guarantee | 2 years for free, lifetime warranty |
4. Applications:
Suitable to engraving on gold rings, gold bracelets, gold pendents, gold beads and silver rings,
silver bracelets, silver pendents, silver beads etc.
5. Products Details of Cnc Gold Engraving Router:
The system enables programming-free machining, as it comes pre-loaded with toolpath files for various
designs,which can be directly selected for immediate use, offering exceptional
convenience and ease of operation.
Equipped with RTCP(Rotation Tool Center Point) functionality, it ensures high precision, efficiency , and
flexibility when processing complex curved surfaces, fine details, and multi-angle machining tasks.

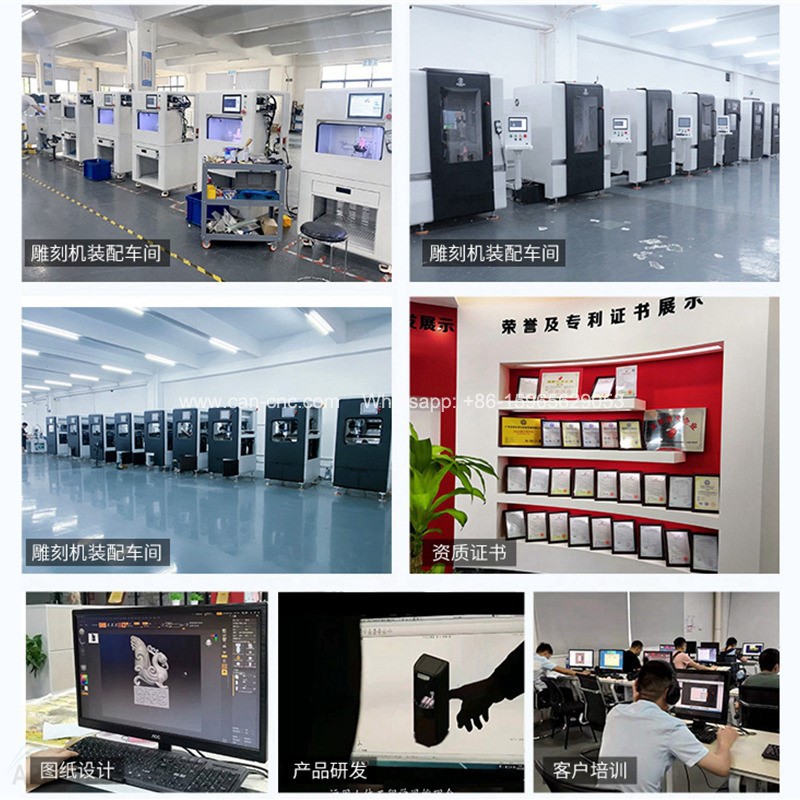

6. Cnc Gold Engraving Router Factory:
7. Packaging And Delivery:
All the machines are well tested and verified for quality before delivery. It is packed and then transported
on pallets to ensure safe and secure delivery. The machine arrives at the customer's premises fully assembled,
with all necessary parts and instructions for installation and operation.
Wrap film packaging or wooden case for baler products.
Inner packaging:
· Cover the entire lathe with professional stretch film.
· Stretch film wrapping with foam protection at every corner.
Outer packaging:
· Standard export wooden boxes and plywood boxes.
· Save container loading space as much as possible.
Transportation:
· We support sea, air, ground and express.
8. Our Certificate
