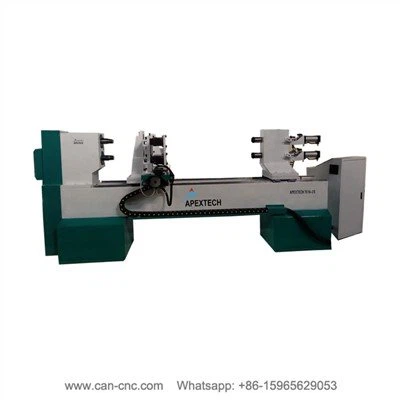

Introducing the 2 Axis Automatic CNC Wood Lathe
Are you looking for a precision wood lathe solution that can help you create beautiful and intricate wood designs? Look no further than the 2 Axis Automatic CNC Wood Lathe. Our top-of-the-line wood lathe is designed to provide high-quality results with effortless precision, making it an ideal choice for woodworkers and craftsmen of all skill levels.
Here are some key features and benefits of the 2 Axis Automatic CNC Wood Lathe:
Highly Precise CNC Technology
Our wood lathe is powered by industry-leading CNC technology, which ensures the most accurate and precise cuts possible. This allows you to create intricate wood designs and perfect curves effortlessly, with superior precision and accuracy.
Automatic Two-Axis Controls
The 2 Axis Automatic CNC Wood Lathe is designed to move along two axes, which allows for automatic cutting and shaping in multiple directions. This means you can produce high-quality wood products without the need for manual adjustment, saving you time and effort.
Easy-to-Use Interface
Our wood lathe is designed with a user-friendly interface, making it easy to operate and control. The interface is intuitive and simple, allowing you to quickly and easily program your machine to your desired specifications.
Sturdy and Durable Construction
The 2 Axis Automatic CNC Wood Lathe is built with high-quality materials that are sturdy and durable, making it an excellent long-term investment. Our wood lathe is designed to withstand heavy use and provide reliable performance for years to come.
Comprehensive Technical Support and Training
We offer comprehensive technical support and training to ensure that you get the most out of your wood lathe. Our team of experts is available to provide guidance and assistance with setup, operation, and maintenance of your machine, ensuring that you can get maximum value from your investment.
In summary, the 2 Axis Automatic CNC Wood Lathe is an ideal solution for woodworkers and craftsmen who are looking for precision, accuracy, and ease of use. With its highly precise CNC technology, two-axis controls, easy-to-use interface, sturdy construction, and comprehensive technical support and training, this wood lathe is the perfect choice for those who demand the best in quality and performance. Contact us today to learn more about our product and how it can help you achieve your woodworking goals.
The 2 Axis automatic CNC wood lathe is suitable for the production of: Round profiles, such as stair posts, railing rungs, chair or table-legs, wood vase, lamp parts, baseball bat, wood arts and crafts, pencil vase and so on.
Advantages of 2 Axis CNC wood turning lathe:
Because the equipment adopts the thimble clamping method to fix the workpiece, and the processing method of vertical milling and routing, the equipment can only process the strip workpiece whose center points at both ends of the workpiece are on the same parallel line (the workpiece as shown in the figure below), and can process the workpiece. Processes such as vertical milling, alternate drilling of two router spindles, grooving, and forming knife forming are carried out.
(1). It is a very precise, efficient CNC wood turning lathe with first-class workmanship.
(2). In heavy steel construction to avoid vibration, processed surface is smooth and precision.
(3). Very simple to use and practice-oriented operation. Workers just know Arabic numerals could control the machine.
(4). Infinitely variable DC feed motor with feeding speed of 0 to 3600rpm.
(5). Single sided carbide blades for simple blade replacement.
(6). Main parts are imported and excellent quality, e. G. Linear rails, ballscrews, frqeuency charger are imported from Taiwan, high precision and durable.

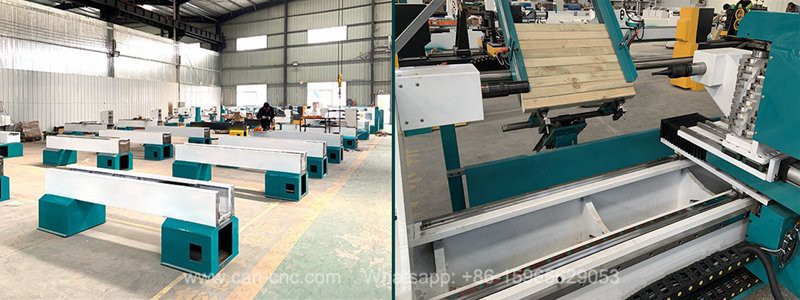

Welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
Imported square rail guide and high precision ball screw transmission.
Controller System with buttons control, easy to learn and operate.
Automatic loading and unloading system: using single-blade feed, the speed does not lose double-blade; automatic loading and unloading on the side, saving labor.
Double Spindles with vertical position to make the processing effect precise.
Hybrid servo motor and drive system with more power to drive the cnc turning lathe working.
Techinical Parameter:
| 1 | Model | 1516-2 Axis Automatic CNC Wood Lathe |
| 2 | Max processing length | 1500mm(can custom 2000/2500/3000mm) |
| 3 | Max turning diameter | 160mm |
| 4 | Air pressure | 0.6-0.8Mpa |
| 5 | Power supply | AC 380V 3 phase 50HZ/60HZ(can custom 220V) |
| 6 | Max feed rate | 2000mm/min |
| 7 | min setting unit | 0.01cm |
| 8 | Transmission type | Ball screw for Y axis |
| 9 | Guider | Taiwan Hiwin orbit |
| 10 | Main shaft rotating speed | 0-3000r/min |
| 11 | Motor power | 4kw |
| 12 | Cutter material | hard alloy blade |
| 13 | Control System | LR Panel control system |
| 14 | Hand controller recognise file | *.dxf |
| 15 | Drawing Software | AutoCAD |
| 16 | Command Language | G code |
Packing & Shipment: Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection.
Outside: Solid Seaworthy Wood Box Package.
Below: Steel Tube.
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free.
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information.
