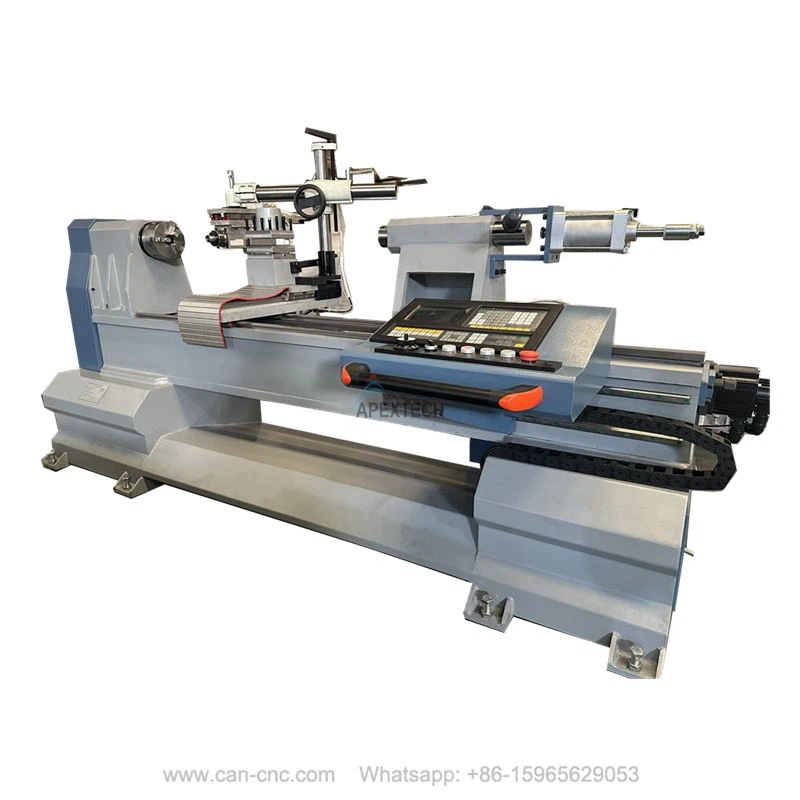

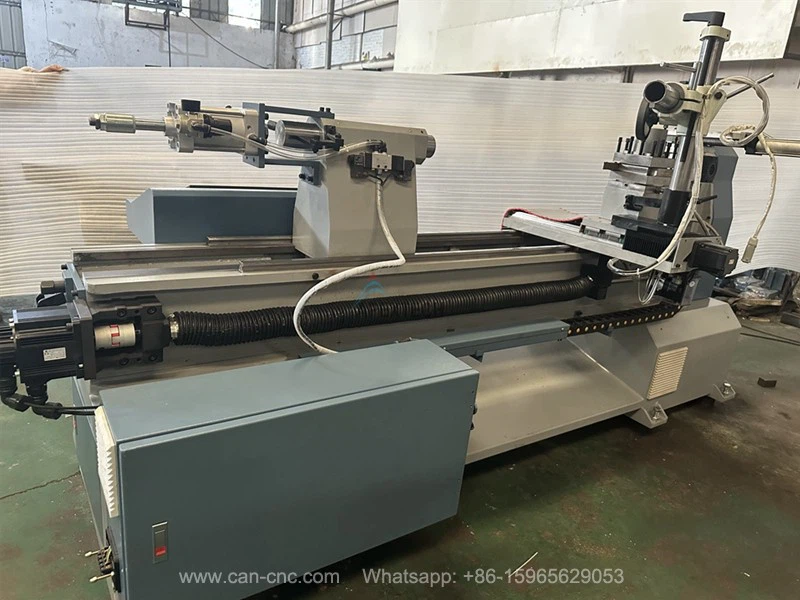

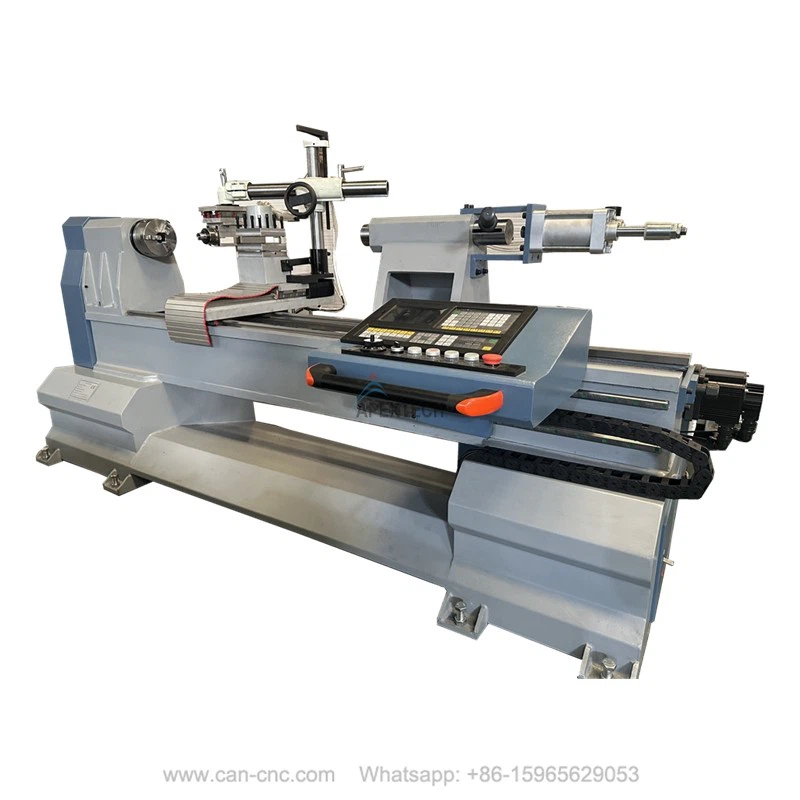

Wood Bowl Making Automatic Lathe

This wood bowl making automatic lathe is used for turning wooden bowls, wooden vases, candlesticks, balls, grinders, goblets, furniture legs, wooden toys and handles of any items.
It can also drill out the inner hollow of wooden bowls and vases according to customer needs, and can also carve different patterns on the outside of wooden bowls.
Send Inquiry

Product Introduction



Are you looking for a machine to make exquisite ornaments, such as wooden vases, wooden bowls, and

wooden plates? Yes, we have a machine that can meet your needs. This machine is specially developed by

our company and improved according to customer experience. It is equipped with 3 turning tools, including

rough machining tools for turning the appearance, finishing tools, and internal drilling tools. It is also equipped

with a motor spindle, which can carve exquisite patterns on the appearance of the sample according to customer

needs to decorate the sample and make the sample look more tasteful and upscale.

wooden bowl making automatic lathe 1

What is a wood bowl making automatic lathe?
A bowl lathe is a quick and easy woodworking tool used to shape hardwood blanks into wooden bowls with

complex curves. The finished wooden bowls can be used as interior decorative ornaments.

How does a wood lathe turn a bowl?
A CNC wood lathe uses a computer to control the lathe to turn a block of wood and use turning tools to create

a bowl shape. It uses a chuck to hold the wood workpiece, and the fixed turning tool can move, cutting, shaping,

and drilling the wood blank during the movement.

How much does a wood bowl making automatic lathe cost?
The average cost of owning a bowl CNC lathe is $5,600. Entry-level bowl lathes start at about $4,720, while

professional CNC bowl lathes cost up to $6,870.

wood bowl making automatic lathe 3

Machine Model

1530 Wood Bowl Making Automatic Lathe

Max Diameter

300mm

Processing Length

1400mm

Spindle Motor Power

4kw

Controller System

Panel Controller with English version

Control electrical components

Zhengtai Brand

Spindle control inverter

High-power spindle inverter with 5.5KW

Movement execution block

Tool holder: Precision Linear Guide Screws and Servo knife station

Movement control system

Servo model

Machine power

6kw

Working Voltage

380V, 3 phases

Package Size

3200x1400x1500mm

Whole machine weight

1600kgs

Guarantee

1 year for free, lifetime warranty

wood bowl making automatic lathe 5

wood bowl making automatic lathe details 1

wood bowl making automatic lathe details 2

Wood Bowl Making Automatic Lathe

3 different tools can be installed on the lathe when processing the bowls, it can change the tools automatically

during the operation.

wood bowl making automatic lathe details 5

The controller system is with screen, panels and buttons, easy to learn.  Can be English Language.

wood bowl making automatic lathe details 6

This the dust-proof for the ballscrew to protect the ballscrew and keep it clean.



The 1530ATC wood bowl making automatic lathe is a very popular multifunctional woodworking lathe. This

machine is equipped with automatic tool change function and engraving and milling function, which means

that you can install 3 different tools at the same time. Each tool can be customized and replaced according to

different sample sizes and shapes. After the tool is installed and fixed before processing, there is no need to

stop the machine to install the tool during the processing process, which can greatly improve the processing

efficiency and quality.
This lathe machine is also equipped with a spindle, which can engrave the sample, further beautify the

appearance of the sample, and meet the engraving needs of customers. The spindle can also mill and groove

the sample, further enriching the function of the machine.

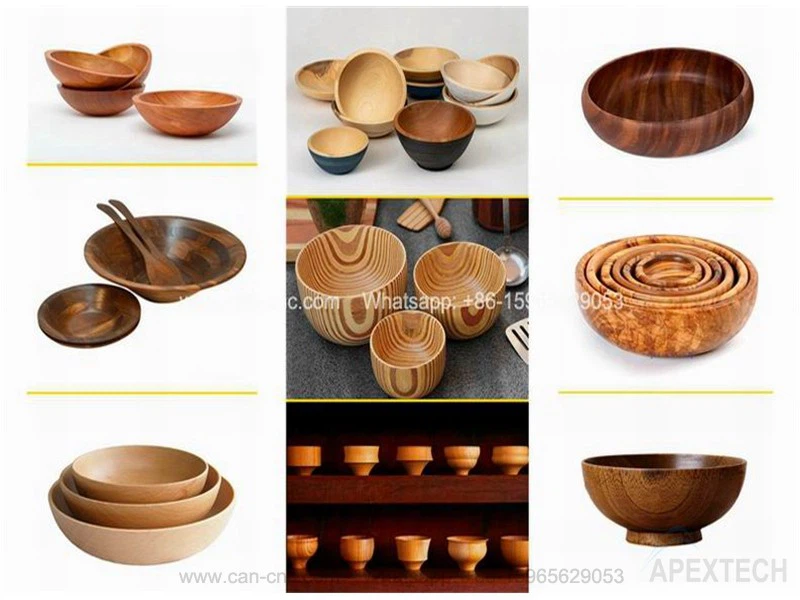

wooden bowls and plates making









wood bowl making automatic lathe 1

wood bowl making automatic lathe 2

wood bowl making automatic lathe 3

wood bowl making automatic lathe 4

wood bowl making automatic lathe 5

wood bowl making automatic lathe 6

wood bowl making automatic lathe 7

wood bowl making automatic lathe 8


Package and Delivery by wooden case:
