Jinan APEX CNC Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of cnc automatic wood turning lathe in China. With abundant experience, we warmly welcome you to buy advanced cnc automatic wood turning lathe for sale here from our factory. Good service and quality products are available.
APEXTECH Brand CNC Automatic Wood Turning Lathe have different models, such as 1530,1516,1512,1020,2030 etc. The size can be customized, we offer 1 year warranty, the whole life technical support. For first time coopeation, we will help to solve the below issues, such as to choose economic but high-performance machine, shipping cost, import custom tax fee, the after sale problems etc.

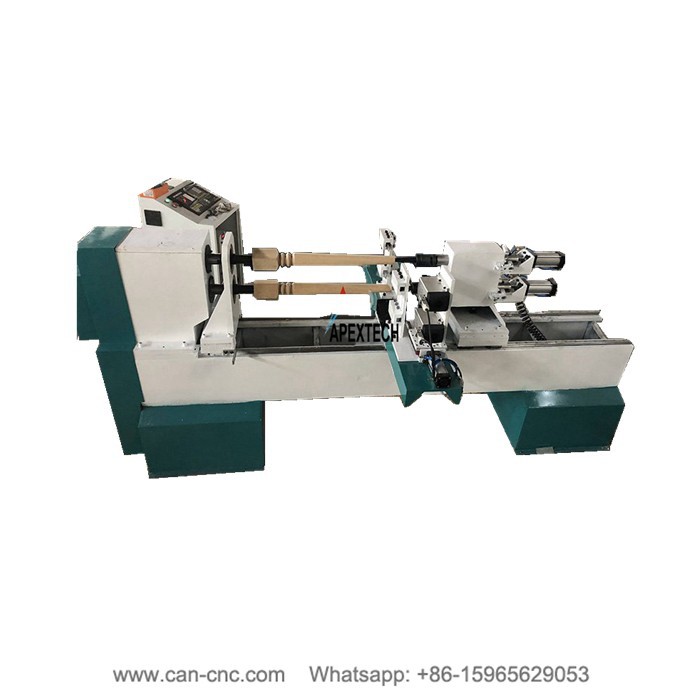

CNC Wood Turning Lathe is a device that can create items such as stairway posts,designs on wood,and more.
A CNC wood lathe is operated by a panel which is controlled by the user.
CNC Turning Lathe machine is designed for cylindrical or conoid workpieces, for example pillar, banister, chair legs,etc.
All lathes work the same way. USB access device, turning garland, a molding, single axis with double blades, 2 pieces works at the same time with higher efficiency.
Parameters
| Description | Parameters | |||

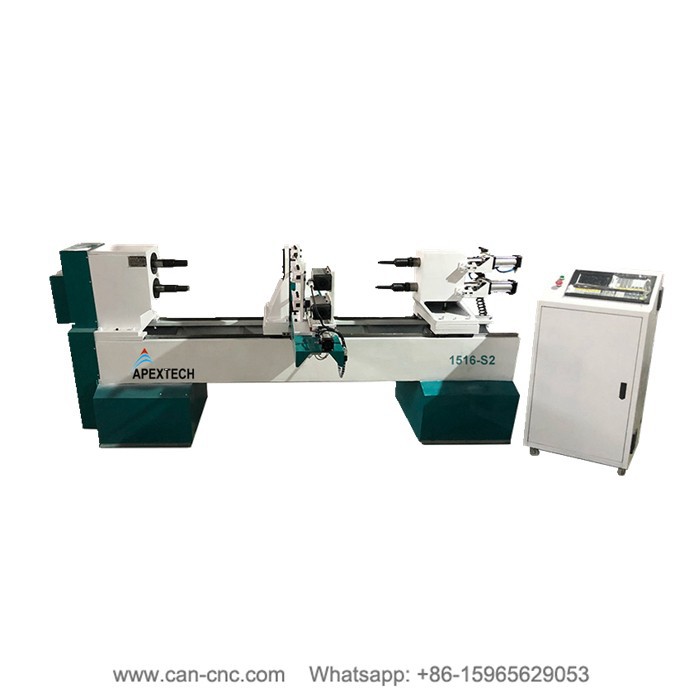

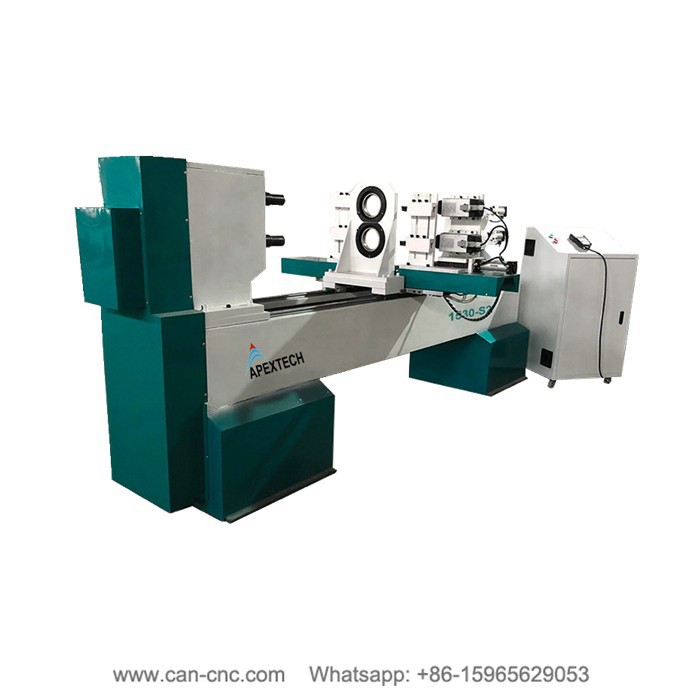

| Model | APEXTECH 1516-2S | APEX1530 | APEX2030 | Customized |
| Table Bed Size (mm) | 1500 *160mm | 1500 *300mm | 2000 *300mm | Customized |
| Controller system | Panel control system | |||
| Cutting speed | 8-15m/min | |||
| Inverter | Fuling inverter | |||
| Driving System | Stepper motor and drivers | |||
| X,Y,Z axis guide rail | Taiwan HIWIN guide rail | |||
| Repeat positioning accuracy | ±0.05mm | |||
| Process precision | ±0.35mm | |||
| Transmission model | Gear rack drive | |||
| Working Voltage | 220V/ 380V, three phase | |||
| Software supported | TYPE3/ARTCAM/UCANCAM/CAXA/MASTERCAM Other software output code | |||
| Cutter | Four cutter Two spindles and two rotary axis | |||
Configurations:
Every key component of our CNC wood lathe is carefully selected. Reliable control system, stable electric parts, heavy‑duty mechanical structure, matched pneumatic and lubrication systems work together to deliver high‑precision, stable‑running performance for long‑batch wood turning jobs.
Double spindles for engraving, grooving, milling, slotting, twisting function
✅ Dual high‑power milling spindles for turn‑mill composite function;
✅ One‑clamp multi‑processing: turning, grooving, carving, thread milling;
✅ Avoid repeated workpiece re‑clamping, improve precision & efficiency;
✅ Perfect for complex decorative wooden components.
This CNC wood lathe is equipped with two high‑power milling spindles, realizing lathe‑milling composite processing. Besides normal turning work, it can complete grooving, carving, threading and pattern milling on wooden workpieces in one clamping. Double spindles work independently. You can perform turning and milling without re‑installing the workpiece. Ideal for complex‑shaped table legs, chair legs, stair posts and decorative wooden parts. Spindles are mounted on precision linear guides, ensuring stable cutting and clean surface effect.
YAKO stepper drivers inside cnc wood lathe electrical cabinet
Neatly arranged electric cabinet fitted with YAKO stepper motor drivers and switching power supply. Standard wiring layout guarantees stable signal transmission.
High‑performance drivers deliver powerful, smooth motion for X‑axis and Z‑axis, ensure precise movement during wood turning.
CNC wood lathe control panel with handheld MPG handwheel
Advanced dedicated CNC control system for wood lathe, equipped with colorful LCD display, full‑function keyboard, emergency‑stop button and handheld MPG handwheel.
Operators can input G‑code, set machining parameters, simulate programs and manually fine‑tune processing position via handwheel. User‑friendly interface lowers operation threshold for woodworking users.
Fuling inverter for cnc wood lathe spindle speed control
Fuling inverters control spindle speed steplessly. Users can adjust spindle rotation speed according to different wood materials and processing crafts.
Complete contactors and circuit breakers provide overload and short‑circuit protection for safer machine operation.

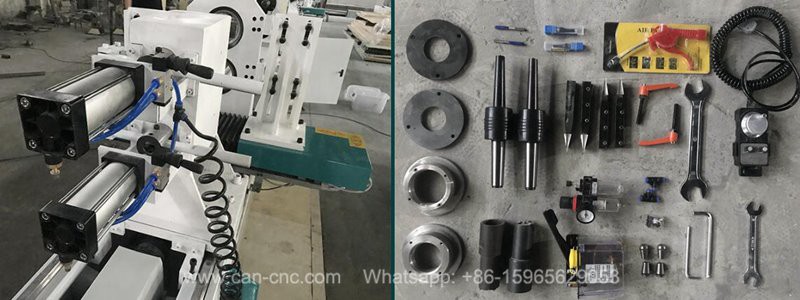

Core mechanical parts of cnc wood lathe spindle, tool post, square guide rail, pneumatic tailstock
Core mechanical structure of CNC wood lathe. Heavy‑duty spindle housing with high‑precision bearings guarantees stable rotation. Multi‑tool post supports multiple turning tools.
Square linear guide rails ensure smooth movement and long‑term accuracy. Pneumatic tailstock provides automatic workpiece support for long wooden bars.
cast iron frame
The whole machine adopts thickened cast iron frame. Cast iron has excellent vibration‑damping performance. It absorbs cutting vibration during wood turning, reduces tool chatter, keeps stable machining precision, and avoids deformation under long‑time heavy‑load work. Compared with welded steel frame, cast iron frame delivers better surface finish for wooden workpieces and longer machine service life.
Four tool post of cnc wood lathe for rough and finish turning double
Two cutters can perform rough turning and Two cutters for finish turning separately without tool change. It cuts down auxiliary time and raises output for mass production of table legs, chair legs and stair balusters. Each tool is fixed by multiple locking screws, convenient for height adjustment and tool setting. The independent mobile CNC control cabinet is placed behind the machine.
Manual Lubrication Pump for cnc wood lathe
Manual lubrication system regularly delivers lubricant to guide rails and sliding blocks, reduces wear, keeps high machining precision and prolong machine service life.
Air filter regulator for cnc wood lathe pneumatic system
Air filter pressure regulator unit for pneumatic system. It filters moisture and impurities from compressed air, stabilizes working air pressure. Protect pneumatic tailstock and pneumatic clamping parts, extend service life of pneumatic components. Pressure gauge allows real‑time pressure monitoring.
Applications
For the production of solid wood furniture, solid wood staircase, wood columns, solid wood floor racks, wood decorative, wood crafts, such as rotating working pieces machining. Applies to furniture, staircases, decorative, wooden crafts manufacturing factory, etc.
The final products include various cylindrical working pieces, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
why choose us
Responsive Global After‑Sales Support
We supply English user manual, installation guide and video tutorials. Professional engineers provide remote online troubleshooting. Long‑term spare‑parts supply keeps your machine running without worrying about maintenance.
Real factory supply, competitive price without middlemen
Heavy‑duty cast iron frame, excellent vibration absorption & stable precision
Wood‑lathe dedicated CNC system, low learning cost for operators
English documents + remote technical support & long‑term spare‑parts service
Packing & Shipment
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection.
Outside: Solid Seaworthy Wood Box Package.
Below: Steel Tube.
- Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
- Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
- Fumigation-free
- With shipping mark if you like.
- Outside: Marked packing size, model, weight and other information.
