1.Product Description:
This 4040 small stone engraving cnc router is a three-axis stone carving machine that specializes in engraving
jade, and agate pendants. With an enlarged worktable, it can engrave more than a dozen products at one time,
which is very suitable for batch processing in factories.
The main structure adopts the integral casting method, which can make the stone machine tool not deformed
for a long time, and ensure the high rigidity and high anti-vibration performance of the machine tool during
processing.
2.Product Specification:
|
Machine Model |
4040-Small Stone Engraving Cnc Router |
|
X/Y/Z Working area |
400x400x150mm |
|
Controller |
Hand Remote Controller |
|
Weight |
Almost 340kg |
|
Frame |
Integral cast iron, square steel bracket |
|
Carving and the material fixed way |
Substitute wood platen and glue |
|
Engraving Resolution |
±0.01mm |
|
Spindle Power |
1.5KW High-speed water-cooled variable frequency spindle |
|
Spindle Rotating Speed |
0-24000RPM |
|
Processing Speed |
0-4000mm/min |
|
Guide Rail |
Import Square Rail |
|
Ball Screw |
Imported Ball Screw |
|
Drive Way |
Stepper |
|
Clampable Tool Shank Diameter |
2.3mm/3mm/4mm/6mm |
|
Suitable Working Voltage |
AC220V, 50-60Hz |
|
The Whole Machine Power |
1.95KW |
|
Guarantee |
2 years |
3.Application:

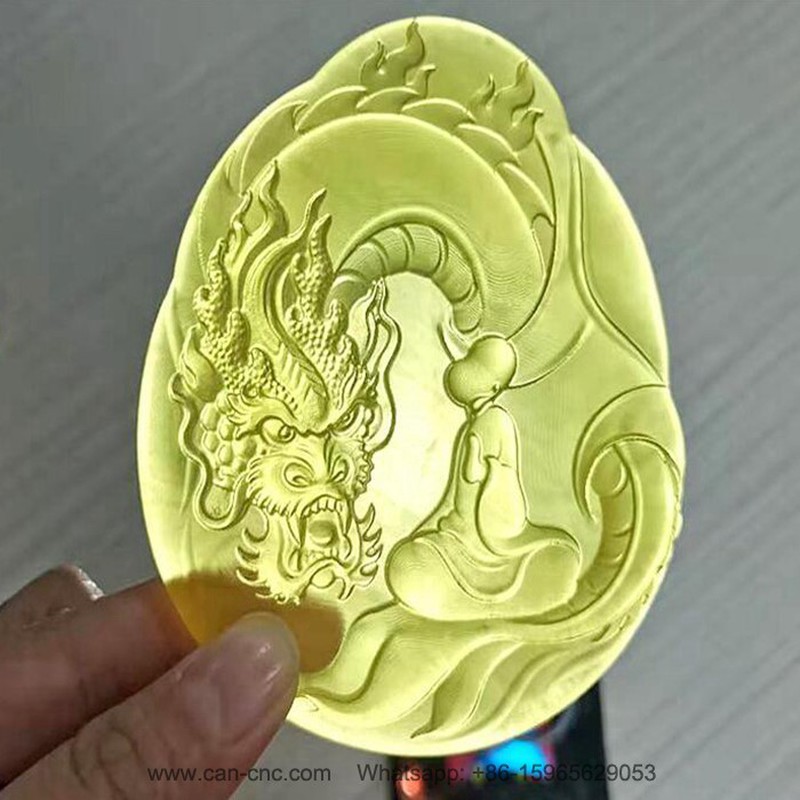

1. Applicable materials: stone, wood, substitute wood, metal, artificial materials, etc.
2. Also Suitable: jade, amber, agate, yellow dragon jade, pebbles and other soft jadeite, as well as glass, silver,
plastic, metal, wood and other artistic crafts for carving.
4.Machine configuration Details:
Stepper motor and drive and the other electric items:
It can provide enough power for carving/engraving on all kinds of gemstone.
It is a kind of engraving cnc machine specially developed for the technical requirements of high-speed
processing of relief carving. It has been loved by processing workshops for its fast-processing speed,
high precision carving, stable performance and high cost performance.
1.5kw watercooling spindle with water cooling spray nozzle+light+Best frequency inverter.
this kind small stone engraving cnc router is with higher precision on all kinds of stone processing.
Equipped with emergency stop switch + Hand remote controller+ inside controller box.
Can clearly show the 4040 small stone engraving cnc router processing condition, it is very easy for you to
learn the small stone engraving cnc machine operation.
