Woodworking CNC Wood Turning Lathe Carving Machine with Spindle for Staircase

The company implements advanced management concepts, introduces advanced technology and talents, and manufactures high-quality CNC Router Wood Carving, CNC Wood Engraving Machine, Full Automatic Gem Faceting Cutting Machine. In the process of development, the company continues to innovate and innovate to enrich the corporate culture and technical content. We are actively looking for our own development position, while making great achievements in R&D innovation and production and operation exhibition, we constantly listen to and meet the needs of our customers, guide and surpass their needs, and win their respect.

1.Production Introduction:

This kind of woodworking turning machine has exquisite craftsmanship, with one-piece molding, simple and easy to operate. It adopts the CNC system controls the turning tool to process the surface of the rotating workpiece, without changing the turning tool, without frequent debugging, and automatically processing the wood according to the design drawing.

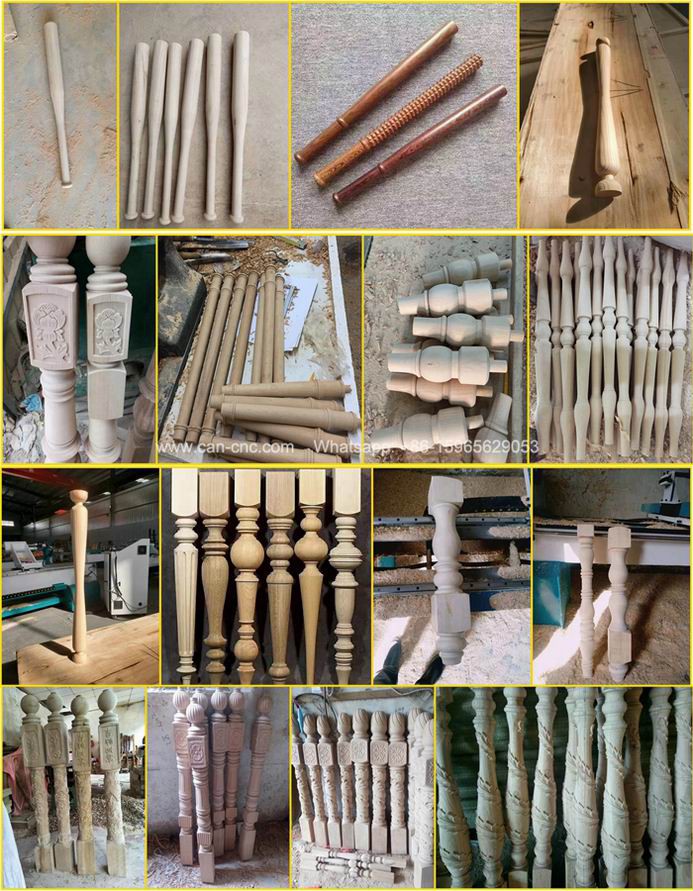

Auto feeding CNC turning milling carving lathe wood lathe center machine with below functions: 1) Wood lathe cutter: for wood turning, make all regular wooden legs;

2) Wood router spindle: Milling +Twisting Line +Hollow out +Engraving +Pulling groove +Cylinder engrave;

3) Wood Planer: make the irregular furniture wooden legs, chair legs with fast speed and high efficiency;

4) Sander optional for polishing.

2.Product Parameter (Specification):

3.Product Feature and Application:

This wood lathe machine combined cutter blade, spindle and planer, can make milling, turning, grooving, twisting line, engraving and planning together.

1.Power part: The frequency conversion speed regulation system is adopted, which can solve the problem of wood flutter by adjusting the rotation speed.

2.Control part: using mature CNC controller, stable work, simple installation and debugging. Adopt international standard CNC language G code. Support a variety of software, support technical function expansion.

3.Movement part: Driven by high-precision stepping motor to ensure the accuracy of processing size. It adopts Taiwan guide rail and combined with ball screw drive. It has strong environmental adaptability and is not afraid of dust.

4.The bed part: casting molding, stable structure, high-frequency quenching and grinding imported linear square rail, low vibration, can ensure high-precision processing.

4.Product Advantages and Details:

The bed frame: casting molding, stable structure, high-frequency quenching and grinding imported linear square rail, small vibration, no deformation, high stability, can ensure high-precision processing.

4 Functions in one wood lathe machine: wood turning, carving, planner, polishing, it can meet your many requirements on the lathe turning machine.

The top four-axis engraving spindle: the top independent engraving spindle, independent control, can be round engraving, flat engraving, slot milling, and face milling.

Stepless frequency conversion speed regulation system: The speed adjustment can automatically locate the optimal turning speed by rotating the knob. By changing the power supply frequency and adjusting the load, it can reduce the power consumption and reduce the processing cost.

Drive power: The use of strict control drive is more stable, and the 24 voltage power supply converts kinetic energy.

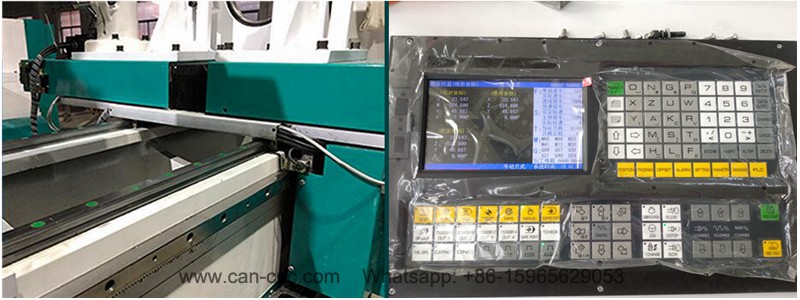

25mm Hiwin square rail with long lifespan.

LR controller with English Version: easy to operate, easy to learn, automatic image recognition,12-inch color large screen, U disk transmission, no need to connect to a computer.

5.How to operate the woodworking turning machine safely?

1. Before operating the woodworking lathe, the workpiece should be firmly installed, the tailstock fixing nut should be tightened, the thimble should be locked with the locking device, the workpiece should be rotated by hand, and the position of the tool holder should be adjusted and fixed. The tool holder should be at the center of the workpiece 2 ~3mm, if the distance between the tool holder and the workpiece is too large, it is easy to tie the knife, causing a safety accident;

2. After the wood is clamped, the chuck must be rotated by hand to correct it, and the top screws of the tool holder and the tool holder must be checked for firmness, and then the power is turned on for a test run;

3. For long materials exceeding 100mm, the top of the tailstock must be used to hold the material during processing;

4. When installing a tool on a woodworking lathe, the length of the tool bar extending out of the tool holder should be shorter than 50mm, and the length of the tool bar should be maintained at 150mm. When processing large workpieces (more than 500mm in diameter), the tool must be fixed on the tool holder. To clamp firmly, the knife should not be too violent;

5. The amount of cutting tool should be appropriate. When rough turning, the cutting amount should be smaller due to the edges and corners of the workpiece. After turning the corners and turning the basic turning, the speed can be increased. Use a flat turning tool for fine turning, and the cutting amount should not exceed 0.8mm. /change;

6.Product Qualification:

7.Packaging Details:

1.Wrapping with water-proof plastic film.

2.Packing in a plywood box.

8. Our Service:

1. One and half years quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when if any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.8 hours on line service each day, free technical support.

5.Machine has been adjusted well before delivery.

6.Provide technical services to the door. (We have professional engineers to offer machine installation commissioning and maintenance).
