1.Video:

2.Application:

The ATC CNC woodworking machine can be used in wooden furniture industry, furniture decoration industry,

woodworking decoration industry, musical instrument industry, wooden handicraft industry. Lacquer door carving,

kitchen window door carving.

It is a replacement product in the furniture decoration industry.

• Wooden industrial products: such as sewing machine countertops, electrical cabinet panels, sports equipment, etc.

• Mould industry: It can engrave all kinds of moulds, wood moulds, aviation wood moulds, propellers, automobile

  foam moulds.

• Musical instrument industry: It can engrave the three-dimensional surface of musical instruments and cut the shape.

• Decoration: Acrylic sheet, PVC board, MDF sheet, plastic and soft metals such as copper and aluminum.

3.Product Specification:

4.Product Details Information:

# Large steel tube structure, the body is sturdy, reliable and durable. Large bearing capacity and long service life.

# High-quality components make the machine high precision and high efficiency, so that the machine can keep the

best condition even after working for many years.

# Beautiful designing based on human using habit. Breakpoint memory function, maintain carving status, maintain

processing time, and keep breakpoint continuation in case of unexpected power outage.

# Emergency stop button, emergency stop in accident, no harm to human body.

# Simple and safe operation, low maintenance cost. To give you a quick understanding of how to operate the machine

safely, free training will be provided at our factory.

# Depending on your requirements, different configurations will be provided. Can provide you with OEM service.

Vacuum table: 6 areas, good absorption for small pieces.

Whole Iron Casting Frame: High rigidity body structure design with material stress analysis and tempering aging

treatment, so that the accuracy of the machine will not be deformed permanently.

High soft wire: to reduce the electromagnetic interference.

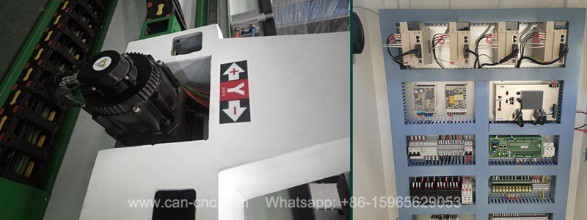

Delta 1kw Servo Motor and Drive: to provide large power for the 1325 ATC CNC woodworking machine.

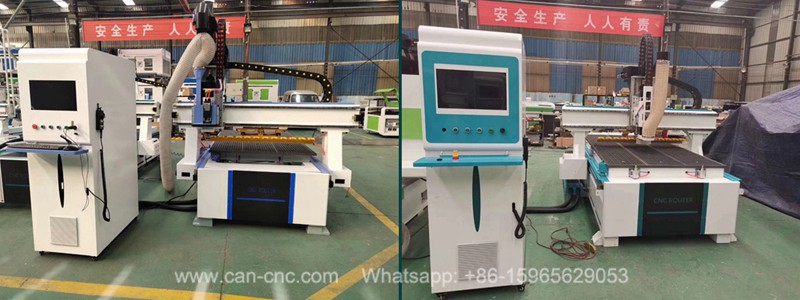

Taiwan LNC MW2200 Controller System: English version system. It's interface is clean and easy to use. It supports

auto loading and unloading material. And wood door mode and cabinet mode could change automatically. After putting

the board in order, click the menu, the machine will work. It also supports internet transfer file and U-disk copy file.

Japan SHIMPO Brand Reducer: It is with high precision, high speed and little noise, and in case of the spindle falling

off suddenly.

Auto oil lubrication system: we can set the adding oil's frequency and quantity by adjusting the relevant parameters

on computer, so it can largely improve the machine's lifetime, saving manpower.

9KW Air Cooling ATC Spindle: Liner tool changer of 12 tool holders, almost zero fault.

Tool Holder Position: Tool change seat is used to change bit tools easily.

Automatic tool setter: It can automatically set the number of knives, without manual operation, it can reduce

human error and be more efficient.

Japanese Panac Square and Slider with higher precision and stability, and long using life.

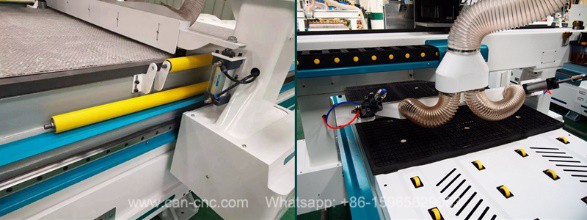

Automatic pushing device: The machine solves the problems of low energy consumption, simple structure and small

wear on the plate through the design of the push block. The motion of the motor and transmission parts is controlled

by the induction device and the control center, so that the energy consumption of the equipment is minimized, and the

purpose is to improve the production efficiency of the sheet metal processing equipment.

Feeding wheel: We have set feeding wheels at the end and side of the machine table, which can help users to easily

feed large plate materials.

5. Machine Maintenance of the ATC CNC Woodworking Machine:

1). Guarantee the use environment.

The engraving CNC machine is a high-tech mechatronics equipment, which has certain requirements for the working

environment;

Avoid equipment that seriously affects the signal transmission of the engraving router, such as strong electricity and

strong magnetism. Such as: welding machine, launch tower, etc.

Use three-core power supply to ensure good grounding and reduce interference.

The voltage is required to be stable, to avoid large fluctuations, it is best to use a voltage stabilizer.

The machine cannot work for a long time in the environment of strong acid and alkali.

2). Care and Maintenance.

The engraving router machine is mostly used in the processing business, and the processing produces a lot of powder

and dust. Pay attention to keep the screw rod, polished rod and other components clean and lubricated in use, clean up

the dust and refuel the transmission parts in time; the operator should clean and refuel in time, and it is strictly forbidden

to unplug and plug it with electricity.

3). The continuous running time of the woodworking engraving machine is required to be less than 10 hours/day; to ensure

the cleanliness of the cooling water and the normal operation of the water pump, the water-cooled spindle motor must

never be short of water, and the cooling water should be replaced regularly to prevent the water temperature from being

too high and circulating. As much water as possible, you can replace the large-capacity water tank.

4). After each use of the woodworking engraving machine, pay attention to cleaning, and the dust on the platform and

the transmission system must be cleaned up; regularly lubricate the X, Y, and Z axes of the transmission system.

6.Our Qualification:

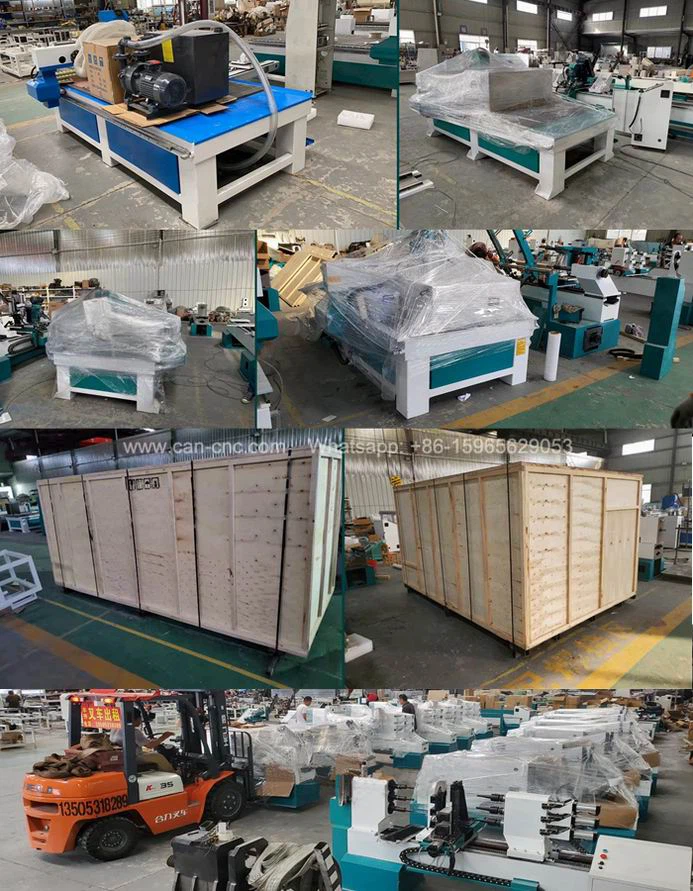

7.Package, Deliver, Shipping:

1. Whole film packaging machine;

2. Anti-collision edging;

3. Fumigation-free plywood box, with iron strapping belt;

4. FCL or LCL can be packed in domestic ports according to customer requirements.

8.FAQ:

Q1. This is the first time I use this kind of machine, is it easy to operate?

There are English manual or guide video that show how to use machine. If there is still have any question, please

contact us by e-mail / skype/ whatsapp/ wechat / phone online service at any time.

Q2. What is warranty time of machine and accessories?

The guarantee period: spindle motor is for half a year, others for one and half year.

Q3. I want to see your machine, where is your factory?

Our factory is located in Jinan City, Shandong Province. you can take flight to Jinan Airport we can pick you.
