Machine Introduction:

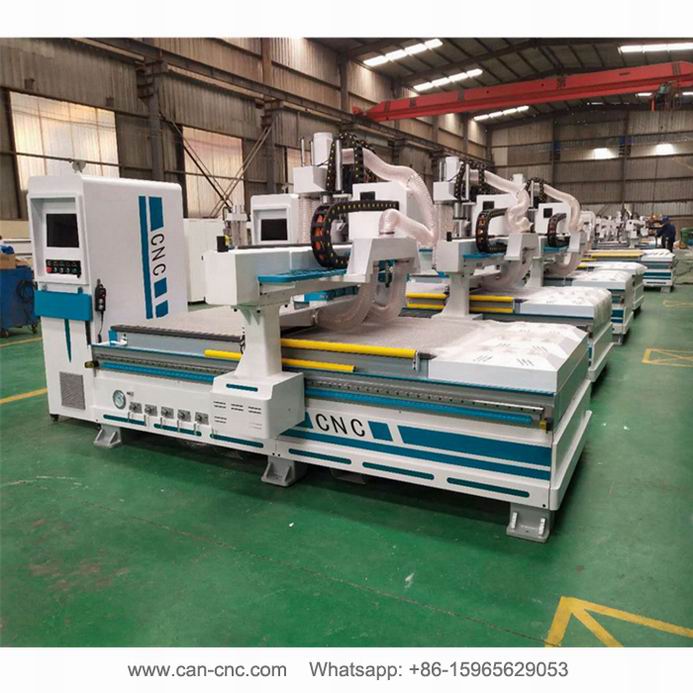

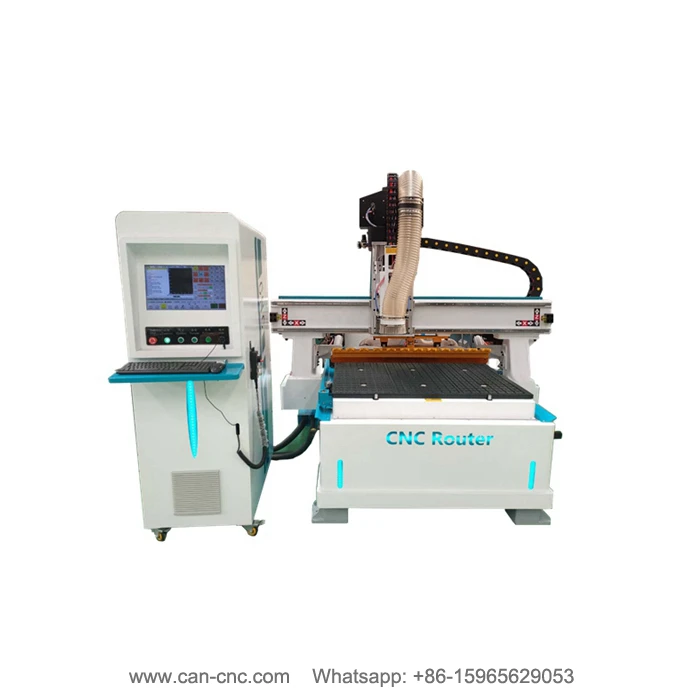

8'x4' Multi function plywood CNC machine, it is a basic ATC CNC router designed to help people get rid of the boring
job of changing tools and save us a lot of time in operation. Once the wood chips are uploaded and the code is set,
the ATC machine does the rest, so woodworking automation is an option.

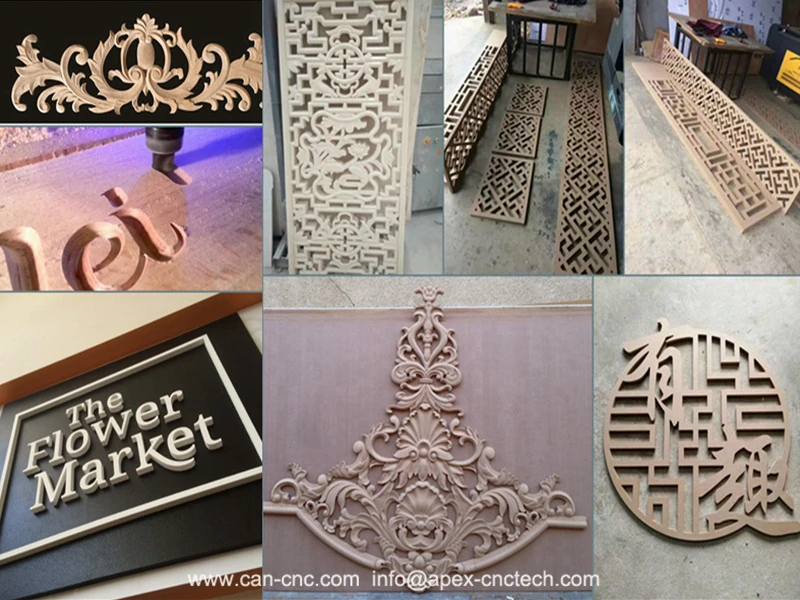

Application:
1.Field: Panel furniture, office furniture, cabinets, closets, wooden doors, beds, wall art panels, etc.
2.Woodworking industry: all kinds of doors and windows cabinets, craft wooden doors, paint-free doors, screens,
craft fan windows, wave boards and other furniture woodworking processing.
3.Handicraft industry: various exquisite patterns and text carvings are carried out on wooden bamboo, artificial marble,
organic board, two-color board, crystal and other materials.
4.Wooden industrial products: sewing machine countertops, electrical cabinet panels, sports equipment, etc.
5.Musical instrument industry: carving musical instruments three-dimensional surface shape cutting.
Advantages:
1. Structure: Integral cast frame, solidity and stable.
2. Accuracy: The use of square guide rails and high-precision imported ball screws ensures smoother movement and
higher precision.
3. Appearance: Simple lines and decorative light strips on the machine are beautiful and attractive.
4. Spindle: Advanced air-cooling brushless spindle, low noise, more power, long-time mass processing.
5. Design: Using a variety of well-designed electrical components to minimize failure rates.
6. Compatible software: It can support Type3/UcancameV9 Software, (Option: Artcam Software).
7. Control cabinet:
European IEC wiring, CE electrical equipment and jacketed cable connections.
The double door electrical enclosure houses and connects all electrical components.
The overall wiring arrangement is marked so that customers can simply explore the cabinet should repairs be required.

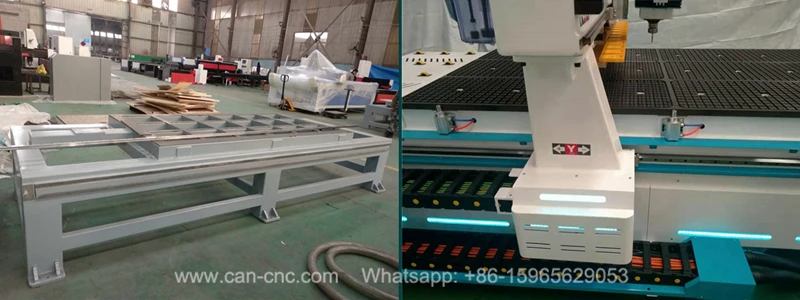

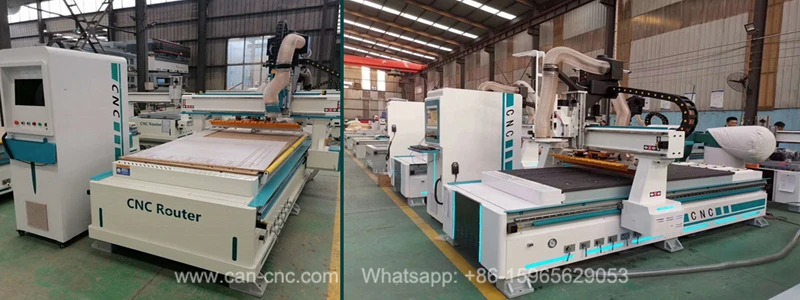

Heavy duty machine frame to make the processing more stable+Gantry movable.
Delta servo motor with large power +servo drive to ensure the fast working speed.

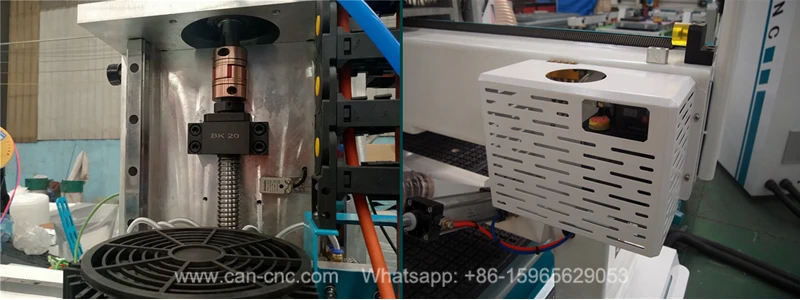

Higher precision ball screw + automatic oil lubrication system.
9kw HQD ATC spindle with 12 liner auto tool changer tools + tool set holder.

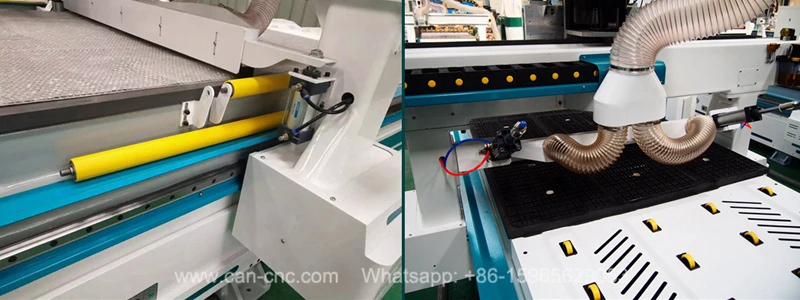

Automatic Tool setting function + Auxiliary feeding wheel.
Auxiliary unloading wheel + dust collector system.
Parameters:
Machine Model | 8'x4' Multi function plywood CNC machine |
X, Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
Z axis travel | 200mm, 300mm, 400mm for option |
Motor and Drive | Delta 1kw Servo Motor and Drive |
Controller | Taiwan LNC MW2200 Controller, Taiwan SYNTEC controller for option |
Spindle | 9kw HQD Auto Tool Change Spindle, ER32 collets |
Tool Magazine | 12 Disc Tool Magazines |
Reducer | Japan SHIMPO Brand |
Rack | Atlanta Brand 1.5mm Grinding rack |
Dustproof and lubricated | The guide rail rack has an all-round dustproof structure |

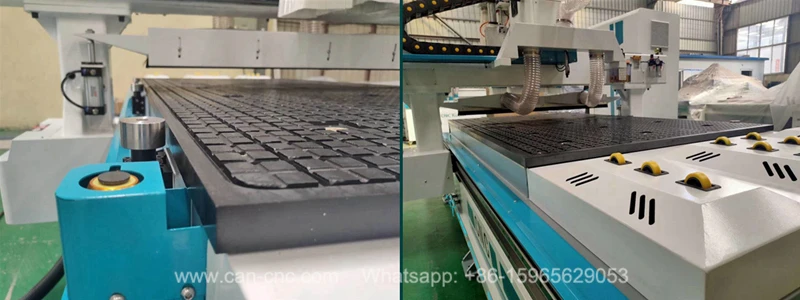

Table | Aluminum T-slot & vacuum work table |
Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
Command language | G Code & M Code |
Package Size | 3700x2200x2100mm |
Traveling speed | 60m/min |
Working speed | 0-25m/min |
Re-positioning accuracy | ±0.03mm |
Working Voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Guarantee | 2 years for free, lifetime warranty |

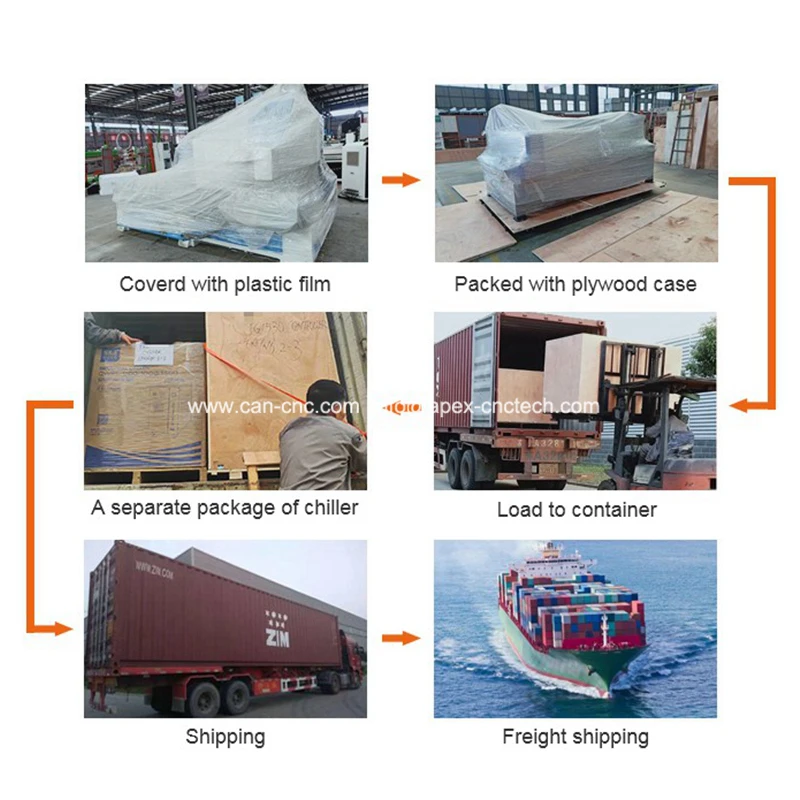

Packages:
Put the machine control cabinet and other machine accessories on the machine table frame,
Then, the multi function plywood CNC machine will be wrapped with PE stretch film to prevent damage in transport.
All CNC machines are packed in plywood boxes, the wooden box will be fixed on the pallet, and the marks will be
attached to the surface of the wooden box. If the machine is custom made, even in larger sizes, the machine needs
to be disassembled and then packaged and loaded into containers.
Our Service:
Before delivery, each machine is inspected by the following steps:
100% quality inspection, that is, each machine has undergone strict mechanical assembly and electrical performance
tests before leaving the factory;
One hundred percent machine testing, that is, each machine is tested well by carving/cutting samples before
dispaching from our factory; we always pursue the service concept of "ALL FOR CUSTOMERS". The advanced
management system and perfect service system ensure that we can provide timely and efficient services,
guarantee the stability of products to a large extent, and provide an effective guarantee for the normal operation of
the system.
