For businesses seeking reliable, high-speed panel machining solutions for wood nesting production, the ATC CNC Router For Nested With Press Rollers stands out as a top-tier option for modern custom furniture fabrication and professional woodworking. This advanced nesting CNC machine integrates automatic tool change (ATC) technology, smart nesting programming, and heavy-duty press roller clamping systems. It effectively solves prevalent industry problems such as panel shifting, time-consuming manual tool replacements, low material yield, and unstable cutting precision. Today, the ATC CNC Router For Nested With Press Rollers has become standard industrial equipment for small-to-medium woodworking workshops and large-scale panel production lines, helping manufacturers maintain stable output while cutting operational costs.

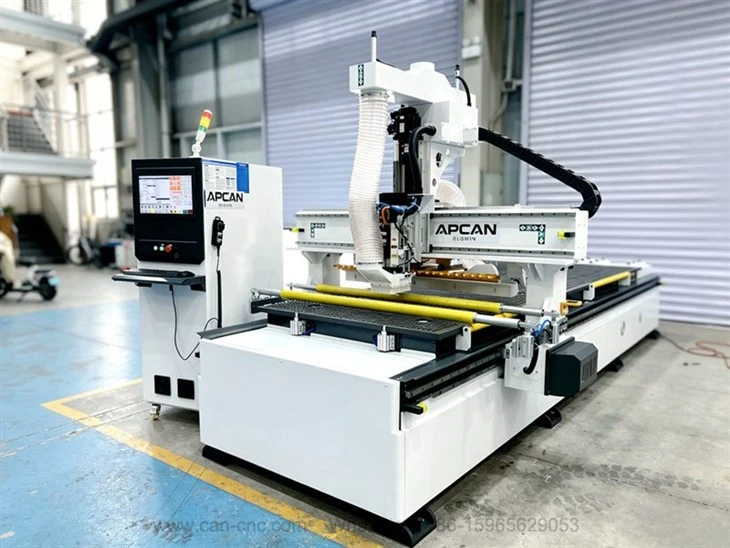

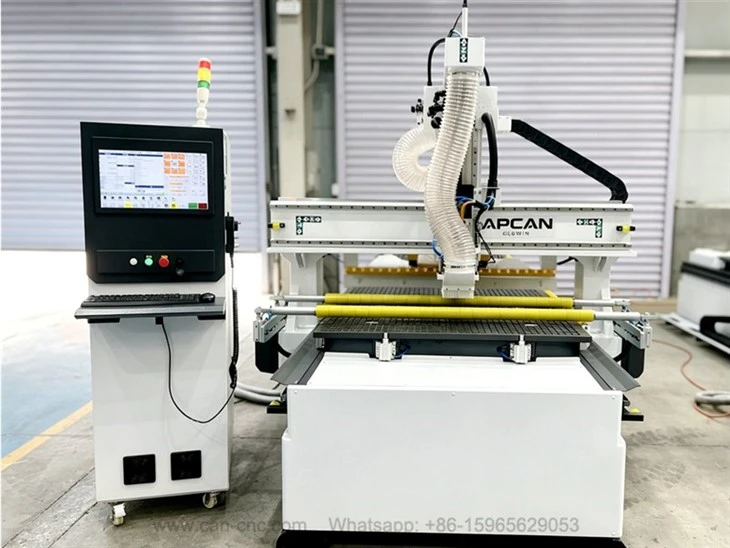

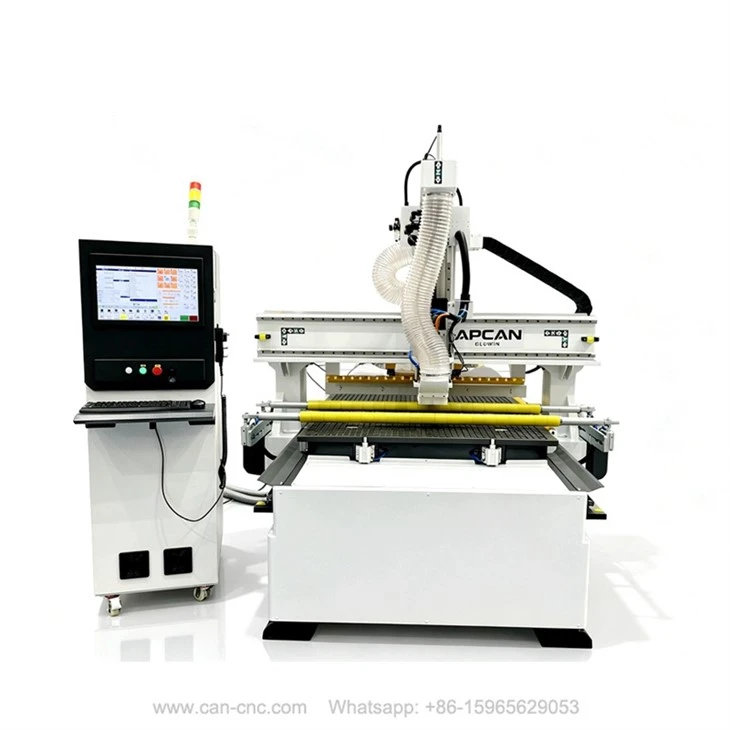

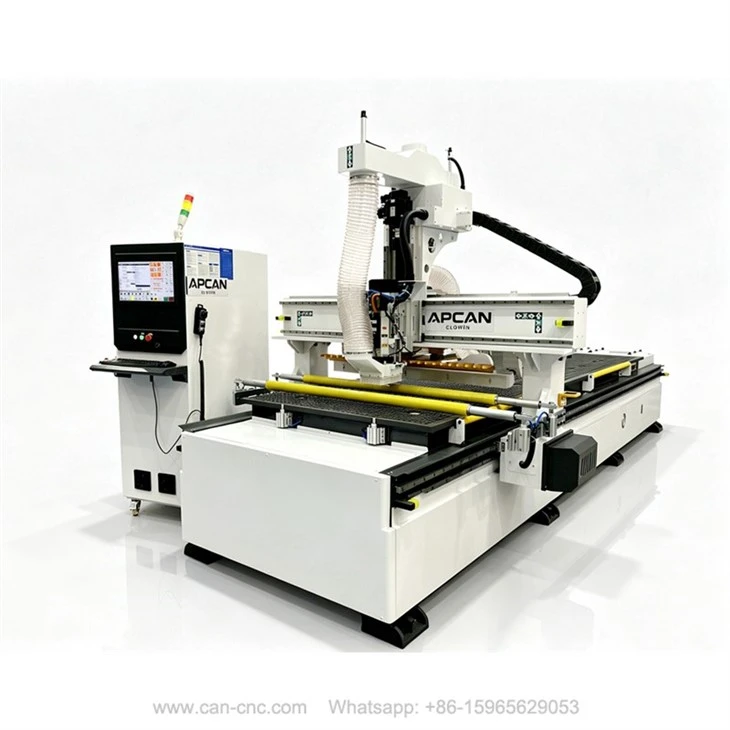

What Is An ATC CNC Router For Nested With Press Rollers?
The ATC CNC Router For Nested With Press Rollers is a professional industrial CNC nesting machine purpose-built for full-panel processing. It handles complete nesting workflows, including precision cutting, grooving, drilling, and edge trimming in one continuous operation. Unlike conventional nesting routers that rely solely on vacuum suction or manual tool changes, this upgraded model features automated tool switching, optimized nesting layout compatibility, and pneumatic press roller positioning. It delivers consistent, high-volume, high-precision results for commercial panel production.
Equipp, zero downtimeperfect syncfirmly secureallystem, sliding,, ensuring every finished panel is accurate, smooth, and defect-freeEquipped with a high-speed disc or linear ATC tool magazine, the ATC CNC Router For Nested With Press Rollers switches cutting, grooving, drilling, and engraving tools automatically in seconds, without pausing production. Its customized press roller system works seamlessly with the vacuum adsorption worktable to firmly fix panels of all thicknesses. This dual fixation structure prevents workpiece bouncing and shifting during high-speed nesting, ensuring every finished panel is precise and defect-free.
Core Benefits of Press Rollers on ATC Nesting CNC Routers
Traditional nesting CNC routers depend entirely on vacuum suction, which struggles to firmly hold thin panels, small offcuts, porous boards, and low-density wood materials. These unstable fixtures often lead to machining errors and wasted materials. The integrated press roller system on the ATC CNC Router For Nested With Press Rollers eliminates these flaws, delivering stable, reliable performance and unique competitive advantages for commercial nesting production.
1. Zero Panel Shift for Superior Nesting Precision
Adjustable pneumatic press rollers distribute even vertical pressure across the entire panel surface, forming a dual stabilization system with the vacuum table. This dual fixation keeps panels completely fixed and vibration-free during high-speed nesting cuts and deep grooving processes. Maintaining a stable positioning accuracy of ±0.03mm per 300mm, the ATC CNC Router For Nested With Press Rollers removes burrs, dimensional deviations, and defective products, fully meeting the strict precision requirements for custom cabinets, wardrobes, and high-grade furniture panels.
2. Full Compatibility With All Panel Types & Thin Materials
Vacuum-only fixation cannot reliablystruggles to stabilize ultra-thin boards, acrylic sheets, and small leftover workpiecesIn contrast, t, resulting in frequent processing failures. In contrast, the flexibly adjustabldesign off theeATC CNC Router For Nested With Press Rollers supports all mainstreammainstream woodworking materials. This includes MDF, plywood, particleboard, melamine board, solid wood composites, and PVC panels. It performs stdelivers stable, precise nesting for both thick structural panels and ultra-thin decorative boards, greatly improving material utilizationfor every nesting layout.
3. Dramatically Boost Nesting Production Efficiency
Frequent mFrequent manual tool changes are a major efficiencya major efficiency bottleneck in traditional nesting production. The advanced advanced ATC automatic tool change system on the ATC CNC Router For Nested With Press Rollers completes tool transitions independently, avoiding unnecessaryavoiding unnecessary machine stops and downtime. Meanwhile, automaticic press roller clamping eliminateliminates manual panelanel alignment and fixwork. The fation work. The fully automated process for cutting, drilling, and grooving boostsboosts daily output by 30% to 50% compared withwith conventional nestingrouters, perfectly supporting large-batchsupporting large-batch custom furniture orders.
4. Reduce Defect Rates & Lower Long-Term Operational Costs
Unstable panel fixation easily triggers tool vibration, premature cutter wear, and even tool breakage, raising defect rates and maintenance costs. The professional during processing. The professional press roller stabilization system of the ATC CNC Router For Nested With Press Rollers ensures smootheady and steady machining. It effectively operations. It effectively protectss spindles and cutting tools,and reduceses equipment failure , and extends machine service life. Combined with prates. Paired with precise intelligent nesting technology, ittechnology, it minimizes raw material waste, lowers overalllowers overall production costs,, and speeds up thees ROI for woodworking manufacturers.
Specifications
|
Machine Model |
APEXTECH 1340(4x13ft) ATC CNC Router for Cabinet Making With Pressing Rollers. |
|
X, Y axis travel |
1300x4000mm, option: 1300*2500mm; 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
|
Z axis travel |
200mm, 300mm, 400mm for option |
|
Motor and Drive |
1.5kw Servo Motor and Drive |
|
Controller |
Taiwan LNC Controller |
|
Spindle |
9kw HQD Auto Tool Change Spindle |
|
Reducer |
Japan SHIMPO Brand |
|
Dustproof and lubricated |
The guide rail rack has an all-round dustproof structure |
|
Table |
Aluminum T-slot & vacuum work table |
|
Compatible software |
Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
|
Command language |
G Code & M Code |
|
Package Size |
3700x2200x2100mm |
|
Traveling speed |
60m/min |
|
Working speed |
0-25m/min |
|
Re-positioning accuracy |
±0.03mm |
|
Working Voltage |
220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
|
Guarantee |
2 years for free, lifetime warranty |
Key Technical Features of ATC CNC Router For Nested With Press Rollers
Industrial-Grade ATC Automatic Tool Change System: Featuring 8–12 precision tool positions, the machine automatically switches tools for all nesting procedures. It realizes one-time forming of complex multi-process panel fabrication with zero manual operation, greatly improving production continuity.
Adjustable Multi-Point Press Roller System: All press rollers support free adjustment of height and horizontal position. They adapt to panels of different sizes and thicknesses, as well as customized nesting areas, delivering strong all-scene compatibility.
Full Intelligent Nesting Software Compatibility: Fully compatible with mainstream nesting programming software. The system automatically optimizes plate layout to raise material utilization and supports batch mass production of customized furniture panels.
Heavy-Duty Integrated Steel Frame: Adopting thickened welded steel structure, the machine boasts excellent shock resistance and structural stability. It supports 24-hour high-load continuous nesting operation without deformation or accuracy loss.
User-Friendly Intelligent Control System: Equipped with one-click operation, automatic fault diagnosis and automatic lubrication functions. It reduces manual operation difficulty and daily equipment maintenance costs for factories.

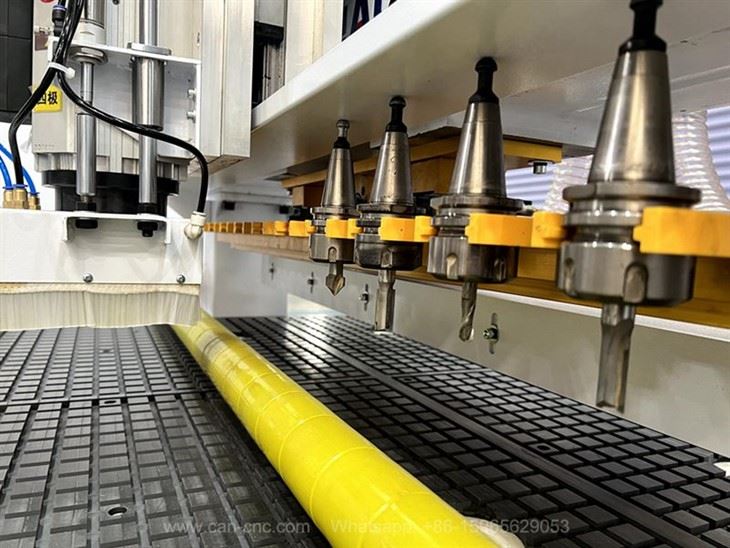

Linear ATC tool magazine with multiple cutters
Machine switches cutters automatically during nested cutting, grooving, drilling and carving. No manual tool‑changing interruption, ideal for high‑volume cabinet production.
ATC spindle and pneumatic dust collection system
Completes cutting, boring and milling tasks. The dust hose takes away wood chips in real‑time, keeps cutting area clean.
Internal wiring of electrical control cabinet
Good heat dissipation, stable anti‑interference performance. Reduce electrical failure rate, support long‑time continuous industrial running.
Spindle servo drive and transmission structure
Adopts high‑precision coupling, realizes smooth Z‑axis movement, low vibration during high‑speed cutting, improves finished surface quality.
CNC control system panel
Rich on‑screen functions: manual movement, program load, auto‑run, spindle start/stop, vacuum switch, tool change control. Operators can run nesting NC programs directly on this HMI to complete automatic cutting and engraving work.
Pneumatic positioning cylinder for woodworking CNC machine
It accurately positions raw material boards before cutting, avoids manual positioning error, ensures consistent processing accuracy for each workpiece.
Pneumatic pressing rollers for fixing workpiece
Firmly compress wood panels on vacuum table during processing. Prevent sheet shifting, suitable for cutting thin and large‑size boards in cabinet nesting work.
Zaxis AC servo motor for CNC router
Delivers strong torque, fast response and precise positioning. Stable high‑speed lifting for spindle head, guarantees accurate depth control for routing and drilling.
Machine mechanical structure
Heavy‑duty linear guide rails and rack‑pinion drive system, delivering smooth, precise movement for X‑axis travel. Reinforced energy chain (cable drag chain) protects cables and air hoses, extending service life.
Side control operation panel of ATC CNC router
Operators can quickly complete simple operations beside the machine, convenient for sheet loading‑unloading and on‑site debugging, improve working efficiency.
Vacuum adsorption table
The segmented vacuum table can open partial vacuum zones according to workpiece size. Strong vacuum holds wood panels firmly without mechanical clamps, preventing shifting during high‑speed cutting.
Auto lubrication oil pump for guide rail maintenance
Regularly inject lubricating oil to linear guide rails and ball screws. Reduce mechanical wear, extend service life of motion parts, lower daily maintenance work.
Common Applications of ATC CNC Router For Nested With Press Rollers
The ATC CNC Router For Nested With Press Rollers features versatile performance and wide industrial applicability. It is widely used in custom furniture manufacturing, precision woodworking craftsmanship, advertising decoration, and composite material processing, covering almost all common panel machining scenarios.
1. Custom Panel Furniture Manufacturing
This is the core application field of the ATC CNC Router For Nested With Press Rollers. It efficiently completes nested cutting, hinge hole drilling, and groove milling for custom wardrobes, cabinets, bookcases, TV cabinets, and paint-free door panels. It perfectly meets modern personalized home furnishing customization needs with high precision and fast order turnaround.
2. High-Precision Woodworking Craft Processing
It is ideal for precision carving, shaping and cutting solid wood parts, wooden decorative partitions, art frames, and wood murals. The stable press roller fixation avoids panel displacement during fine nesting and engraving, ensuring delicate, uniform, and high-quality finished details for woodworking crafts.
3. Advertising & Decorative Material Fabrication
The ATC CNC Router For Nested With Press Rollers excels at processing acrylic, PVC, density board and other advertising composite materials. It is widely used to make 3D signs, display racks, decorative plaques and exhibition props, delivering smooth, burr-free cutting results for commercial advertising products.
4. Composite & Architectural Decoration Processing
The machine supports precision nesting cutting and grooving for wood composite boards and lightweight aluminum-plastic panels. It is extensively applied in architectural interior decoration, furniture matching parts, and customized engineering material processing projects.
Why Invest in An ATC CNC Router For Nested With Press Rollers for Nesting Production?
The custom furniture industry is increasingly demanding higher automation, better material efficiency, and more stable machining accuracy. Traditional manual tool-change routers and vacuum-only nesting machines can no longer meet modern mass production standards. The ATC CNC Router For Nested With Press Rollers solves key pain points of conventional nesting equipment, including thin plate slipping, low processing efficiency, high defect rates, and serious material waste.
By integrating ATC automatic operation, intelligent nesting optimization, and dual vacuum-and-press-roller fixation, this machine standardizes panel production processes. It reduces labor dependence, shortens order delivery cycles, and greatly improves factory production capacity and market competitiveness. For woodworking enterprises planning production line upgrades, the ATC CNC Router For Nested With Press Rollers is the most cost-effective and reliable industrial nesting solution.
FAQs
Q1: Do press rollers work together with the vacuum table on this nesting CNC router?
Yes. The ATC CNC Router For Nested With Press Rollers adopts a dual fixation system, where press rollers and vacuum adsorption work simultaneously. This dual stabilization design reliably fixes thin panels, small workpieces, and porous boards that cannot be stably held by vacuum suction alone.
Q2: What materials can an ATC CNC Router For Nested With Press Rollers process?
This nesting machine supports almost all common woodworking and advertising materials. The list includes MDF, plywood, particleboard, melamine board, solid wood, wood composites, PVC, and acrylic, covering all mainstream panel nesting processing requirements.
Q3: Is the ATC system on this nesting CNC router stable for continuous industrial use?
Absolutely. The ATC CNC Router For Nested With Press Rollers is equipped with industrial-grade ATC tool magazines and high-precision spindles. It features fast, stable tool changes and ultra-low failure rates, supporting 24-hour uninterrupted industrial nesting production with excellent durability and operational stability.
Whether you run a small custom woodworking workshop or a large-scale furniture manufacturing plant, the ATC CNC Router For Nested With Press Rollers delivers reliable high-precision and high-efficiency nesting production. Its integrated automatic tool change system, intelligent nesting layout technology, and stable press roller clamping system optimize every production step. It effectively reduces overall manufacturing costs and creates long-term economic benefits for all types of wood processing enterprises.
